Play manufacturer video for IMC/Teddy CFT-3096-SQ Stainless Steel Floor Trough, 96"W x 30"D x 4" Deep, Square Grid Grating, Non-Anti-SplashIMC/Teddy CFT-3096-SQ Stainless Steel Floor Trough, 96"W x 30"D x 4" Deep, Square Grid Grating, Non-Anti-Splash

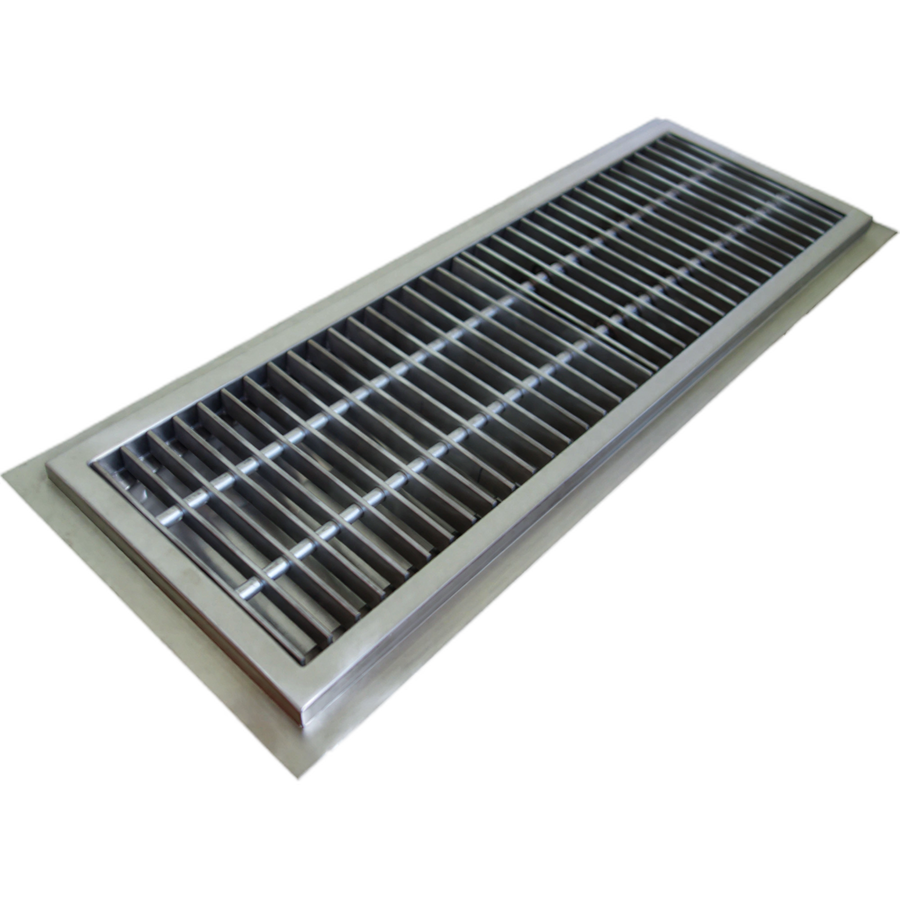

The IMC/Teddy CFT-3096-SQ is a 96 in wide by 30 in deep floor trough with a 4 in deep receptacle, square grid grating, and a non-anti-splash pan.
It features 16-gauge 304 stainless steel construction with a brushed satin finish, a stainless steel beehive strainer, and a 4 in OD tailpiece.
- One-piece CFT floor trough construction
- Integral pitch toward the waste outlet
- Integral coved corners and recessed flange
- TIG-welded joints
Overall Dimensions:
96.0"W x 30.0"D x 7.0"HProduct Weight:
280.0 lbStainless steel construction
Constructed from 16-gauge 304 stainless steel.
Square grid grating
Specified with SQ square grid grating.
Non-anti-splash pan
The pan type is specified as non-anti-splash.
Drain assembly
Includes a stainless steel beehive strainer and 4 in OD tailpiece.
Integrated drainage design
The CFT design includes an integral pitch toward the waste outlet and coved corners.
Brushed satin finish
Exposed surfaces have a brushed satin finish.
Recessed flange
The recessed flange supports floor tile and provides a grout pocket.
TIG-welded joints
The joints are TIG welded.
