Play manufacturer video for IMC/Teddy ASFT24-29-SG-ADA Stainless Steel Anti-Splash Floor Drain Trough, Subway Grating, 29 ft x 24 in x 6 inIMC/Teddy ASFT24-29-SG-ADA Stainless Steel Anti-Splash Floor Drain Trough, Subway Grating, 29 ft x 24 in x 6 in

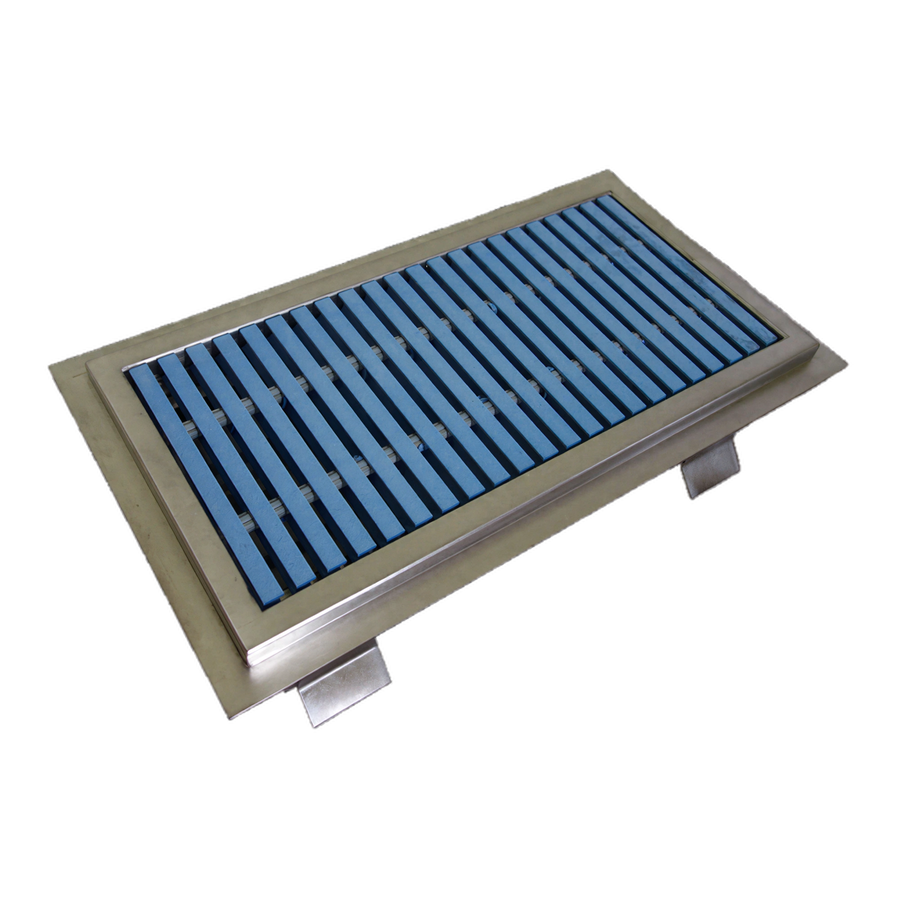

The IMC/Teddy ASFT24-29-SG-ADA is an anti-splash floor trough constructed from 14 ga Type 300 series stainless steel. It measures 348 inches wide by 24 inches deep by 6 inches high.
Its stainless steel SG-ADA subway-style grating uses 1/2-inch bar spacing. Integral coved corners, a pitch toward the waste outlet, and a recessed outer flange support drainage and floor-tile installation.
- Anti-splash design directs splashing wastewater toward the inside corners of the trough.
- Joints are TIG welded, and exposed surfaces have a brush satin finish.
- Specified for commercial and institutional buildings or large food preparation facilities.
Overall Dimensions:
348.0"W x 24.0"D x 6.0"HProduct Weight:
1044.0 lbStainless steel construction
The trough is constructed from 14 ga Type 300 series stainless steel.
Anti-splash design
The anti-splash feature directs splashing wastewater to the inside corners of the trough.
SG-ADA subway-style grating
The product uses stainless steel subway-style grating with SG-ADA grating bars spaced 1/2 in apart.
Integrated drainage design
Integral coved corners and a pitch toward the waste outlet support drainage.
Recessed installation flange
The recessed outer flange supports floor tile and provides a grout pocket.
Welded brush satin finish
Joints are TIG welded, and exposed surfaces have a brush satin finish.
Commercial foodservice application
The ASFT floor trough is specified for commercial and institutional buildings or large food preparation facilities.
