IMC/Teddy ASFT24-19-SG-ADA Anti-Splash Stainless Steel Floor Trough with Drain, 228"W x 24"D x 6" Deep, Subway Grating

SKU: ASFT24-19-SG-ADA
$20,727.60
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations

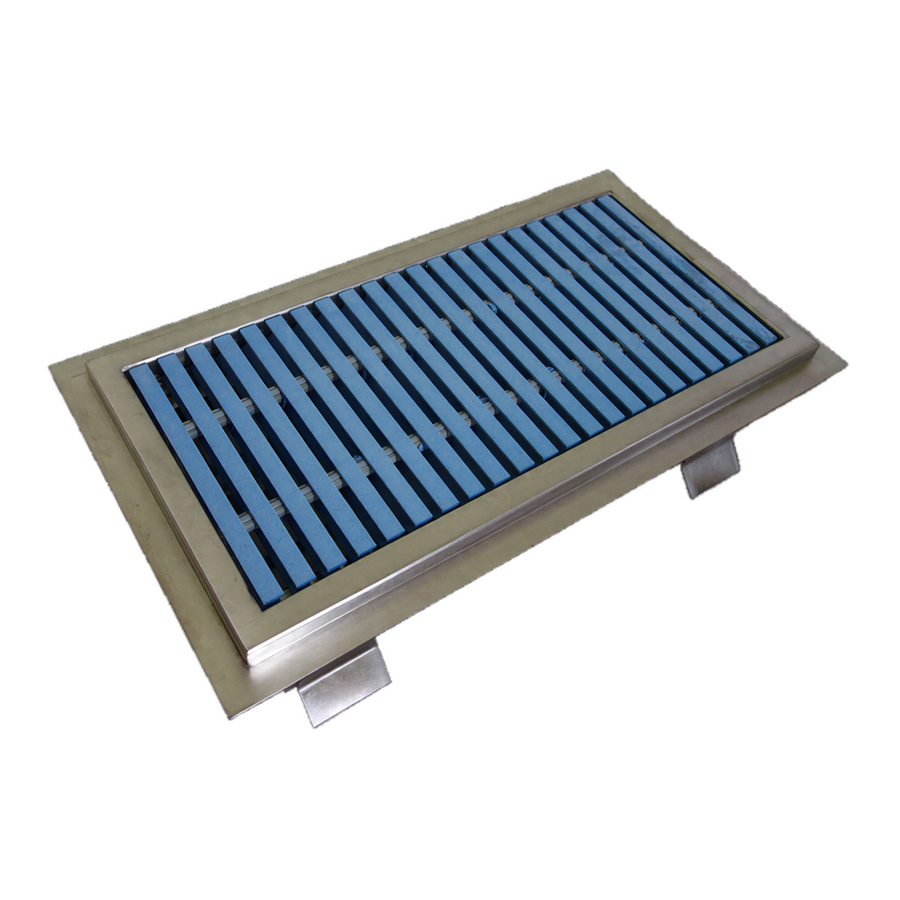

The ASFT24-19-SG-ADA is an anti-spill floor trough constructed from 14-gauge 304 stainless steel, with a drain and SG-ADA subway grating.

  • Anti-spill design: Directs splashing wastewater toward the inside corners of the trough.
  • Drainage: The trough is integrally pitched toward the waste outlet.
  • Construction: Coved corners, a recessed outer flange, and TIG-welded leak-proof joints.
  • Finish: Exposed surfaces have a brushed satin finish.
  • Grating: SG-ADA subway-style stainless steel grating with bars spaced 1/2 inch apart.

Overall Dimensions:

228.0"W x 24.0"D x 6.0"H

Product Weight:

684.0 lb

Anti-spill design

Directs splashing wastewater to the inside corners of the trough.

Stainless steel construction

Constructed from 14-gauge 304 stainless steel.

Integral drainage pitch

The trough is integrally pitched toward the waste outlet.

Coved corners

Horizontal corners are coved to support drainage.

Recessed outer flange

Supports floor tile and provides a grout pocket.

SG-ADA subway grating

Includes SG-ADA subway-style stainless steel grating with 1/2-inch bar spacing.

Welded construction

Joints are TIG welded and leak-proof.

Brushed satin finish

Exposed surfaces are finished in brushed satin.

Overall width 228 in
Overall depth 24 in
Overall height 6 in
Pan depth 6 in
Trough material 14-gauge 304 stainless steel
Grate type SG-ADA subway-style grating
Grate construction Stainless steel
Grate bar spacing 1/2 in
Drain Included
Product weight 684 lb

Certifications & Compliance

Documents

PDF Cutsheet PDF Download PDF Seepage flange installation manual PDF Download PDF Floor troughs brochure PDF Download PDF Floor trough installation manual PDF Download

Frequently Asked Questions

The trough is 228 inches wide by 24 inches deep and 6 inches high.
It is constructed from 14-gauge 304 stainless steel.
Yes. It is specified with a drain and SG-ADA subway grating.
It directs splashing wastewater to the inside corners of the trough.
The model includes SG-ADA subway-style stainless steel grating with bars spaced 1/2 inch apart.
The listed product weight is 684 lb.
