IMC/Teddy

IMC/Teddy ASFT-30108-CH-ADA Anti-Splash Stainless Steel Floor Trough, 108"W x 30"D, 6" Deep

SKU: ASFT-30108-CH-ADA
$8,938.80
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations

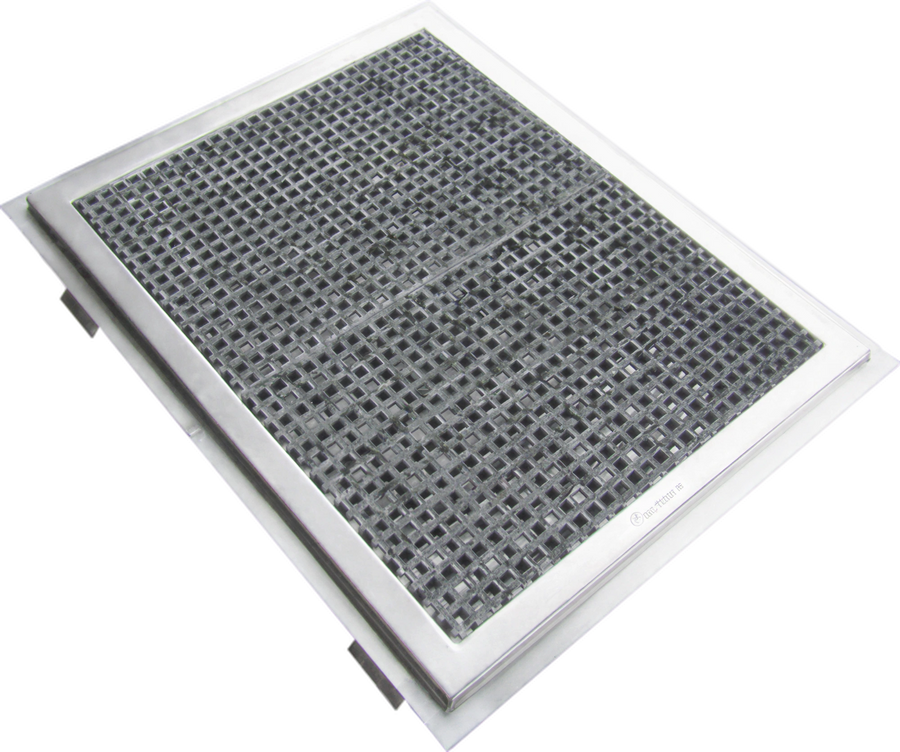

ASFT-30108-CH-ADA is an anti-splash stainless steel floor trough with a 108-inch width, 30-inch depth, and 6-inch-deep receptacle.

  • Constructed from 14-gauge Type 304 stainless steel with a brushed satin finish.
  • The CH-ADA grating uses molded squares and SGF polyester resin in grey.
  • Specified with two 4-inch OD tailpieces and a stainless steel beehive strainer.

Overall Dimensions:

108.0"W x 30.0"D x 12.25"H

Product Weight:

468.0 lb

Anti-splash design

The anti-spill feature directs splashing water to the inside of the trough.

Stainless steel construction

The trough is constructed from 14-gauge Type 304 stainless steel.

CH-ADA grating

The specified grating uses molded squares and SGF polyester resin in grey.

Drain components

The product is specified with two 4-inch OD tailpieces and a stainless steel beehive strainer.

Brushed satin finish

Exposed product surfaces are specified with a brushed satin finish.

Pan type Anti-splash
Trough construction 14-gauge Type 304 stainless steel
Overall width 108 in
Overall depth 30 in
Receptacle depth 6 in
Overall height 12.25 in
Tailpieces (2) 4 in OD
Strainer Stainless steel beehive strainer
Grating CH-ADA; molded squares and SGF polyester resin, grey
Finish Brushed satin

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Catalog page PDF Download PDF Floor trough installation manual PDF Download PDF Seepage flange installation manual PDF Download

Frequently Asked Questions

The product measures 108 inches wide by 30 inches deep, with an overall height of 12.25 inches.
The receptacle is 6 inches deep.
It is constructed from 14-gauge Type 304 stainless steel.
The product is specified with CH-ADA grating made from molded squares and SGF polyester resin in grey.
The product has two 4-inch OD tailpieces and a stainless steel beehive strainer.
Yes. NSF is an authoritative certification for this product.
The product is Made in USA.
