Play manufacturer video for IMC/Teddy ASFT-2472-CH Anti-Splash Stainless Steel Floor Trough with Beehive Strainer, 72"W x 24"D x 6" DeepIMC/Teddy ASFT-2472-CH Anti-Splash Stainless Steel Floor Trough with Beehive Strainer, 72"W x 24"D x 6" Deep
SKU: ASFT-2472-CH
$5,606.40
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout

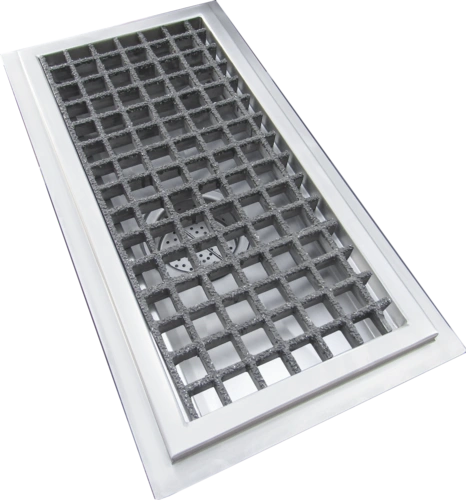

ASFT-2472-CH is an anti-splash floor trough with a 6-inch-deep receptacle, 14 ga Type 304 stainless steel construction, and a brushed satin finish.
- Measures 72 inches wide by 24 inches deep with a 12.25-inch overall height.
- Specified with one 4-inch OD tailpiece and a stainless steel beehive strainer.
- CH grating uses molded squares and SGF polyester resin in grey.
Overall Dimensions:
72.0"W x 24.0"D x 12.25"HProduct Weight:
264.0 lbAnti-splash design
The trough is specified as an anti-splash floor trough, with the anti-spill feature directing splashing water into the trough.
Stainless steel construction
Constructed from 14 ga Type 304 stainless steel.
CH grating
The CH grating is specified as molded squares and SGF polyester resin in grey.
Beehive strainer
Includes a stainless steel beehive strainer.
Tailpiece
Specified with one 4 in OD tailpiece.
Brushed satin finish
The stainless steel trough has a brushed satin finish.
Pan type
Anti-splash
Trough construction
14 ga Type 304 stainless steel
Finish
Brushed satin
Receptacle depth
6 in
Tailpiece
1 x 4 in OD
Strainer
Stainless steel beehive strainer
Grating
CH molded squares and SGF polyester resin, grey
Width
72 in
Depth
24 in
Overall height
12.25 in
Weight
264 lb
Certifications & Compliance
Frequently Asked Questions
The floor trough is 72 in wide by 24 in deep, with a 12.25 in overall height.
The receptacle is 6 in deep.
The trough is made from 14 ga Type 304 stainless steel and has a brushed satin finish.
The product is specified with a stainless steel beehive strainer.
It is specified with one 4 in OD tailpiece.
The CH grating uses molded squares and SGF polyester resin in grey.
Yes. NSF is listed for the product.
