IMC/Teddy ASFT-2196-CH-ADA Anti-Spill Stainless Steel Floor Trough, 96"W x 21"D x 6" Deep

SKU: ASFT-2196-CH-ADA
$7,377.60
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The IMC/Teddy ASFT-2196-CH-ADA is an anti-spill stainless steel floor trough with a 6-inch-deep receptacle, 96-inch width, and 21-inch depth.

  • Construction: 14-gauge Type 304 stainless steel with a brushed satin finish.
  • Drain components: One 4-inch OD tailpiece and a stainless steel beehive strainer.
  • CH-ADA specification: Molded squares and SGF polyester resin in grey.

Overall Dimensions:

96.0"W x 21.0"D x 12.25"H

Product Weight:

352.0 lb

Anti-spill design

Directs splashing water to the inside of the trough.

Stainless steel construction

Made from 14-gauge Type 304 stainless steel.

Drain components

Specified with one 4 in OD tailpiece and a stainless steel beehive strainer.

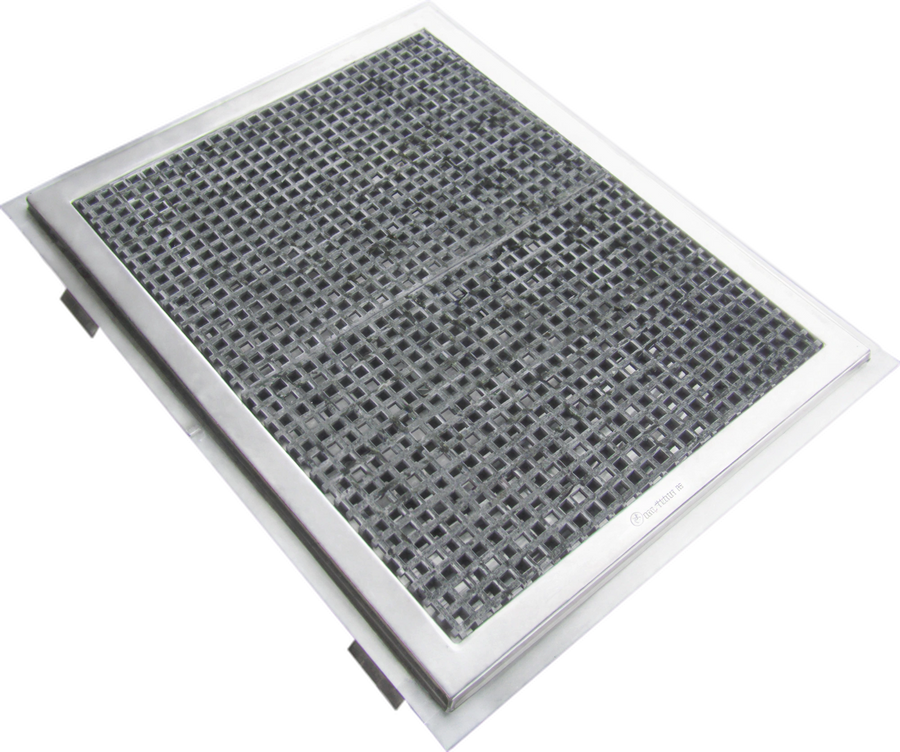

CH-ADA grating specification

Molded squares and SGF polyester resin in grey.

Brushed satin finish

The exposed finish is specified as brushed satin.

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations
Product type Anti-spill floor trough
Width 96 in
Depth 21 in
Receptacle depth 6 in
Construction 14 ga Type 304 stainless steel
Finish Brushed satin
Tailpiece (1) 4 in OD
Strainer Stainless steel beehive strainer
CH-ADA grating material Molded squares and SGF polyester resin, grey
Certification NSF
Country of origin Made in USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Catalog page PDF Download PDF Seepage flange installation manual PDF Download PDF Floor trough installation manual PDF Download

Frequently Asked Questions

The trough is 96 in wide, 21 in deep, and 12.25 in high, with a listed weight of 352 lb.
The receptacle is 6 in deep.
It is made from 14-gauge Type 304 stainless steel and has a brushed satin finish.
The product specification lists one 4 in OD tailpiece and a stainless steel beehive strainer.
It directs splashing water to the inside of the trough.
The CH-ADA specification identifies molded squares and SGF polyester resin in grey.
Yes. NSF is listed for the exact product.
The exact product specifications list Made in USA.
