IMC/Teddy ASFT-1860-CH-ADA Anti-Spill Stainless Steel Floor Trough, ADA, 60"W x 18"D, 6" Deep

SKU: ASFT-1860-CH-ADA
$4,614.00
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations

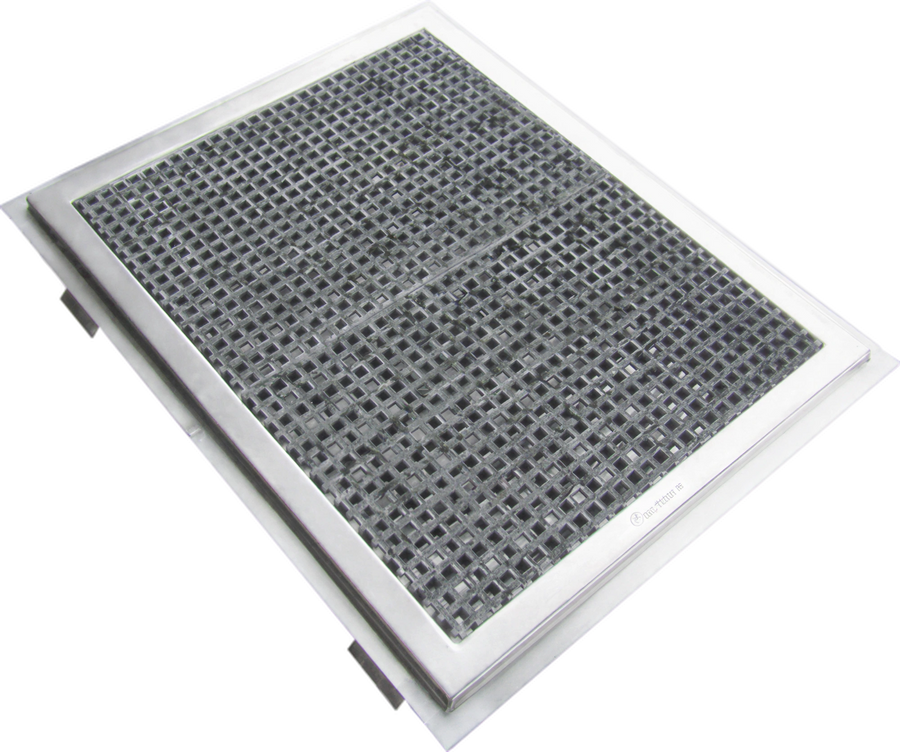

The ASFT-1860-CH-ADA is an anti-spill floor trough with a 6 in deep receptacle, 14 ga Type 304 stainless steel construction, and a brushed satin finish.

The exact configuration includes one 4 in OD tailpiece, a stainless steel beehive strainer, and gray CH-ADA molded squares with SGF polyester resin.

  • 60 in wide by 18 in deep
  • NSF listed and made in the USA

Overall Dimensions:

60.0"W x 18.0"D x 12.25"H

Product Weight:

180.0 lb

Anti-spill design

The trough is specified with an anti-spill pan type that directs splashing water into the trough.

Stainless steel construction

Constructed from 14 ga Type 304 stainless steel with a brushed satin finish.

CH-ADA grating configuration

The exact configuration uses CH-ADA molded squares and SGF polyester resin in gray.

Waste connection

Includes one 4 in OD tailpiece.

Beehive strainer

Includes a stainless steel beehive strainer.

NSF and U.S. origin

The product is NSF listed and made in the USA.

Product type Anti-spill floor trough
Trough width 60 in
Trough depth 18 in
Receptacle depth 6 in
Construction 14 ga Type 304 stainless steel
Finish Brushed satin
Tailpiece 1 × 4 in OD
Strainer Stainless steel beehive strainer
Grating construction CH-ADA molded squares and SGF polyester resin
Grating color Gray
Listing NSF
Country of origin Made in USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Catalog page PDF Download PDF Floor trough installation manual PDF Download PDF Seepage flange installation manual PDF Download

Frequently Asked Questions

The trough is 60 in wide by 18 in deep, with a listed height of 12.25 in. Its receptacle is 6 in deep.
It is constructed from 14 ga Type 304 stainless steel and has a brushed satin finish.
The exact configuration includes one 4 in OD tailpiece and a stainless steel beehive strainer.
Yes. The ASFT-1860-CH-ADA uses the CH-ADA configuration with molded squares and SGF polyester resin in gray.
Yes. The product specifications identify it as NSF and made in the USA.
