IMC/Teddy

IMC/Teddy ASFT-1824-CH-ADA Anti-Splash Stainless Steel Floor Trough, 24"W x 18"D, 6" Deep, 4" OD Tailpiece

SKU: ASFT-1824-CH-ADA
$2,773.80
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The IMC/Teddy ASFT-1824-CH-ADA is an anti-splash floor trough with a 6 in deep receptacle, 14-gauge Type 304 stainless steel construction, and a brushed satin finish.

  • Measures 24 in wide by 18 in deep.
  • Includes a 4 in OD tailpiece and stainless steel beehive strainer.
  • CH-ADA grating uses molded squares and SGF polyester resin in gray.
  • Made in the USA and NSF listed.

Overall Dimensions:

24.0"W x 18.0"D x 12.25"H

Product Weight:

72.0 lb

Anti-splash design

The anti-spill feature directs splashing water to the inside of the trough.

Stainless steel construction

The trough is constructed from 14-gauge Type 304 stainless steel.

Deep receptacle

The receptacle is 6 in deep.

Tailpiece

Includes a 4 in OD tailpiece.

Beehive strainer

Specified with a stainless steel beehive strainer.

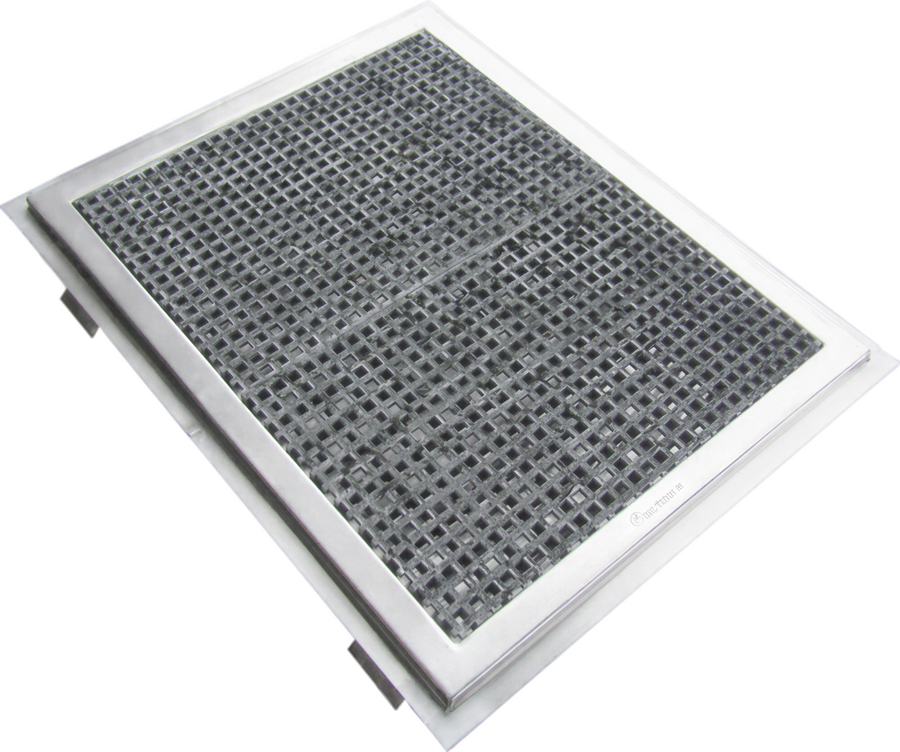

CH-ADA grating

The grating uses molded squares and SGF polyester resin in gray.

Brushed satin finish

Exposed stainless steel surfaces have a brushed satin finish.

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations
Pan type Anti-splash
Trough construction 14-gauge Type 304 stainless steel
Receptacle depth 6 in
Overall width 24 in
Overall depth 18 in
Tailpiece diameter 4 in OD
Strainer Stainless steel beehive
Finish Brushed satin
Grating CH-ADA molded squares and SGF polyester resin, gray

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Catalog page PDF Download PDF Seepage flange installation manual PDF Download PDF Floor trough installation manual PDF Download

Frequently Asked Questions

The trough is 24 in wide, 18 in deep, and 12.25 in high.
The receptacle is 6 in deep.
It is made of 14-gauge Type 304 stainless steel with a brushed satin finish.
It has a 4 in OD tailpiece.
A stainless steel beehive strainer is specified.
It uses CH-ADA grating made with molded squares and SGF polyester resin in gray.
