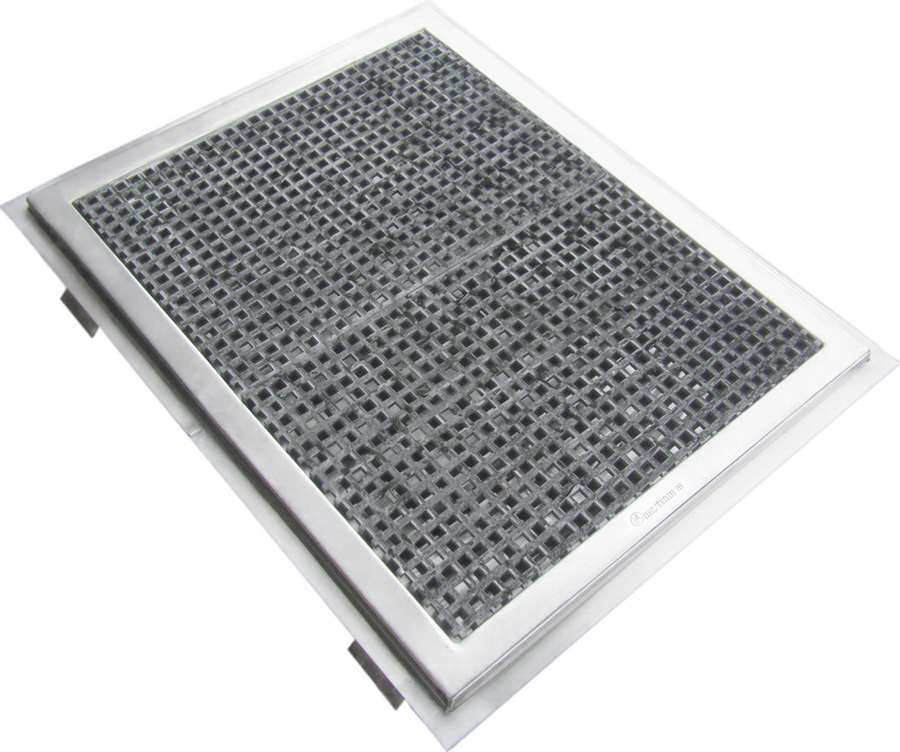

The IMC/Teddy ASFT-1584-CH-ADA is an anti-spill stainless steel floor trough measuring 84 inches wide by 15 inches deep, with a 6-inch-deep receptacle.

  • The anti-spill feature directs splashing water into the inside of the trough.
  • Constructed of 14-gauge Type 304 stainless steel with a brushed satin finish.
  • Includes CH-ADA molded squares and SGF polyester resin grating in grey, a stainless steel beehive strainer, and one 4-inch OD tailpiece.

Overall Dimensions:

84.0"W x 15.0"D x 12.25"H

Product Weight:

252.0 lb

Anti-spill design

Directs splashing water into the inside of the trough.

Stainless steel construction

Built with 14-gauge Type 304 stainless steel and a brushed satin finish.

Deep receptacle

Provides a 6-inch-deep receptacle.

CH-ADA grating

Uses molded squares and SGF polyester resin in grey.

Drainage design

The ASFT trough design includes an integral pitch toward the waste outlet.

Drain components

Specified with a stainless steel beehive strainer and one 4-inch OD tailpiece.

Trough type Anti-spill
Material 14 ga Type 304 stainless steel
Finish Brushed satin
Receptacle depth 6 in
Tailpiece 1 x 4 in OD
Strainer Stainless steel beehive strainer
Grating CH-ADA molded squares and SGF polyester resin, grey
Origin Made in USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Catalog page PDF Download PDF Seepage flange installation manual PDF Download PDF Floor trough installation manual PDF Download

Frequently Asked Questions

The trough is 84 inches wide, 15 inches deep, and 12.25 inches high.
The receptacle is 6 inches deep.
It is made from 14-gauge Type 304 stainless steel with a brushed satin finish.
It directs splashing water into the inside of the trough.
The product has a stainless steel beehive strainer and one 4-inch OD tailpiece.
The authoritative product information lists NSF and Made in USA.
