IMC/Teddy

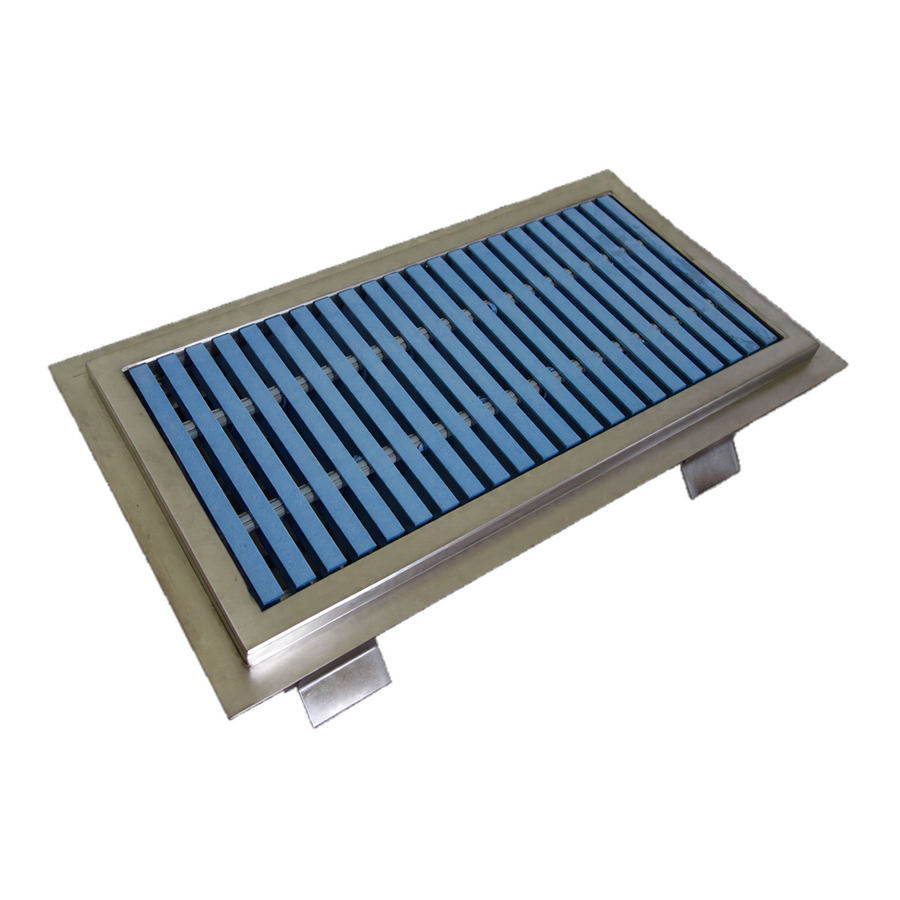

IMC/Teddy ASFT-1560-SG-ADA Anti-Splash Stainless Steel Floor Trough, 60"W x 15"D x 6" Deep, Subway Grating

SKU: ASFT-1560-SG-ADA
$5,088.60
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations

The ASFT-1560-SG-ADA is a 60-inch-wide anti-spill floor trough with a 6-inch-deep receptacle and SG-ADA subway grating.

  • Constructed from 14 gauge 304 stainless steel with a brushed satin finish.
  • Integral pitch and coved corners direct waste toward the outlet.
  • Specified with one 4-inch OD tailpiece and a stainless steel beehive strainer.
  • The recessed outer flange supports floor tile and provides a grout pocket.

Overall Dimensions:

60.0"W x 15.0"D x 12.25"H

Product Weight:

180.0 lb

Anti-spill design

The anti-spill feature directs splashing waste water toward the inside corners of the trough.

Integral drainage pitch

The trough is integrally pitched toward the waste outlet.

Stainless steel construction

The trough uses 14 ga 304 stainless steel with a brushed satin finish.

SG-ADA subway grating

The specified grating is SG-ADA subway-style stainless steel grating with 1/2-inch bar spacing.

Tile-supporting flange

A recessed outer flange supports floor tile and provides a grout pocket.

Drain components

The specification includes one 4-inch OD tailpiece and a stainless steel beehive strainer.

Overall width 60 in.
Overall depth 15 in.
Overall height 12.25 in.
Receptacle depth 6 in.
Product weight 180 lb
Material 14 ga 304 stainless steel
Finish Brushed satin
Pan type Anti-splash
Grating SG-ADA subway-style stainless steel grating
Tailpiece (1) 4 in. OD
Strainer Stainless steel beehive strainer

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Floor troughs brochure PDF Download PDF Seepage flange installation manual PDF Download PDF Floor trough installation manual PDF Download

Frequently Asked Questions

The floor trough is 60 inches wide, 15 inches deep and 12.25 inches high, with a 6-inch-deep receptacle.
It is constructed from 14 gauge 304 stainless steel with a brushed satin finish.
This model uses SG-ADA subway-style stainless steel grating.
The product is specified with one 4-inch OD tailpiece and a stainless steel beehive strainer.
Yes. NSF and Made in USA are identified for this exact product.
