IMC/Teddy ASFT-15108-CH-ADA Anti-Splash Stainless Steel Floor Trough, 108"W x 15"D, 6" Deep Receptacle

SKU: ASFT-15108-CH-ADA
$7,462.20
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations

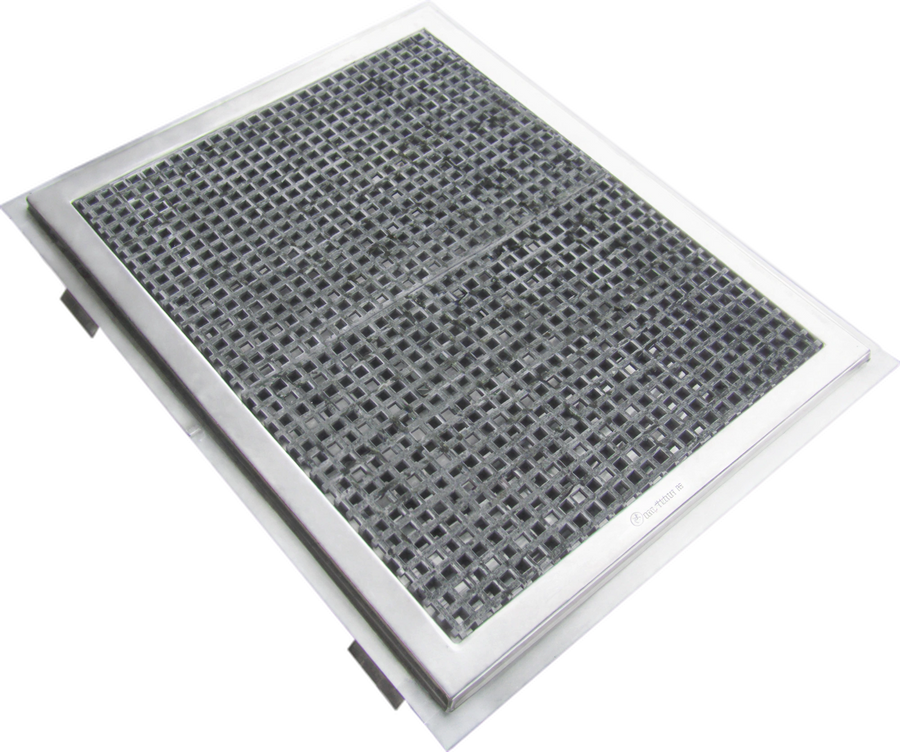

The IMC/Teddy ASFT-15108-CH-ADA is an anti-splash stainless steel floor trough with a 6 in deep receptacle, CH-ADA molded-square and SGF polyester resin grating, and a brushed satin finish.

  • 108 in wide by 15 in deep
  • 14 ga Type 304 stainless steel trough construction
  • Two 4 in OD tailpieces
  • Stainless steel beehive strainer
  • Made in USA and NSF

Overall Dimensions:

108.0"W x 15.0"D x 12.25"H

Product Weight:

324.0 lb

Anti-splash construction

The anti-splash design directs splashing water to the inside of the trough.

Stainless steel construction

The trough is constructed from 14 ga Type 304 stainless steel.

CH-ADA grating

The CH-ADA grating uses molded squares and SGF polyester resin in grey.

Drainage components

The product is specified with two 4 in OD tailpieces and a stainless steel beehive strainer.

Brushed satin finish

The stainless steel trough has a brushed satin finish.

Pan type Anti-splash
Receptacle depth 6 in
Trough construction 14 ga Type 304 stainless steel
Finish Brushed satin
Drain tailpieces (2) 4 in OD
Strainer Stainless steel beehive strainer
CH-ADA grating construction Molded squares and SGF polyester resin
Grating color Grey

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Catalog page PDF Download PDF Floor trough installation manual PDF Download PDF Seepage flange installation manual PDF Download

Frequently Asked Questions

The product is 108 in wide, 15 in deep, and 12.25 in high, with a listed weight of 324 lb.
The receptacle is 6 in deep.
The product is specified with two 4 in OD tailpieces and a stainless steel beehive strainer.
The trough is 14 ga Type 304 stainless steel. The CH-ADA grating uses molded squares and SGF polyester resin in grey.
