IMC/Teddy

IMC/Teddy ASFT-1248-PFG Anti-Splash Stainless Steel Floor Trough, 48"W x 12"D, 6" Deep, Fiberglass Grate

SKU: ASFT-1248-PFG
$3,478.20
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

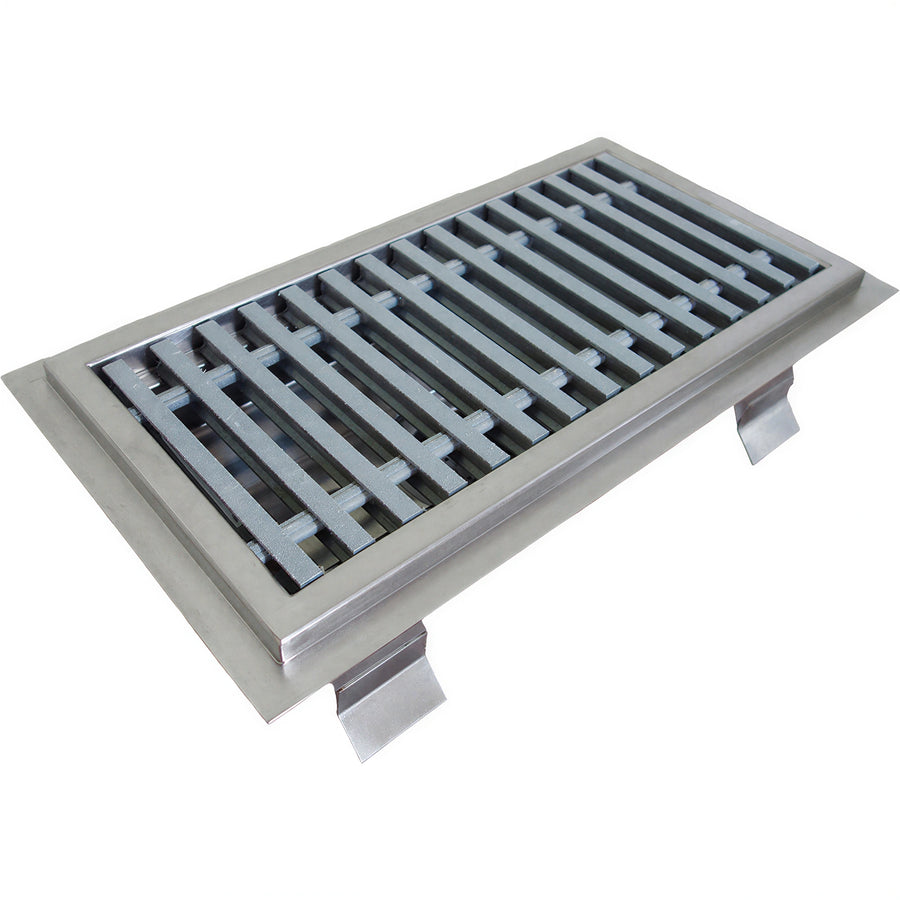

The ASFT-1248-PFG is an anti-splash floor trough measuring 48 inches wide by 12 inches deep, with a 6-inch-deep receptacle and gray PFG pultruded fiberglass grating.

It is constructed from 14-gauge 304 stainless steel with a brushed satin finish and includes one 4-inch OD tailpiece and a stainless steel beehive strainer.

The anti-splash design directs splashing waste water to the inside corners of the trough, while the trough is integrally pitched toward the waste outlet.

Overall Dimensions:

48.0"W x 12.0"D x 12.25"H

Product Weight:

104.0 lb

Anti-splash design

Directs splashing waste water to the inside corners of the trough.

Stainless steel construction

Made from 14-gauge 304 stainless steel.

Integrated drainage pitch

The trough is integrally pitched toward the waste outlet.

Drain components

Includes one 4-inch OD tailpiece and a stainless steel beehive strainer.

PFG fiberglass grating

Uses gray pultruded fiberglass grating.

Brushed satin finish

Exposed stainless steel surfaces have a brushed satin finish.

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Equipment Floor Drains Floor Drains & Troughs Floor Maintenance IMC/Teddy New Arrivals Plumbing & Water Treatment Sinks & Handwashing Stations
Width (long side) 48 in
Depth (short side) 12 in
Receptacle depth 6 in
Overall height 12.25 in
Trough construction 14 ga, 304 stainless steel
Grating construction Pultruded fiberglass
Grating color Gray
Tailpiece 1 included; 4 in OD
Strainer Stainless steel beehive strainer
Finish Brushed satin
Weight 104 lb
Availability Stock item; usually ships in 1–2 days

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Seepage flange installation manual PDF Download PDF Floor troughs brochure PDF Download PDF Floor trough installation manual PDF Download

Frequently Asked Questions

The floor trough is 48 inches wide, 12 inches deep, and 12.25 inches high. The receptacle is 6 inches deep.
The trough is made from 14-gauge 304 stainless steel with a brushed satin finish.
The model includes gray PFG pultruded fiberglass grating.
It includes one 4-inch OD tailpiece and a stainless steel beehive strainer.
Yes. The ASFT-1248-PFG is NSF listed.
The product is made in the USA.
