Imbera USA (AeriTek)

Imbera USA (AeriTek) LTF23 1-Door Glass Door Freezer Merchandiser, 16 cu. ft., Black, Bottom-Mounted Self-Contained Refrigeration

SKU: LTF23
$5,546.36
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

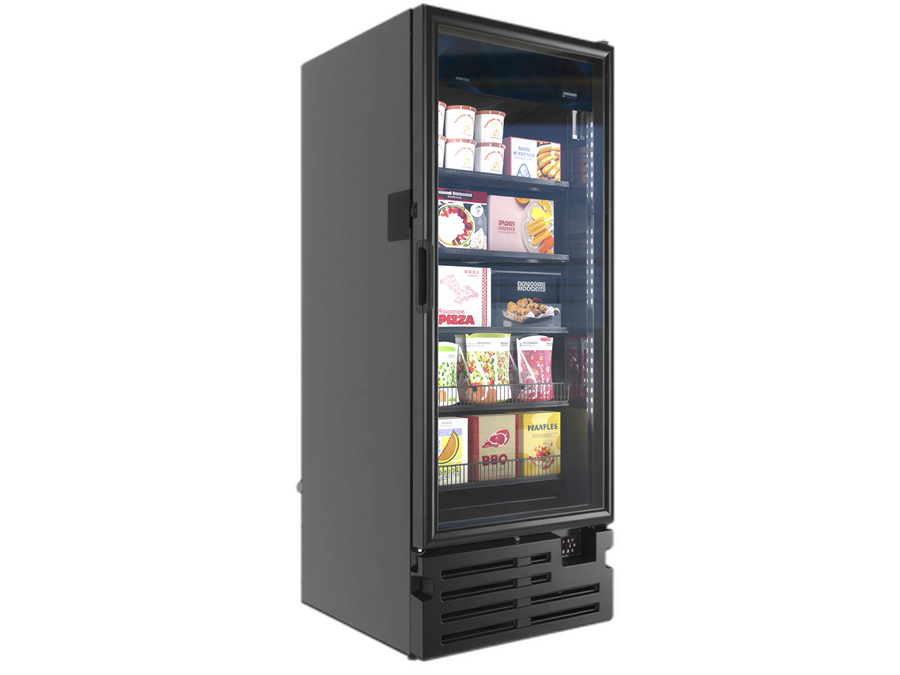

LTF23 is a freezer merchandiser with one plastic-frame door, four shelves, and 16 ft³ (453 L) of usable volume.

Its bottom-mounted, self-contained refrigeration system uses R290 refrigerant, a 1 HP compressor, a dynamic condenser, and a CIR WIFI electronic temperature controller.

  • Pre-painted steel exterior and interior with a black finish
  • Interior LED lighting provides 300 lux output from three modules
  • Spark-free refrigeration components
  • 115 V, 60 Hz, single-phase electrical supply with a NEMA 5-15P plug

Overall Dimensions:

30.25"W x 34.63"D x 79.13"H

Product Weight:

451.95 lb

Usable freezer volume

Provides 16 ft³ (453 L) of usable interior volume and 24.1 ft³ (682.4 L) of gross internal capacity.

Self-contained refrigeration

The bottom-mounted refrigeration system uses a 1 HP compressor, dynamic condenser, and R290 refrigerant.

Electronic temperature control

The CIR WIFI controller manages temperature control and refrigeration component functions.

LED interior lighting

The lighting system provides 300 lux output through three modules: one 8-LED lamp and two 32-LED lamps.

Steel construction

The exterior and interior are made from pre-painted steel.

Spark-free components

Refrigeration components are spark-free.

Electrical connection

Designed for 115 V, 60 Hz, single-phase power at 7.9 A with a NEMA 5-15P plug.

Related Searches

Best Sellers Commercial Freezers Commercial Refrigeration Display Refrigeration Display Refrigeration Food Merchandisers Glass Door Freezers Glass Door Merchandisers Glass Door Merchandisers Glass-Door Refrigerator & Freezer Merchandisers Imbera USA (AeriTek) New Arrivals Refrigerated Merchandiser Equipment Refrigeration & Ice Restaurant Equipment
Product type Freezer merchandiser
Door construction 1 plastic-frame door
Door style Hinged
Shelves 4
Shelf size 22 7/8 in W x 24 1/16 in D
Usable volume 16 ft³ (453 L)
Gross internal capacity 24.1 ft³ (682.4 L)
Exterior material Pre-painted steel
Interior material Pre-painted steel
Exterior finish Black
Refrigeration Self-contained, bottom-mounted
Refrigerant R290, 3.9 oz (0.110 kg)
Compressor power 1 HP
Condenser Dynamic
Temperature controller CIR WIFI
Interior lighting 300 lux output; 3 modules: one 8-LED lamp and two 32-LED lamps
Refrigeration components Spark-free
Energy consumption 7.221 kWh/24h
Power supply 115 V, 60 Hz, single-phase
Current 7.9 A
Plug type NEMA 5-15P
Cord length 118 in (300 cm)
Section size 1 section
Unit weight without packaging 419.6 lb (190.35 kg)
Packaged unit weight 451.9 lb (205 kg)

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

Three-year limited warranty covering parts and labor.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It provides 16 ft³ (453 L) of usable volume and 24.1 ft³ (682.4 L) of gross internal capacity.
It requires 115 V, 60 Hz, single-phase power, draws 7.9 A, and uses a NEMA 5-15P plug.
The specifications list four shelves, each measuring 22 7/8 in W x 24 1/16 in D.
It uses an interior LED lighting system rated at 300 lux output with three modules.
The product includes a three-year limited warranty covering parts and labor, plus an additional two-year compressor warranty in the USA and Canada.
