Icetro America (Middleby)

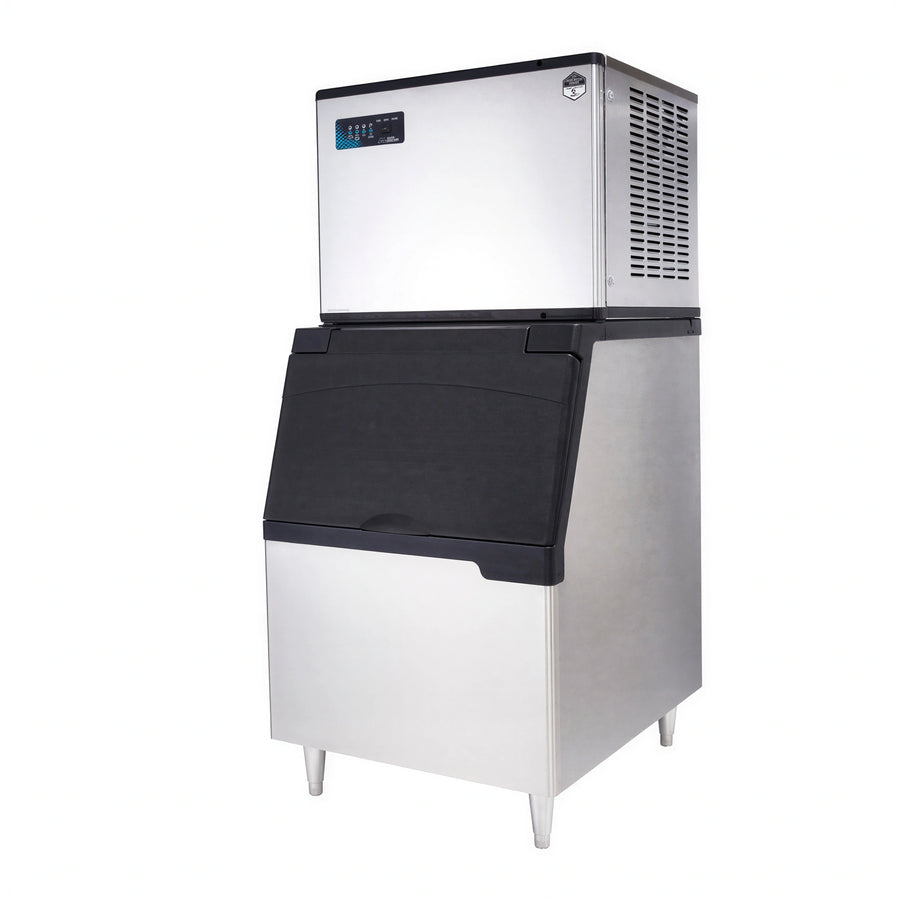

Icetro America (Middleby) IM-0750-AC Modular Ice Maker, Full-Size Dice Cubes, 30"W, Air-Cooled, Self-Contained, Up to 737 lb/24 hr

SKU: IM-0750-AC
$4,857.00
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

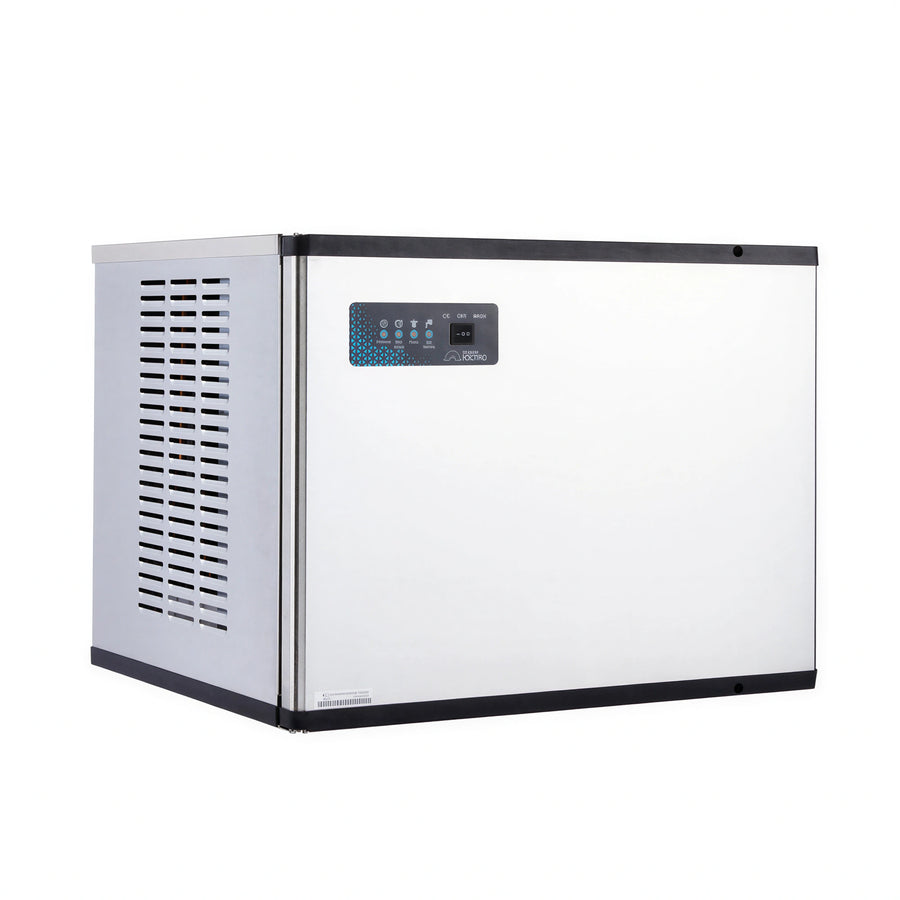

Icetro America IM-0750-AC is a modular ice maker producing full-size dice cubes with an air-cooled, self-contained refrigeration system.

  • Produces up to 737 lb of ice per 24 hours at 70°F air and 50°F water.
  • Features a diagnostic control panel, automatic cleaning cycle, ABS antimicrobial interior, and 304 stainless steel exterior.
  • Measures 30 inches wide and uses 208–230 V, 60 Hz, single-phase power.

Overall Dimensions:

30.0"W x 24.8"D x 22.6"H

Product Weight:

218.0 lb

Full-size dice cubes

Produces cube-style ice measuring 7/8 inch x 7/8 inch x 7/8 inch.

High-volume ice production

Produces up to 737 lb of ice per 24 hours at 70°F air and 50°F water.

Air-cooled refrigeration

Uses an air-cooled condenser with self-contained refrigeration.

Diagnostic control panel

Provides controls to assist with service and maintenance.

Automatic cleaning cycle

Includes an automatic cleaning cycle.

304 stainless steel exterior

The exterior is constructed from 304 stainless steel.

ABS antimicrobial interior

The interior uses ABS antimicrobial material.

Related Searches

Best Sellers Commercial Ice Makers Commercial Ice Makers Ice Machines Ice Machines & Handling Ice Makers & Bins Ice Production Equipment Icetro America (Middleby) New Arrivals Refrigeration & Ice Restaurant Equipment
Ice Type Full-size dice cubes
Cube Size 7/8 in x 7/8 in x 7/8 in (2.22 x 2.22 x 2.22 cm)
Production per 24 hr Up to 737 lb at 70°F air / 50°F water
Condenser Type Air-cooled
Refrigeration Self-contained
Electrical 208–230 V / 60 Hz / 1 phase
Minimum Circuit Ampacity 15 A, 1 phase
Maximum Fuse Size 25 A, 1 phase
Refrigerant R-404A
Ambient Temperature Range 50 to 100°F (10 to 37°C)
Water Temperature Range 50 to 90°F (10 to 32°C)
Potable Water Pressure 20 to 80 psi (137.9 to 551.1 kPa)
Water Usage 15 gal per 100 lb of ice
Exterior Material 304 stainless steel
Interior Material ABS antimicrobial
Net Weight 185.2 lb
Weight 218 lb

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

Commercial warranty includes 3 years of parts and labor, 5 years of parts and labor for the evaporator, and 5 years of parts and 3 years of labor for the compressor.

Documents

PDF Cutsheet PDF Download PDF Exploded view PDF Download PDF Catalog PDF Download PDF Middleby financial flyer PDF Download PDF User manual PDF Download PDF Install service manual PDF Download

Frequently Asked Questions

It produces full-size dice cubes measuring 7/8 inch x 7/8 inch x 7/8 inch.
It produces up to 737 lb per 24 hours at 70°F air and 50°F water.
Yes. It has an air-cooled condenser and self-contained refrigeration.
It requires 208–230 V, 60 Hz, single-phase power, with a 15 A minimum circuit ampacity and 25 A maximum fuse size.
No. The cutsheet states that the ice machine and bin are sold separately.
