Icetro America (Middleby)

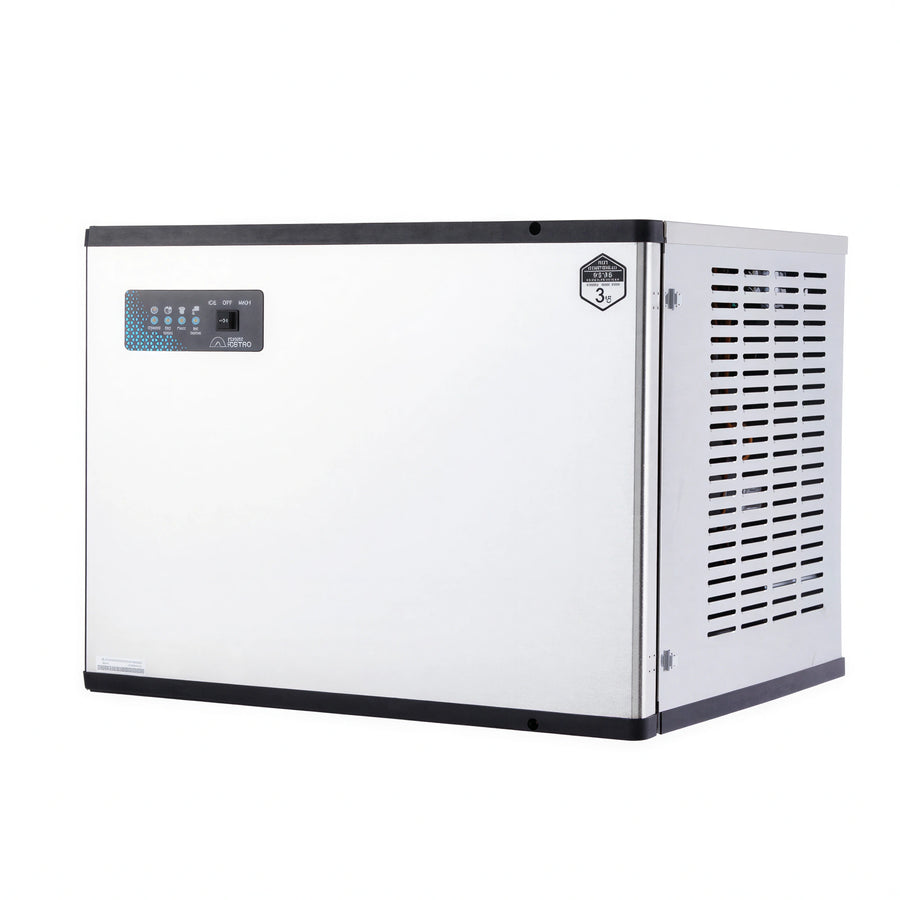

Icetro America (Middleby) IM-0550-AC Modular Ice Maker, Full-Size Dice Cubes, 30"W, Air-Cooled, Self-Contained, 551 lb/24 hr

SKU: IM-0550-AC
$4,275.00
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The Icetro America IM-0550-AC is an air-cooled, self-contained modular ice maker that produces full-size dice cubes.

  • Produces up to 551 lb per 24 hours at 70°F air and 50°F water, or 399 lb at 90°F air and 70°F water.
  • Features a 30-inch-wide cabinet with a 304 stainless steel exterior and ABS antimicrobial interior.
  • Includes a diagnostic control panel, auto-cleaning cycle, adjustable flush time, and magnetic-frame cleanable condenser air filter.
  • Uses 115 V, 60 Hz, single-phase electrical service and is hardwired.

Overall Dimensions:

30.0"W x 24.8"D x 22.6"H

Product Weight:

189.0 lb

Full-size dice cubes

Produces full-size cube-style ice; the cutsheet lists cube dimensions of 7/8 in × 7/8 in × 7/8 in.

Air-cooled refrigeration

Uses an air-cooled, self-contained condenser.

Rated ice production

Produces up to 551 lb per 24 hours at 70°F air and 50°F water, and 399 lb per 24 hours at 90°F air and 70°F water.

Cleaning and service controls

Includes a diagnostic control panel, auto-cleaning cycle, adjustable flush time, and a magnetic-frame cleanable condenser air filter.

Cabinet construction

Built with a 304 stainless steel exterior and ABS antimicrobial interior.

Service access

The water distributor tube and water sump can be removed without tools; the unit also has a hinged front door and no screws on the side or back panels.

Ventilation

Sides and top vents provide ventilation for the machine.

Electrical service

Requires 115 V, 60 Hz, single-phase power and is hardwired.

Related Searches

Best Sellers Commercial Ice Makers Commercial Ice Makers Ice Machines Ice Machines & Handling Ice Makers & Bins Ice Production Equipment Icetro America (Middleby) New Arrivals Refrigeration & Ice Restaurant Equipment
Ice type Full-size / dice cubes
Condenser type Air-cooled
Refrigeration Self-contained refrigeration
Production capacity at 70°F air / 50°F water Up to 551 lb per 24 hr
Production capacity at 90°F air / 70°F water 399 lb per 24 hr
Electrical 115 V / 60 Hz / 1 ph
Installation Hardwired
Refrigerant R-404A
BTU per hour 7,563 BTU/hr
Ambient temperature range 50°F to 100°F (10°C to 37°C)
Water temperature range 50°F to 90°F (10°C to 32°C)
Potable water pressure 20 to 80 psi
Minimum circuit ampacity 20 A, 1 ph
Maximum fuse size 25 A, 1 ph

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

3 years parts and labor; 5 years parts and labor for the evaporator; 5 years parts and 3 years labor for the compressor.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Maestro brochure PDF Download PDF Exploded view PDF Download PDF Install service manual PDF Download PDF Catalog PDF Download PDF User manual PDF Download

Frequently Asked Questions

It produces full-size dice cubes.
It produces up to 551 lb per 24 hours at 70°F air and 50°F water, or 399 lb per 24 hours at 90°F air and 70°F water.
It uses an air-cooled, self-contained condenser.
The IM-0550-AC requires 115 V, 60 Hz, single-phase power and is hardwired.
The unit is 30.0 inches wide, 24.8 inches deep, and 22.6 inches high, with a listed weight of 189.0 lb.
The listed commercial warranty is 3 years for parts and labor, 5 years for parts and labor on the evaporator, and 5 years for parts with 3 years of labor on the compressor.
