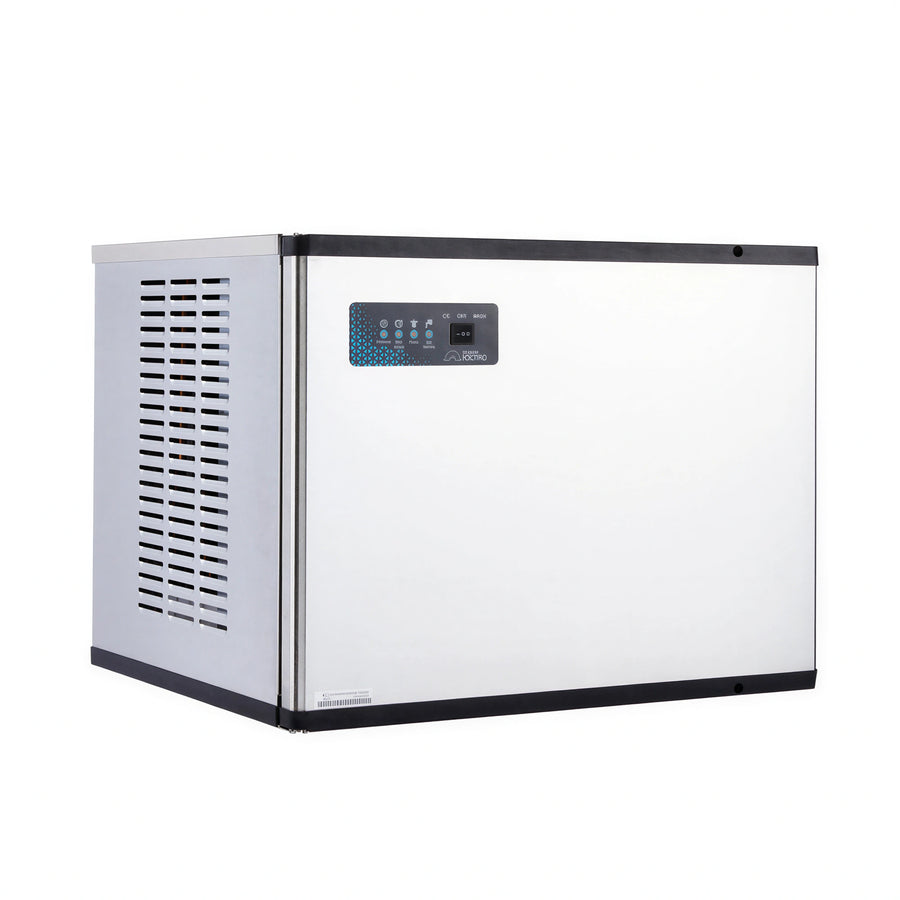

Icetro America (Middleby) IM-0460-WC Modular Ice Maker, Full-Size Cube, Water-Cooled, Self-Contained, 463 lb/24 hr, 30"W

SKU: IM-0460-WC
$4,307.00
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The Icetro America IM-0460-WC is a water-cooled, self-contained modular ice maker that produces full-size cube ice.

It is rated for up to 463 lb of ice per 24 hours at 70°F air and 50°F water, or 407 lb per 24 hours at 90°F air and 70°F water.

  • 30 in wide with a 24.8 in depth and 22.6 in height
  • Diagnostic control panel and automatic cleaning cycle
  • 304 stainless steel exterior and ABS antimicrobial interior
  • 115 V / 60 Hz / 1-phase electrical specification
  • CE, cETLus, and ETL-Sanitation certifications

Overall Dimensions:

30.0"W x 24.8"D x 22.6"H

Product Weight:

192.0 lb

Full-size cube ice

Produces full-size cubes measuring 7/8 in × 7/8 in × 7/8 in.

High production capacity

Produces up to 463 lb per 24 hours at 70°F air and 50°F water, or 407 lb at 90°F air and 70°F water.

Water-cooled refrigeration

Uses a water-cooled, self-contained refrigeration system.

Diagnostic control panel

Provides diagnostic controls to assist service and maintenance.

Automatic cleaning cycle

Includes a cleaning switch for the automatic cleaning cycle and adjustable flush time.

Antimicrobial interior

Uses an ABS antimicrobial interior.

Stainless steel exterior

Uses a 304 stainless steel exterior.

Tool-free water component access

The water distributor tube and water sump can be removed without tools.

Related Searches

Best Sellers Commercial Ice Makers Commercial Ice Makers Ice Machines Ice Machines & Handling Ice Makers & Bins Ice Production Equipment Icetro America (Middleby) New Arrivals Refrigeration & Ice Restaurant Equipment
Ice type Full-size cubes
Condenser type Water-cooled, self-contained
Refrigeration Self-contained refrigeration
Production capacity Up to 463 lb per 24 hr at 70°F air / 50°F water; 407 lb per 24 hr at 90°F air / 70°F water
Electrical 115 V / 60 Hz / 1 ph
Electrical connection Hardwired
Minimum circuit breaker 15 A
Water consumption 15.0 gal / 100 lb of ice
Power consumption 4.56 kWh / 100 lb of ice
Cube dimensions 7/8 in × 7/8 in × 7/8 in
Refrigerant R-404A
Net weight 159.8 lb
Weight 192 lb

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

3-year parts and labor warranty for the ice maker.

Documents

PDF Cutsheet PDF Download PDF User manual PDF Download PDF Install service manual PDF Download PDF Exploded view PDF Download PDF Catalog PDF Download PDF Middleby financial flyer PDF Download

Frequently Asked Questions

It produces full-size cube ice. The documented cube dimensions are 7/8 in × 7/8 in × 7/8 in.
It produces up to 463 lb per 24 hours at 70°F air and 50°F water, or 407 lb per 24 hours at 90°F air and 70°F water.
It is water-cooled and uses self-contained refrigeration.
The electrical specification is 115 V / 60 Hz / 1 phase, with a hardwired connection and a 15 A minimum circuit breaker.
The machine is 30 in wide, 24.8 in deep, and 22.6 in high.
The ice maker has a 3-year parts and labor warranty. The evaporator has 5 years of parts and labor coverage, and the compressor has 5 years of parts and 3 years of labor coverage.
The model is certified to CE, cETLus, and ETL-Sanitation standards.
