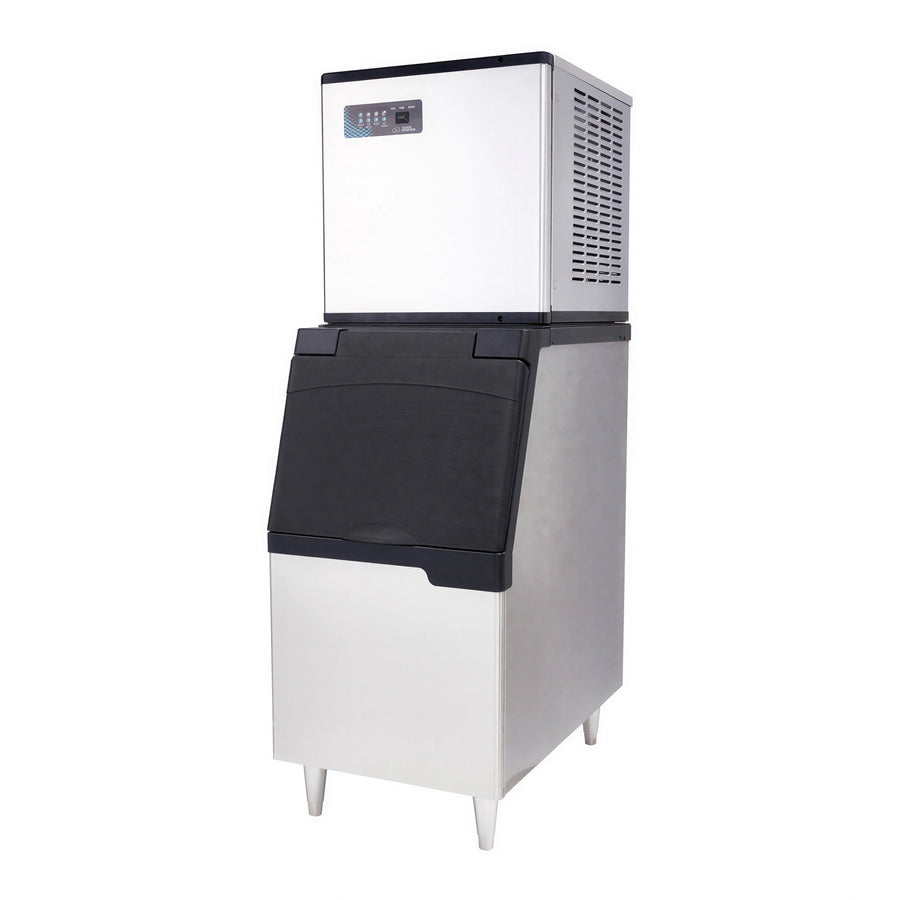

Icetro America (Middleby) IM-0460-AC-22 Modular Ice Maker, Full-Size Dice Cubes, Air-Cooled, Self-Contained, 22"W

SKU: IM-0460-AC-22
$3,956.00
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The Icetro America IM-0460-AC-22 is a modular ice maker with an air-cooled, self-contained refrigeration system for producing full-size dice cubes. It produces up to 443 lb of ice per 24 hours at 70°F air and 50°F water, or 327 lb at 90°F air and 70°F water.

  • Service-focused controls: Diagnostic control panel and automatic cleaning cycle support routine maintenance.
  • Construction: 304 stainless-steel exterior with an ABS antimicrobial interior.
  • Installation: 22-inch-wide design with 115V, 60Hz, single-phase power and a NEMA 5-15P plug.
  • Important: The ice machine and storage bin are sold separately.

Overall Dimensions:

22.0"W x 24.8"D x 22.6"H

Product Weight:

168.0 lb

Full-size dice cubes

Produces full-size cube-style ice identified as full-size or dice cubes.

Air-cooled refrigeration

Uses an air-cooled, self-contained refrigeration system.

High daily production

Produces up to 443 lb per 24 hours at 70°F air and 50°F water, or 327 lb at 90°F air and 70°F water.

Diagnostic control panel

Provides diagnostic controls to assist service and maintenance.

Automatic cleaning cycle

A dedicated cleaning switch supports the automatic cleaning cycle.

304 stainless-steel exterior

The exterior is constructed from 304 stainless steel.

ABS antimicrobial interior

The ABS antimicrobial interior is specified to reduce slime buildup and cleaning costs.

Maintenance access

The water distributor tube and water sump can be removed without tools, and the front panel is hinged for access.

Related Searches

Best Sellers Commercial Ice Makers Commercial Ice Makers Ice Machines Ice Machines & Handling Ice Makers & Bins Ice Production Equipment Icetro America (Middleby) New Arrivals Refrigeration & Ice Restaurant Equipment
Ice type Full-size / dice cubes
Condenser type Air-cooled
Refrigeration Self-contained refrigeration
Production capacity Up to 443 lb/24 hr at 70°F air and 50°F water; 327 lb/24 hr at 90°F air and 70°F water
Electrical 115V / 60Hz / 1 phase
Plug NEMA 5-15P
Refrigerant R-404A
Ambient temperature range 50°F to 100°F
Water temperature range 50°F to 90°F
Potable water pressure 20 to 80 psi
BTU per hour 5,405 BTU/h

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

3 years parts and labor for the ice machine; 5 years parts and labor for the evaporator; and 5 years parts and 3 years labor for the compressor.

Documents

PDF Cutsheet PDF Download PDF Exploded view PDF Download PDF Catalog PDF Download PDF Maestro brochure PDF Download PDF Install service manual PDF Download PDF Middleby financial flyer PDF Download PDF User manual PDF Download

Frequently Asked Questions

It produces full-size dice cubes, also identified as full-size cube-style ice.
It produces up to 443 lb per 24 hours at 70°F air and 50°F water, or 327 lb per 24 hours at 90°F air and 70°F water.
Yes. It has an air-cooled, self-contained refrigeration system.
It requires 115V, 60Hz, single-phase power and uses a NEMA 5-15P plug.
No. The cutsheet states that the ice machine and bin are sold separately.
Yes. It includes a cleaning switch for an automatic cleaning cycle.
