Ice-O-Matic UCG130GA Ice Machines
Description

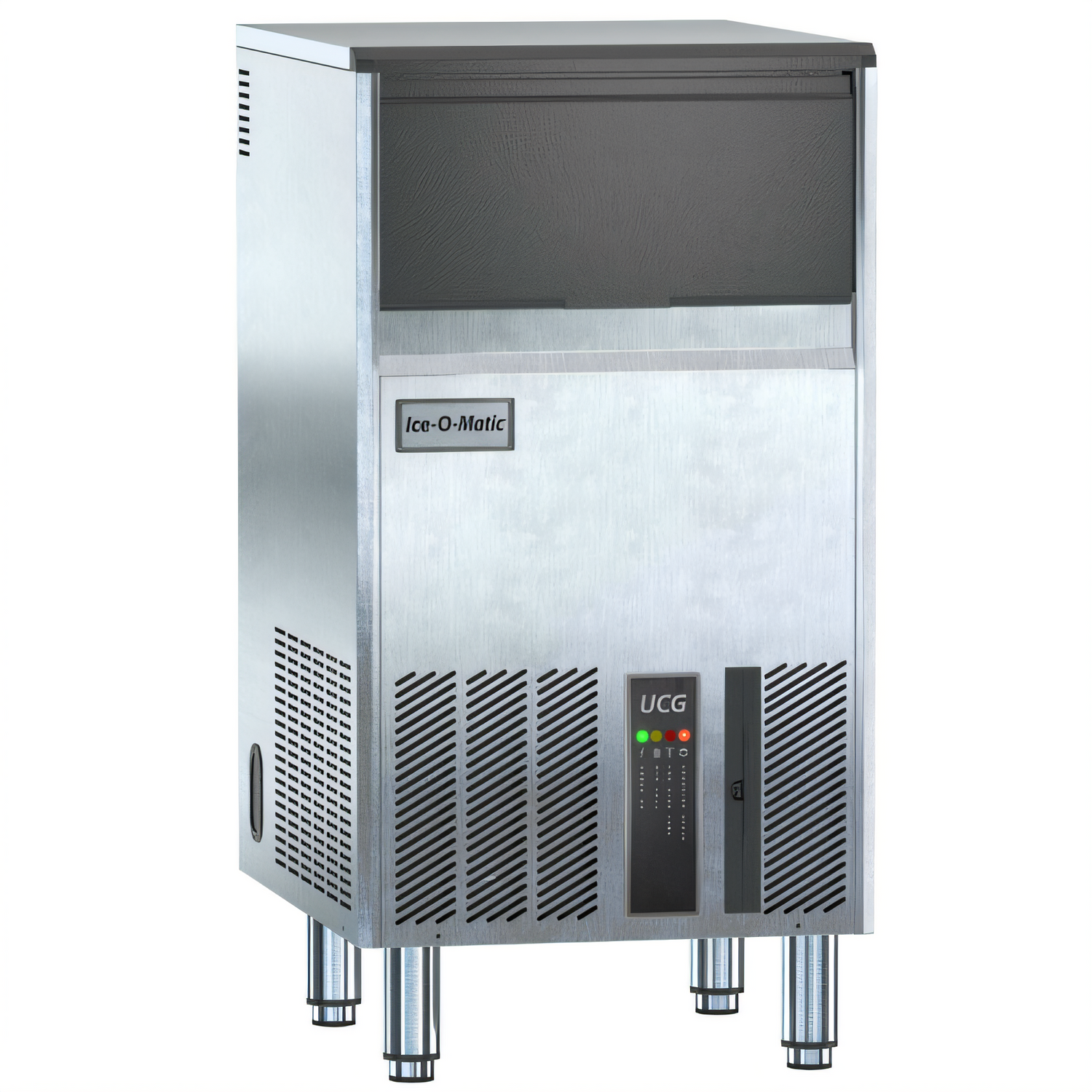

Ice-O-Matic UCG130GA Gourmet Grande Cube Ice Maker
121 lb Production • 48.5 lb Built-In Bin • Air-Cooled UndercounterElevate cocktail presentation and guest satisfaction with crystal-clear, slow-melting gourmet cubes. The Ice-O-Matic UCG130GA tucks neatly beneath standard bar or prep counters while delivering up to 121 lb (55 kg) of premium “Grande” ice every 24 hours—perfect for top-shelf spirits, craft cocktails, and table service.
Key Features

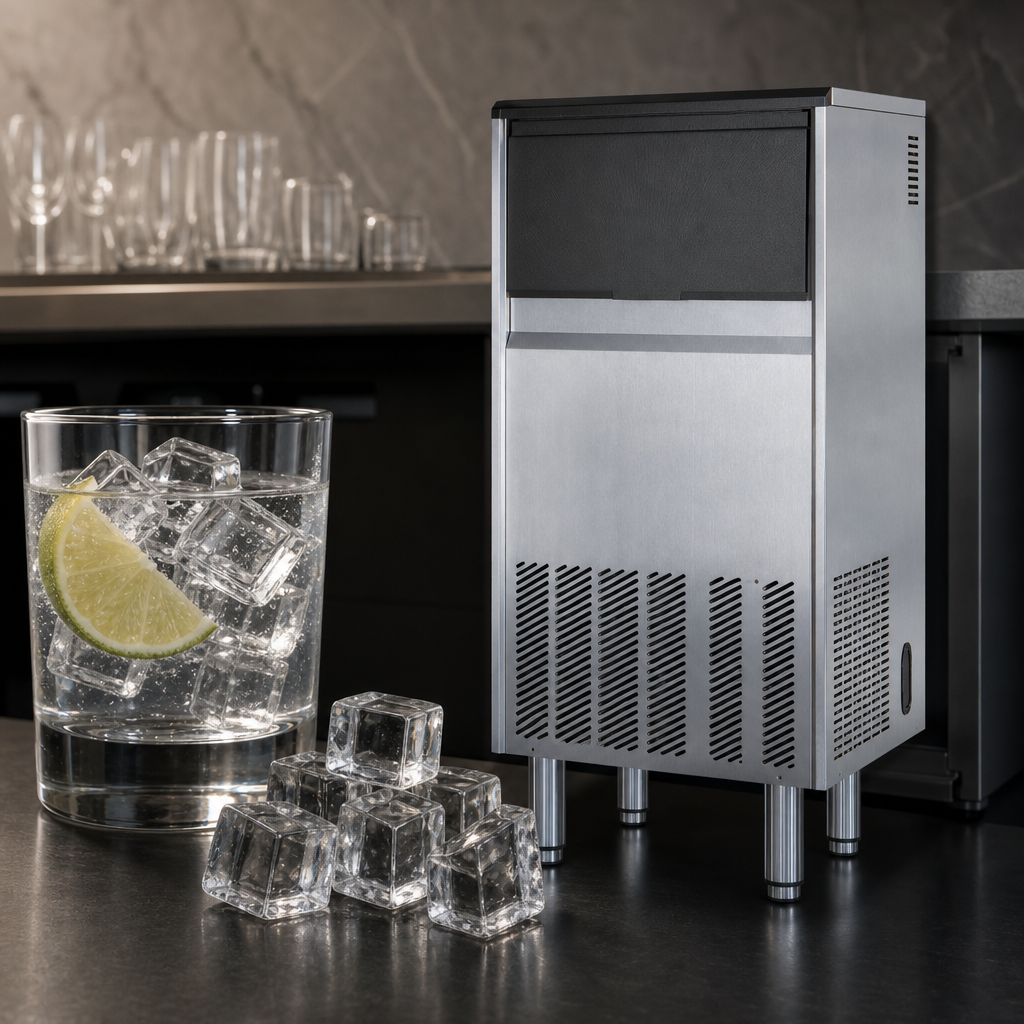

- Gourmet Grande cubes: clear, cylindrical 1.65″ H × 1.5″ Ø (42 mm × 38 mm) for maximum clarity and minimal dilution.
- Air-cooled, self-contained condenser with front air discharge—no side or rear clearance needed.

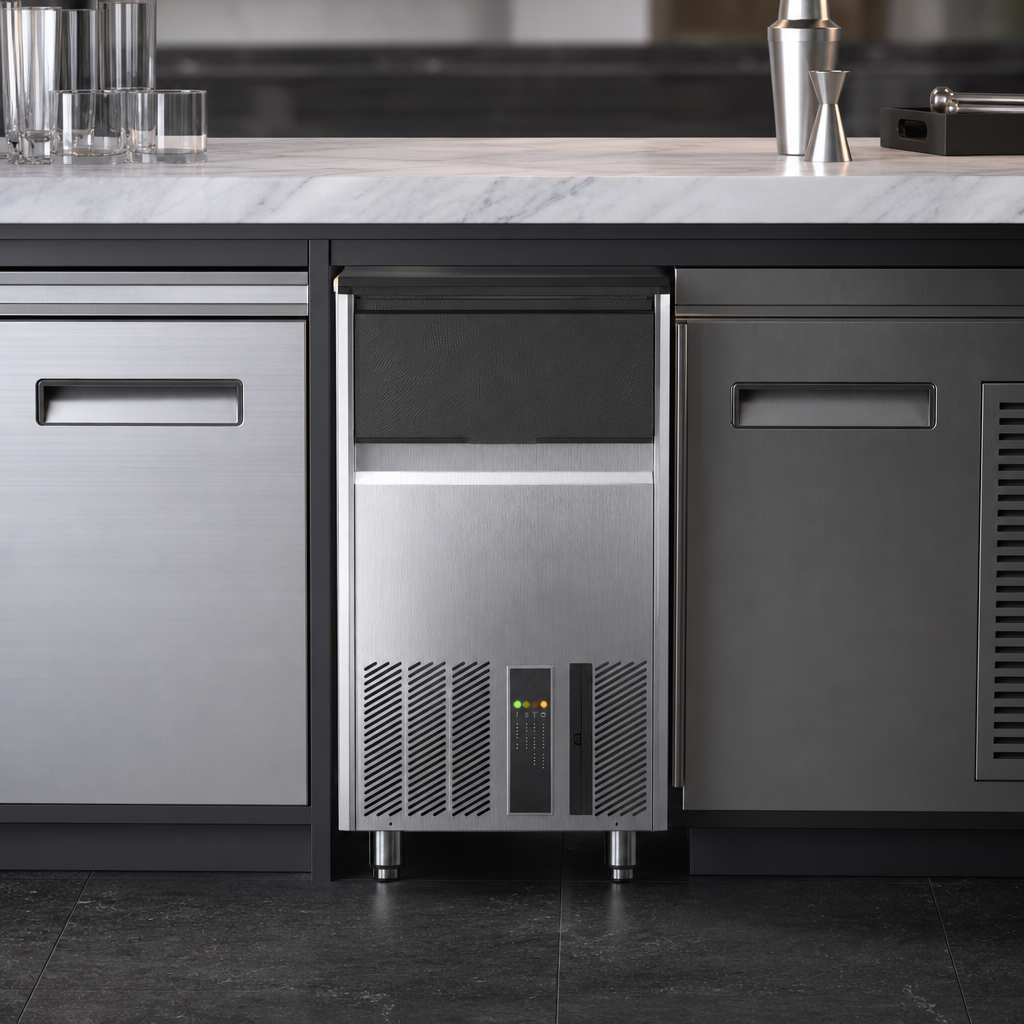

- Space-saving 18 ¼″ (467 mm) width & low-profile top fit almost any bar, café, or hotel pantry.
- Built-in 48.5 lb (22 kg) storage bin with easy front access door.
- Durable stainless-steel cabinet and fingerprint-proof plastic fascia keep the unit looking clean in high-traffic areas.
- Adjustable 5″–6 ¾″ legs included; optional 2 ⅛″–2 ½″ short legs for ADA-height counters.
- Removable, front-mounted air filter for quick routine cleaning.
- Eco-friendly R290A hydrocarbon refrigerant meets the latest environmental standards.
- Factory-installed 115 V cord & plug for simple, plug-and-play installation.
- cETLus & ETL Sanitation listed for assured electrical and food-safety compliance.
Performance & Utilities
| Ice production (50 °F water / 70 °F air) | Up to 121 lb / 55 kg per 24 h |
|---|---|
| Ice production (70 °F water / 90 °F air) | 100.5 lb / 45 kg per 24 h |
| Bin storage capacity | 48.5 lb / 22 kg |
| Energy consumption | 10.05 kWh per 100 lb of ice |
| Water consumption | 1.32 gal per hour at rated capacity |
| Electrical | 115 V / 60 Hz / 1-ph, 5.4 A (cord included) |
| Refrigerant | R290A (hydrocarbon) |
Dimensions & Connections
| Overall (W × D × H) | 18 ¼″ × 22 ¼″ × 33 ⅛″ (464 × 565 × 842 mm) with standard legs |
|---|---|
| Minimum height (short-leg option) | 31″ (788 mm) |
| Shipping weight | 97 lb / 44 kg |
| Water inlet | ¾″ NPT |
| Gravity drain | 25⁄32″ (20 mm) |
Operating Parameters
| Ambient temperature | 50 °F – 109 °F (10 °C – 43 °C) |
|---|---|
| Water temperature | 41 °F – 100 °F (5 °C – 38 °C) |
| Water pressure | 14 – 70 psi (1 – 5 bar) |
Warranty
Ice-O-Matic covers the UCG130GA with a 3-year parts & labor warranty. Register your unit and change water-filter cartridges every six months to keep performance and warranty protection at their best.
