Ice-O-Matic UCG080A Ice Machines
Description

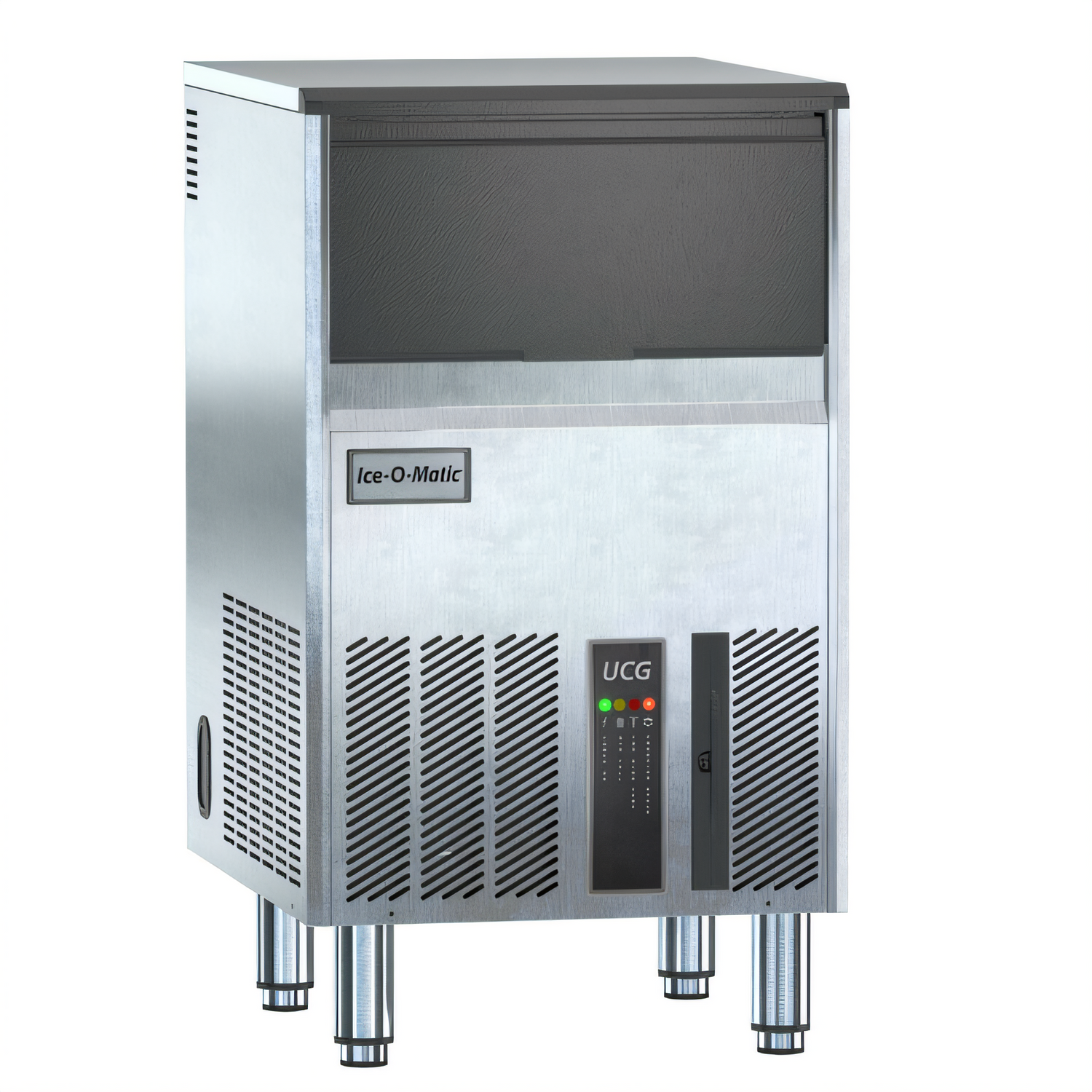

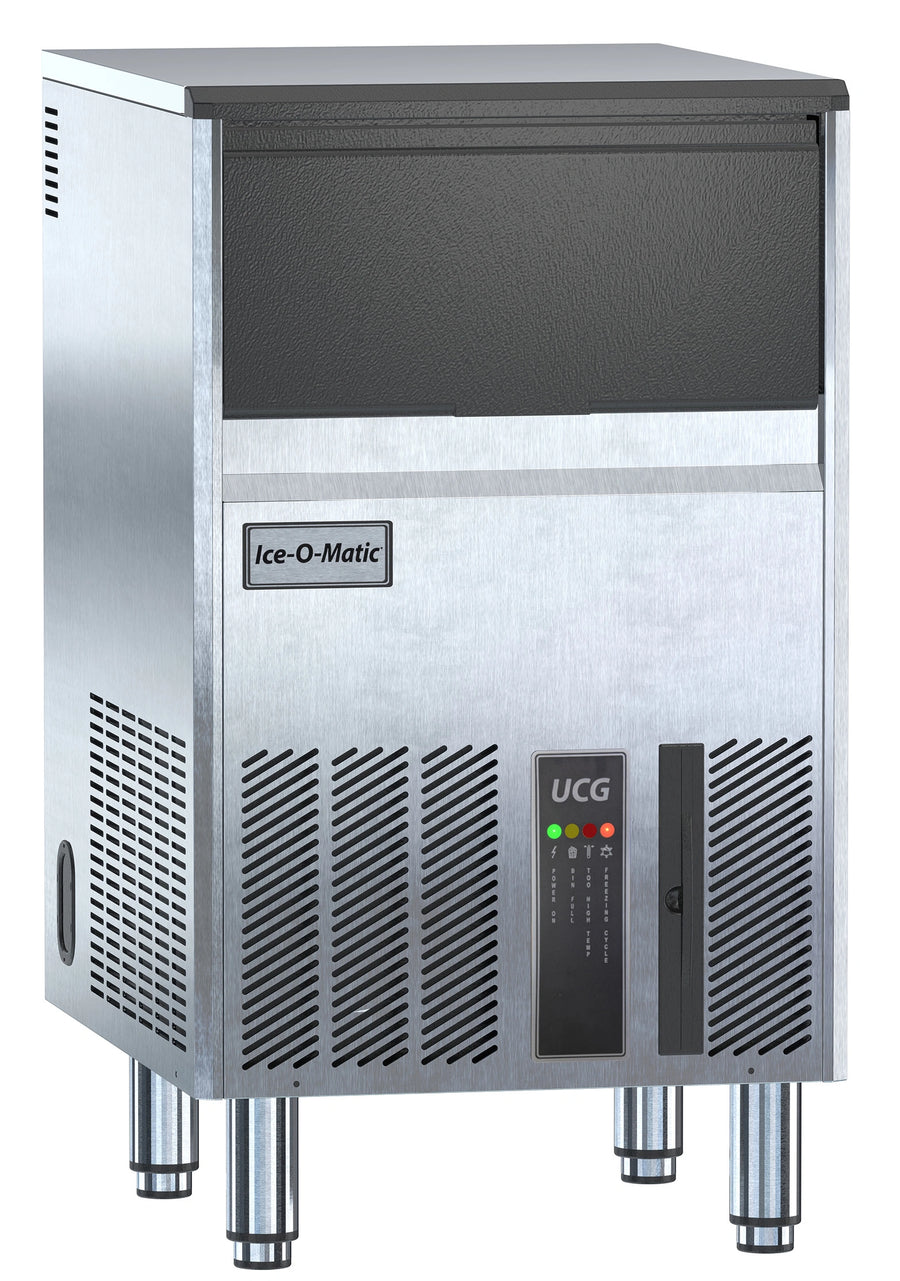

Ice-O-Matic UCG080A Gourmet Cube Ice Maker
95 lb / 24 hr production – 33 lb built-in bin – Undercounter, air-cooledServe crystal-clear, slow-melting gourmet cubes from a machine that slips neatly beneath the counter and keeps pace with busy bars, cafés, executive suites and breakrooms. Ice-O-Matic’s UCG080A blends premium ice quality with an elegant, space-saving design that’s easy to install, clean and maintain.
Why You’ll Love It
- High performance output – up to 95 lb (43 kg) of ice every 24 hours; stores 33 lb (15 kg) ready to scoop.

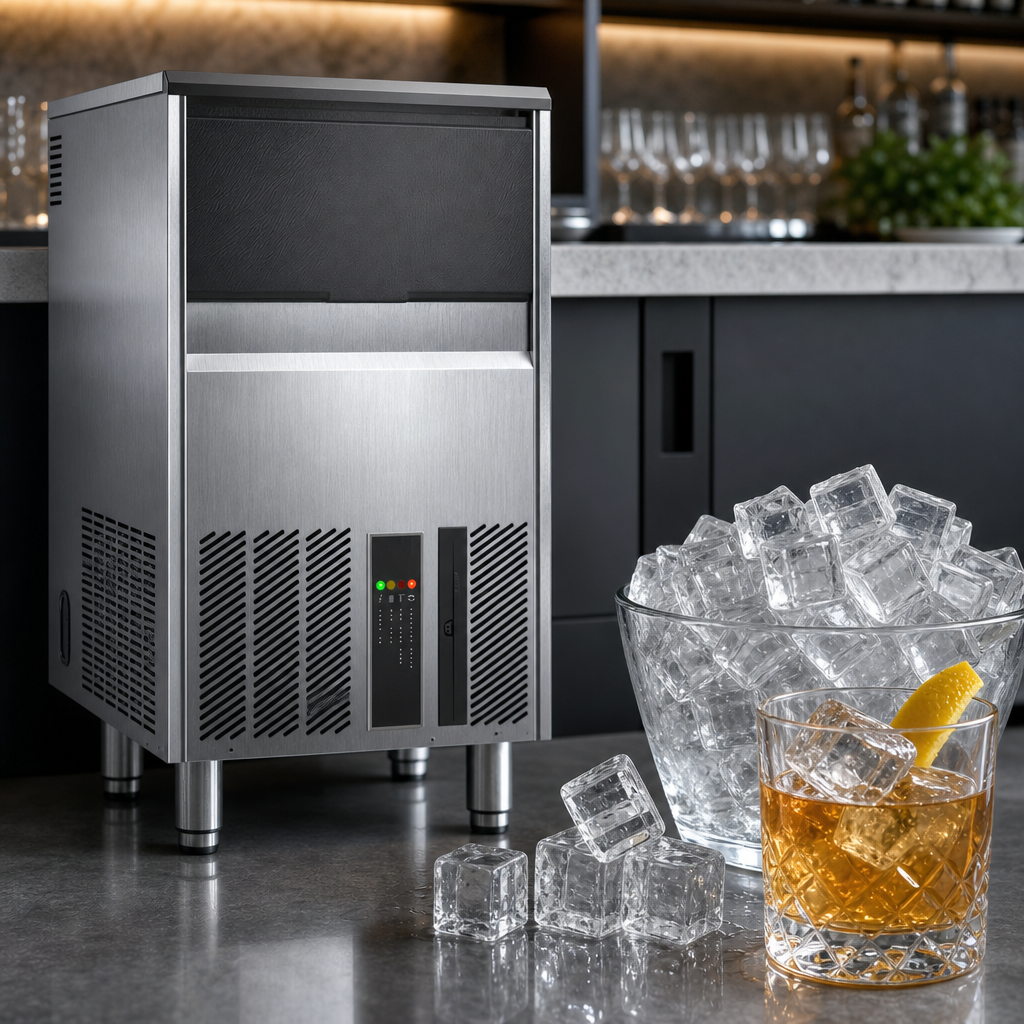

- Signature “Gourmet” cubes – 1.2 in H × 1.35 in Dia solid cubes that look spectacular and resist dilution.

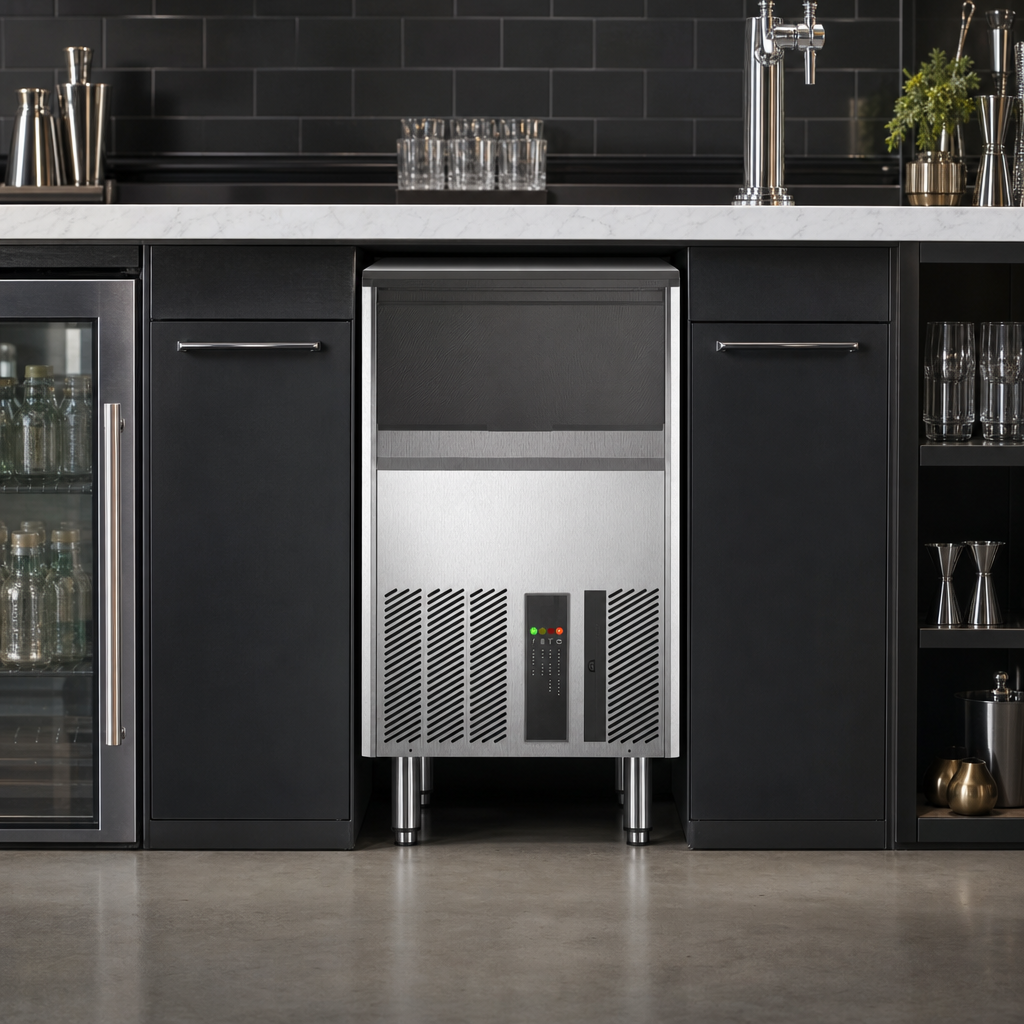

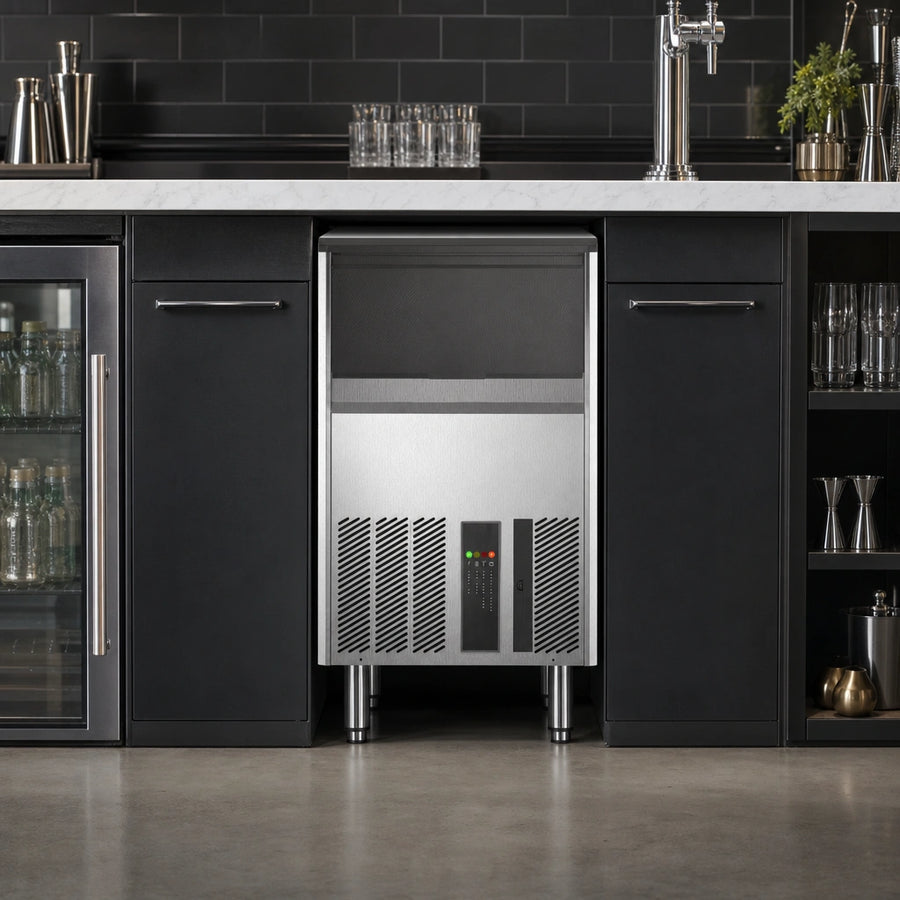

- True undercounter footprint – only 18 ¼ in (467 mm) wide with front air discharge for zero side clearance.
- Built to stay beautiful – corrosion-resistant stainless steel cabinet with fingerprint-proof plastic fascia.
- Green & efficient – uses natural R290A hydrocarbon refrigerant and just 9.6 kWh per 100 lb of ice.
- Tool-free upkeep – slide-out, washable air filter and easy front access to the ice bin.
- Adjustable legs included; optional 2 ⅛–2 ½ in short legs (Part #1011411-87) make the unit ADA compliant.
- Plug-and-play – self-contained air-cooled condenser, 115 V cord & NEMA 5-15P plug.
- Peace-of-mind warranty – 3 years parts & labor on the entire machine.
Quick Specs
| Ice production (70 °F air / 50 °F water) | 95 lb / 24 hr (43 kg) |
|---|---|
| Ice production (90 °F air / 70 °F water) | 77.8 lb / 24 hr (35 kg) |
| Ice storage capacity (built-in bin) | 33 lb (15 kg) |
| Ice type / size | Gourmet cube – 1.2 in H × 1.35 in Dia (30.5 × 34.3 mm) |
| Dimensions (W × D × H) | 18 ¼ in × 22 ¼ in × 27 ¼ in* (464 × 565 × 692 mm) |
| Height with factory legs | 29 ⅜ in – 34 in (746 – 864 mm) |
| Electrical | 115 V / 60 Hz / 1-ph, 3.9 A, cord & plug included |
| Refrigerant | R290A (hydrocarbon) |
| Water consumption | 1.03 gal per 100 lb of ice |
| Energy consumption | 9.6 kWh per 100 lb of ice |
| Connections | ¾ in water inlet • 25/32 in gravity drain |
| Certifications | cETLus • ETL Sanitation • Prop-65 • CE |
| Shipping weight | 90 lb (41 kg) |
*Height shown without legs. See leg options above for installed heights.
Site Requirements
- Ambient temperature: 50 °F – 109 °F (10 °C – 43 °C)
- Incoming water temperature: 41 °F – 100 °F (5 °C – 38 °C)
- Water pressure: 14 – 70 psi (1 – 5 bar)
- Gravity drain located within 6 ft (1.8 m) of unit
Add the UCG Short Leg Kit (Part #1011411-87) to reduce overall height to ≤ 32 ¼ in (819 mm) and meet the ADA counter clearance requirement.
Recommended Accessories
- IFQ1-S Water Filter Manifold & IOMQ-S Replacement Cartridge – maximizes ice clarity and extends warranty coverage.
- UCG Short Leg Kit for ADA counters.
- Scoop holder & sanitary ice scoop.
Warranty Coverage
Ice-O-Matic backs every UCG Series ice maker with a 3-year parts & labor warranty. Register your unit and keep it protected with routine water filter changes for worry-free performance.
