Ice-O-Matic

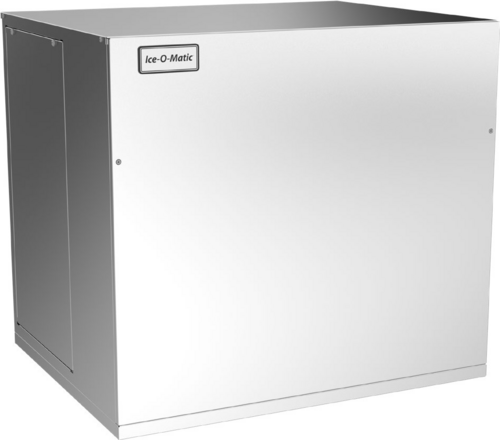

Ice-O-Matic Flake Ice Maker Head, Remote-Cooled, Air-Cooled, Stainless Steel, Approx. 2,250 lb/24 Hr

SKU: MFI2306R49
$11,803.87
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Butane Stove Cooking Equipment Cooking Equipment Cooking Equipment Countertop Cooking Equipment Equipment Ice Machines Ice Makers & Bins Ice-O-Matic New Arrivals Restaurant Equipment

Ice-O-Matic Flake Ice Maker Head, Remote-Cooled, Air-Cooled, Stainless Steel, Approx. 2,250 lb/24 Hr

208-230V, 1-Phase, R449A Refrigerant

Built for high-volume flake ice production, this remote-cooled head combines rugged stainless-steel construction with smart monitoring features to help keep it running reliably.

  • Produces flake ice that is ideal for preservation and presentation applications.
  • Remote-cooled, air-cooled design helps keep heat away from the machine area.
  • Water sensor, ice-detection fail-safe, and load monitoring help protect against downtime.
  • Stainless-steel evaporator assembly and stainless steel finish support long-term durability.
  • Heavy-duty gearbox and maintenance-free double roller bearings are built for commercial use.
  • 208-230V single-phase electrical service with R449A refrigerant.
  • Compatible bin options are listed separately and sold separately.
  • Backed by a 3-year parts and labor ice maker warranty and 5-year compressor parts warranty.

Overall Dimensions:

30.0"W x 24.0"D x 27.0"H

Product Weight:

316.0 lb

Flake Ice Production

Produces flake ice, which is best for preservation and presentation.

Water Sensor

Helps eliminate low- or no-water failures and supports operation in adverse water conditions.

Stainless-Steel Evaporator Assembly

Rugged evaporator construction is designed to improve reliability.

Double Roller Bearings

Maintenance-free, industrial-grade bearings help reduce service needs.

Heavy-Duty Gearbox

Built to provide years of trouble-free service.

Automatic Ice Detection Shutoff

Non-contact fail-safe shutoff helps stop the machine when ice is detected.

Load Monitoring System

Constantly checks gearbox workload and can shut down before a problem develops.

Remote-Cooled Design

Uses a remote condenser setup to keep heat-generating components out of the machine area.

Stainless Steel Finish

Durable exterior finish suited to commercial foodservice environments.

Type Ice Maker Head
Style Flake
Refrigeration Type Remote
Cooling Type Air-Cooled
Material Stainless Steel
Finish Stainless Steel
Production Per 24 Hours Approximately 2,250 lb
Voltage 208-230 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 23.1 Amps
Breaker Size 40 Amps
BTU 22,400 BTU Per Hour
Refrigerant Type R449A
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 3/4 Inch FPT
Water Connection Required
Drain Connection Required
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor on the ice maker; 5 years parts on the compressor.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It produces flake ice, which is ideal for preservation and presentation.
The cutsheet identifies it as remote cooled and shows remote condenser line-set connections; RC306C49 is listed as an accessory.
The unit requires 208-230 Volts, 60 Hz, 1-Phase power, with 23.1 Amps minimum circuit and a 40 Amp maximum breaker.
This model uses R449A refrigerant.
The cutsheet lists B40, B55, B700-30, B110, B1000-48, B1300-48, B1325-60, and B1660-60 as bin options; B42 is listed as not compatible.
The cutsheet lists a 3-year parts and labor warranty on the ice maker and a 5-year parts warranty on the compressor.
