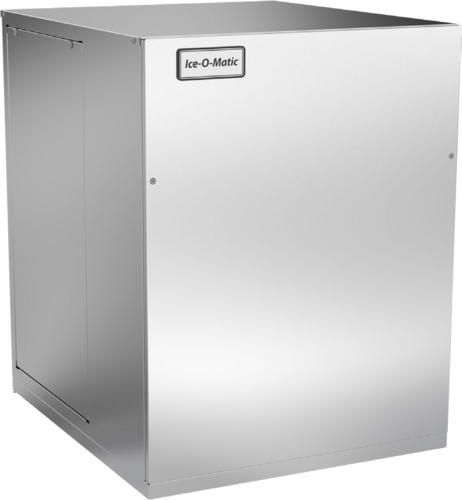

Ice-O-Matic MFI1506R49

Ice-O-Matic MFI1506R49 Flake Ice Maker, Air-Cooled, Remote Condenser, 1,390 lb/Day, Stainless Steel

$9,606.00
/each
Ships in 16–19 business days
Dimensions
21.0"W × 24.0"D × 27.0"H
Ice type
Flake
Cooling
Air-cooled
Condensing type
Remote
Remote refrigeration
Not included
Rated ice production
Approximately 1,390 lb (631 kg) per 24 hours

Questions before you buy?

Talk to an equipment specialist — usually within 1 hour, 9am–6pm EST.

(888) 307-5030 Call Get custom quote

Specifications

Ice type Flake
Cooling Air-cooled
Condensing type Remote
Remote refrigeration Not included
Rated ice production Approximately 1,390 lb (631 kg) per 24 hours
Ice production at 70°F air / 50°F water 1,375 lb (624 kg) per 24 hours
Ice production at 90°F air / 70°F water 1,018 lb (462 kg) per 24 hours
Finish Stainless steel
Refrigerant R449A
Electrical requirements 208–230 V / 60 Hz / 1 phase
Minimum circuit ampacity 16.3 A
Maximum breaker size 25 A
Ambient temperature range 50–100°F (10–38°C)
Water temperature range 40–100°F (4–38°C)
Water pressure range 20–80 PSIG (1.4–5.5 bar)
Refrigeration charge 201 oz

Description

The Ice-O-Matic MFI1506R49 is a flake-style ice maker with air-cooled, remote condensing. It produces approximately 1,390 lb (631 kg) of ice per 24 hours and has a stainless steel finish. Remote refrigeration is not included.

  • Water sensor supports operation in low- or no-water and adverse water conditions.
  • Stainless-steel evaporator assembly.
  • Built-in, non-contact ice detection with automatic shutoff.
  • Load monitoring checks gearbox workload and shuts down the system before a problem develops.

Overall Dimensions:

21.0"W x 24.0"D x 27.0"H

Product Weight:

214.0 lb

Flake ice production

Produces flake-style ice for preservation and presentation.

Remote condensing

Uses air-cooled remote condensing; remote refrigeration is not included.

Water sensor

Water sensor supports operation in low- or no-water and adverse water conditions.

Stainless-steel evaporator assembly

Rugged stainless-steel evaporator assembly.

Ice detection

Built-in, non-contact ice detection provides fail-safe automatic shutoff.

Load monitoring

Load monitoring checks gearbox workload and shuts down the system before a problem develops.

Double roller bearings

Maintenance-free, industrial-grade double roller bearings.

Gearbox

Heavy-duty gearbox.

Documentation

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Service manual PDF Download PDF Warranty sheet PDF Download

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Frequently Asked Questions

It produces flake-style ice.
No. The product category data states that remote refrigeration is not included.
The unit requires 208–230 V, 60 Hz, single-phase power, with a 16.3 A minimum circuit ampacity and a 25 A maximum breaker size.
It uses R449A refrigerant.
The listed dimensions are 21 inches wide, 24 inches deep, and 27 inches high, with a listed weight of 214 lb.
Production is approximately 1,390 lb (631 kg) per 24 hours. The specification sheet lists 1,375 lb (624 kg) at 70°F air and 50°F water, and 1,018 lb (462 kg) at 90°F air and 70°F water.
