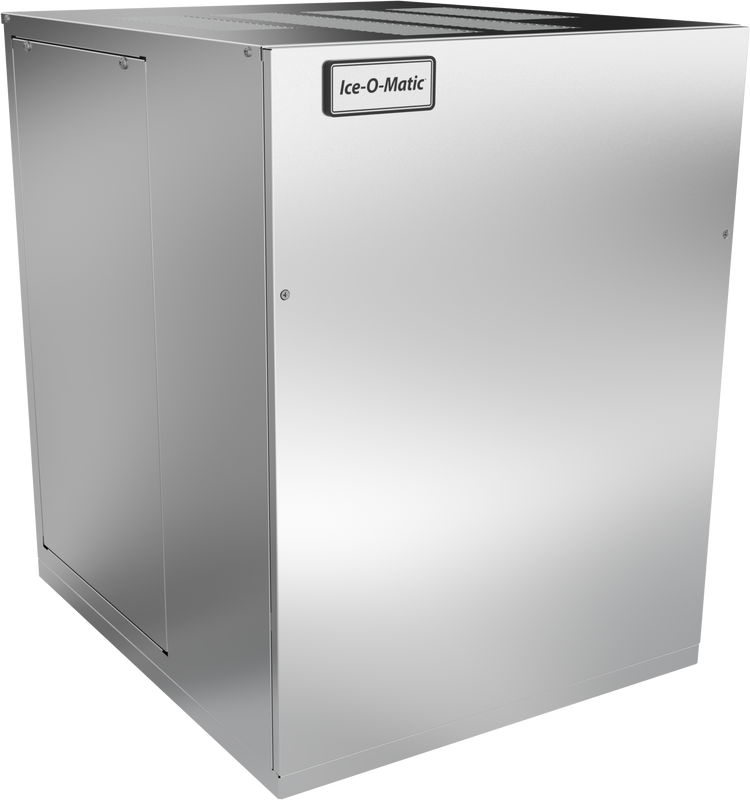

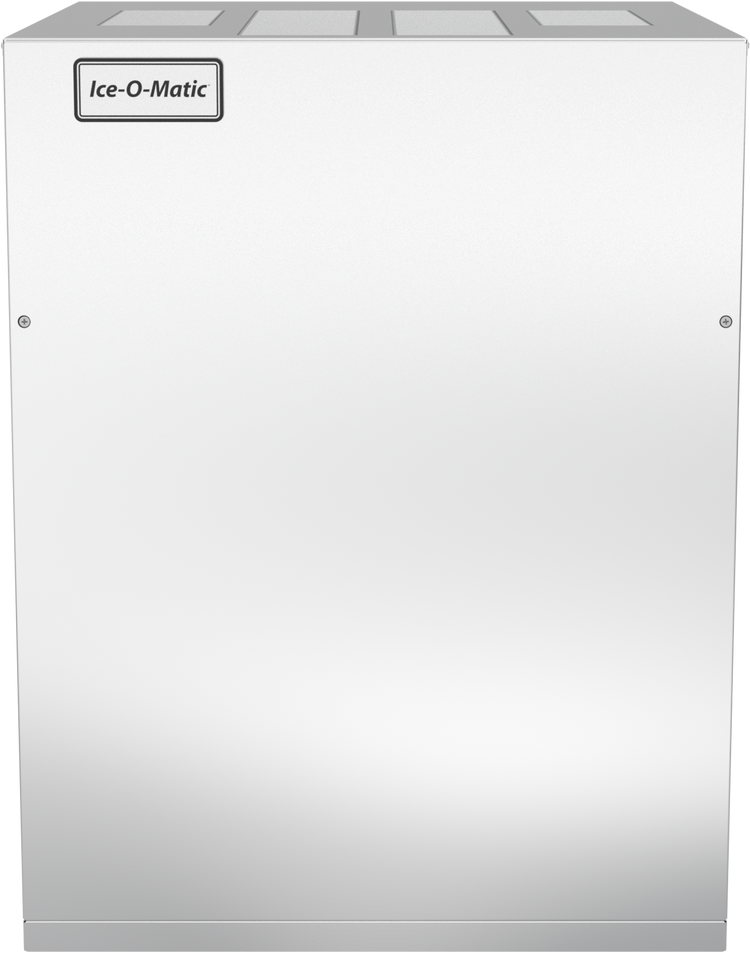

Ice-O-Matic MFI1256A90 Self-Contained Air-Cooled Flake Ice Maker, 1,045 lb/24 Hr, R290, 208-230V
- Phase
- Single phase
- Dimensions
- 21.0"W × 24.0"D × 27.0"H
- Ice type
- Flake
- Condenser type
- Air-cooled
- Refrigeration
- Self-contained
- Refrigerant
- R290A
Specifications
Description
The Ice-O-Matic MFI1256A90 is a self-contained, air-cooled flake ice maker using R290A refrigerant and 208-230V, 60 Hz, single-phase electrical service.
It produces 1,045 lb (474 kg) of flake ice per 24 hours at 70°F air and 50°F water, or 757 lb (343 kg) at 90°F air and 70°F water. The unit features top and side air dual exhaust, a water sensor, non-contact ice detection fail-safe automatic shutoff, and load monitoring.
The machine has a stainless finish and rugged stainless-steel evaporator assembly. Warranty coverage includes 3 years of parts and labor and 5 years of parts coverage on the compressor.
Overall Dimensions:
21.0"W x 24.0"D x 27.0"HProduct Weight:
215.0 lbFlake ice production
Produces flake ice for preservation and presentation.
Air-cooled, self-contained refrigeration
Uses a self-contained air-cooled condenser.
R290A refrigerant
Uses R290A refrigerant.
Dual exhaust
Provides top and side air exhaust.
Water sensor
The water sensor helps prevent low- or no-water failures and operates in adverse water conditions.
Ice detection shutoff
Built-in non-contact ice detection provides fail-safe automatic shutoff.
Load monitoring
The load monitoring system checks gearbox workload and shuts down the system before a problem develops.
Stainless-steel evaporator assembly
Uses a rugged stainless-steel evaporator assembly.
