Ice-O-Matic MFI0800W Ice Machines
Description

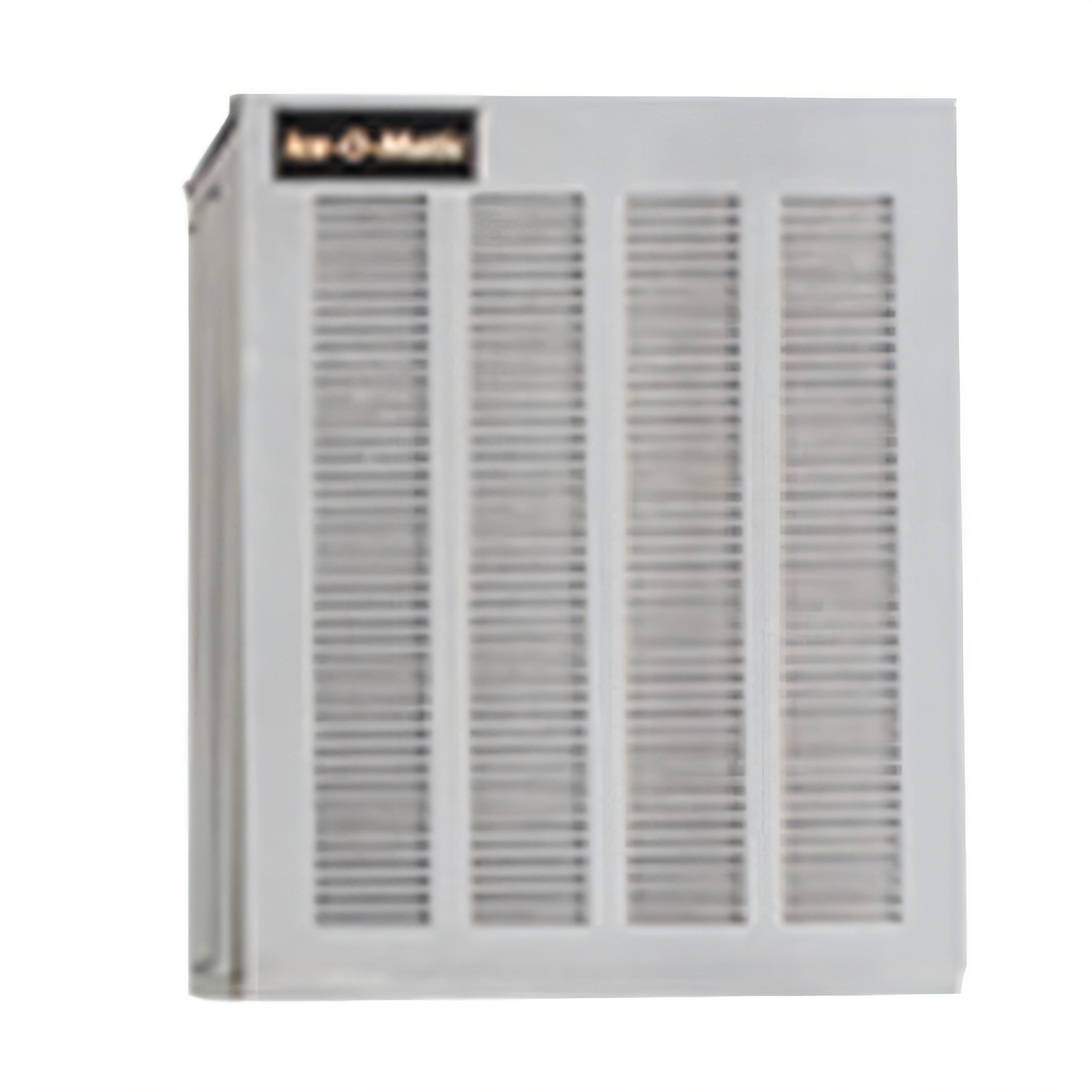

Ice-O-Matic MFI0800W Water-Cooled Flake Ice Maker
21" wide · 940 lb (426 kg) per day · Self-contained condenserProduce almost half a ton of soft, moldable flake ice every 24 hours without giving up precious floor space. Built just 21 inches wide and finished in durable stainless steel, the Ice-O-Matic MFI0800W is the compact powerhouse trusted for seafood displays, bakeries, healthcare, bars and more.
Key Features
- High-capacity output — up to 940 lb (426 kg) in 24 hours.
- Ultra-slim 21 in (533 mm) footprint saves valuable space.

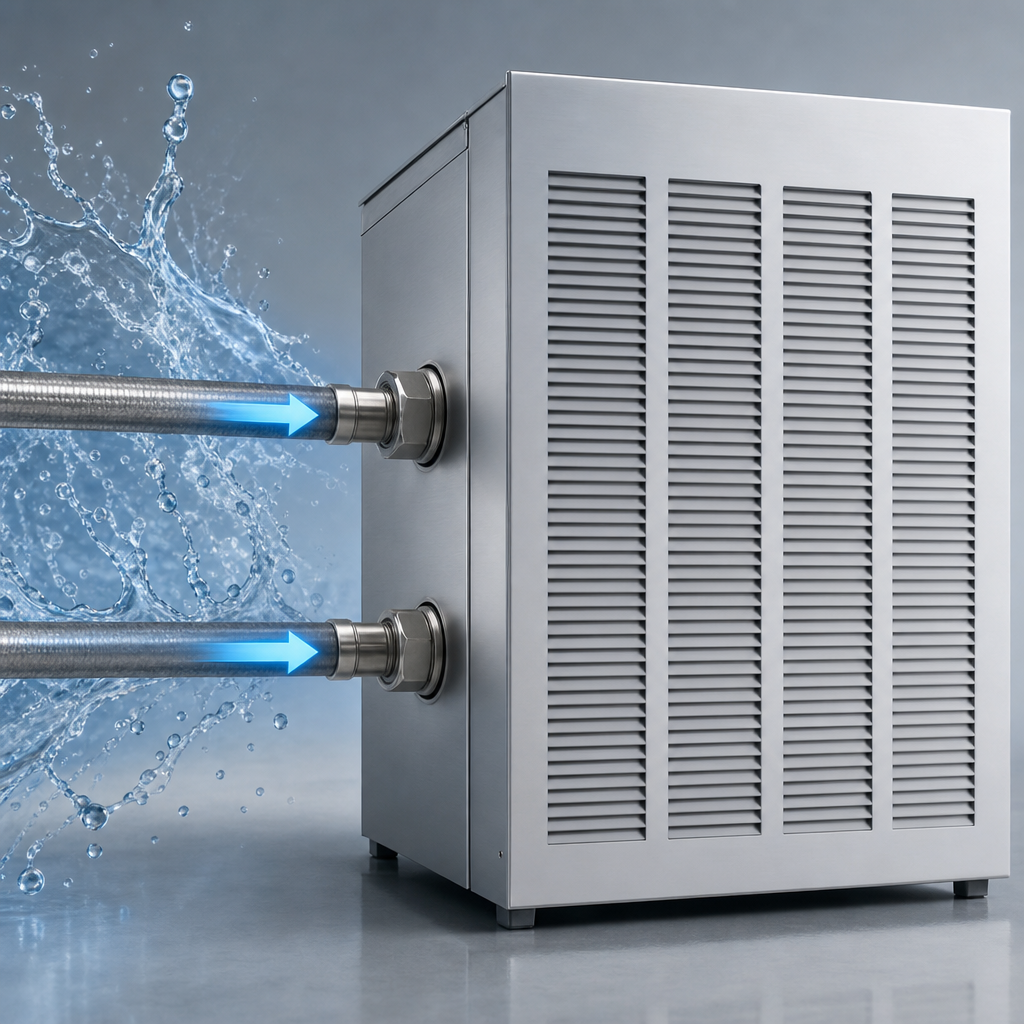

- Water-cooled, self-contained condenser — no hot exhaust air or side clearance required.
- SystemSafe® load monitoring shuts down the gearbox before damage can occur.
- Advanced water sensor prevents low- or no-water failures in challenging water conditions.
- Stainless-steel evaporator & auger with industrial-grade roller bearings for long-term reliability.
- Simple electromechanical controls are easy to service and inexpensive to maintain.
- Stainless-steel exterior wipes clean quickly and resists corrosion.
- Certifications: cULus, NSF & CE listed.
Performance & Utilities
| Ice type | Flake (moldable, 73 % ice / 27 % water) |
|---|---|
| Daily production | 940 lb / 426 kg (70 °F air / 50 °F water) |
| Condenser | Water-cooled, self-contained |
| Potable water usage | Approx. 105 gal per 100 lb of ice |
| Energy consumption | 3.2 kWh per 100 lb of ice |
| Electrical | 115 V / 60 Hz / 1-phase · MCA 20.9 A · Max fuse 30 A |
| Heat rejection | 6,330 BTU / hr (to cooling water) |
| Ambient temperature | 50 – 110 °F (10 – 43 °C) |
| Water temperature | 40 – 90 °F (4 – 32 °C) |
| Water pressure | 20 – 120 PSIG (1.4 – 8.3 bar) |
Dimensions
| Width | 21 in / 533 mm |
|---|---|
| Depth | 24 in / 610 mm |
| Height | 27 in / 686 mm (machine only) |
| Shipping weight | 200 lb / 91 kg (approx.) |
Recommended Ice Storage Bins
Choose the bin that matches your peak demand.

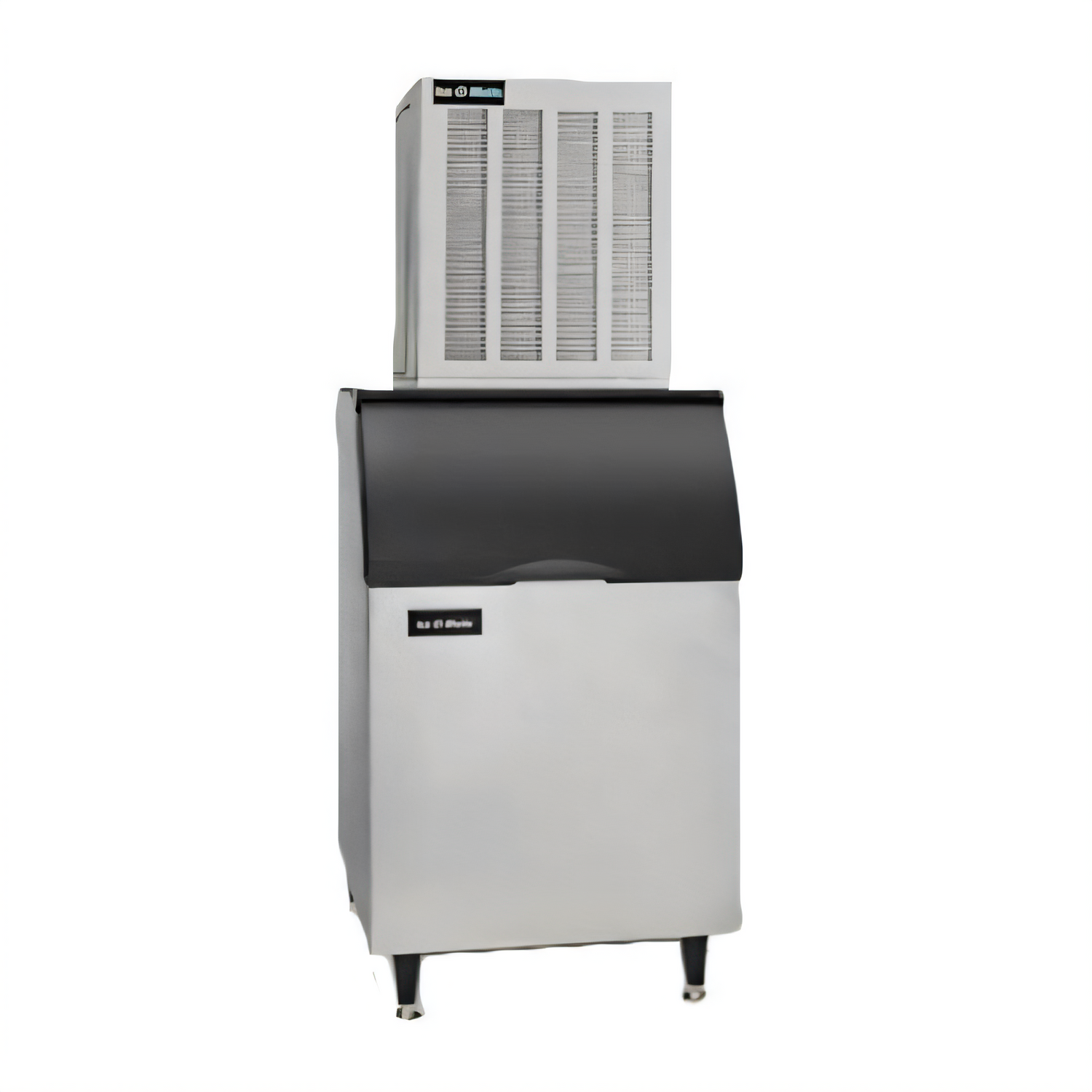

- B55 — 510 lb (232 kg) capacity, 30 in wide (installation shown above).
- B42 — 351 lb (160 kg) capacity, 22 in wide (requires KBT24 adapter kit).
- B700 / B110 series for larger back-of-house storage (adapter kits available).
Optional Accessories
- IFQ1 water-filter manifold & IOMQ cartridge — improves ice quality and extends warranty coverage.
- KBT adapter kits — securely mount the ice maker to narrower or wider bins.
Warranty
3-year parts & labor on the entire machine · 5-year parts on the compressor
