Ice-O-Matic MFI0500W Ice Machines
Description
Ice-O-Matic MFI0500W Flake Ice Maker – 541 lb/Day
Water-cooled • Self-contained condenser • Stainless steel finish • cULus & NSF listedNeed a high-volume, trouble-free source of soft, moldable flake ice in a space-conscious footprint? The 21 inch-wide Ice-O-Matic MFI0500W delivers up to 541 lb (245 kg) of fresh flake ice every 24 hours—perfect for seafood displays, salad bars, blended cocktails, healthcare applications, and more. Its water-cooled, self-contained condenser keeps heat and noise out of the kitchen while maximizing ice production even in demanding ambient conditions.
Why You’ll Love It
- Impressive output – up to 541 lb (245 kg) of flake ice per day at 70 °F air / 50 °F water.
- Ultra-compact – only 21 ″ W × 24 ″ D × 27 ″ H, ideal for tight back-of-house layouts.
- SystemSafe™ load monitoring protects the gearbox by shutting the machine down before a problem can cause costly damage.
- Advanced water sensor prevents low- or no-water failures and resists scale or mineral build-up.
- All-stainless evaporator & auger paired with industrial-grade roller bearings for years of reliable service.

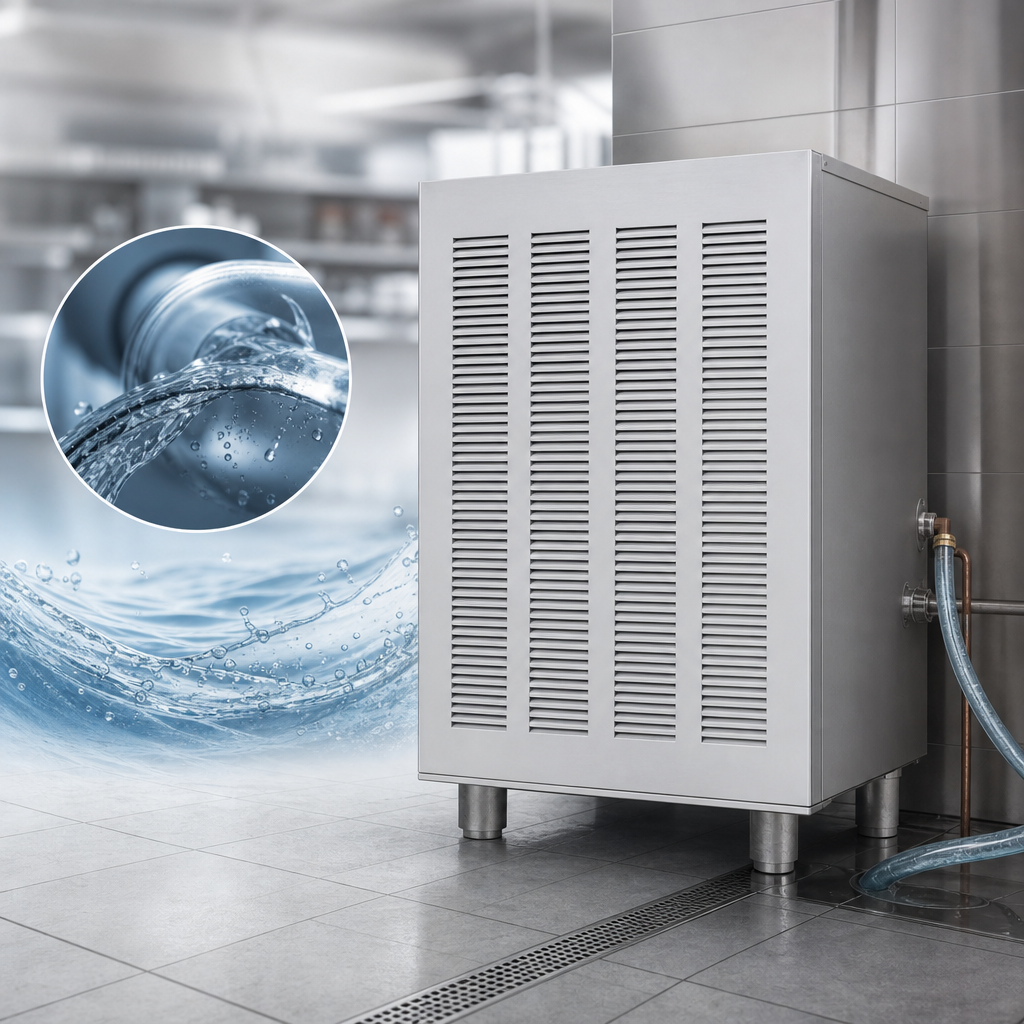

- Quiet, efficient water-cooled operation keeps surrounding air cooler and reduces energy use (self-contained condenser).
- Certified & ready – cULus and NSF approvals for regulated food-service operations.
Performance & Utilities

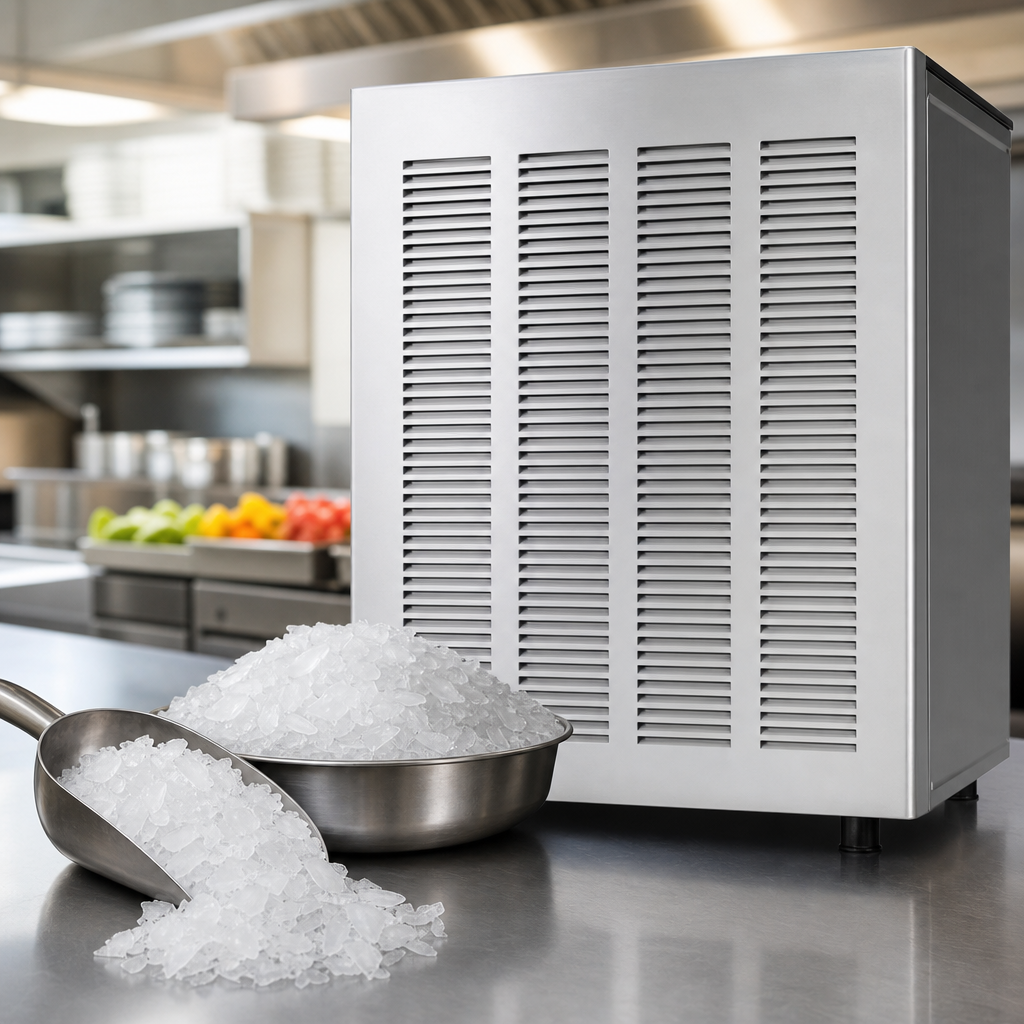

| Ice type | Flake (soft, slow-melting shards) |
|---|---|
| Daily production @ 70 °F air / 50 °F water | 541 lb (245 kg) / 24 hr |
| Daily production @ 90 °F air / 70 °F water | 456 lb (206 kg) / 24 hr |
| Cooling method | Water-cooled, self-contained condenser |
| Potable water usage | Approx. 12 gal per 100 lb of ice |
| Condenser water usage | Approx. 106 gal per 100 lb of ice |
| Energy consumption | 3.4 kWh per 100 lb of ice |
| Electrical | 115 V / 60 Hz / 1-phase, 13.8 A MCA, 20 A max fuse |
| Refrigerant | R-404A |
Dimensions & Clearances
| Machine footprint (W × D × H) | 21 ″ × 24 ″ × 27 ″ (533 × 610 × 686 mm) |
|---|---|
| Shipping weight | ≈ 205 lb (93 kg) |
| Water in / drain fittings | 3⁄8 ″ FPT (potable) • 3⁄4 ″ FPT (drain) • 3⁄8 ″ FPT condenser in • 1⁄2 ″ FPT condenser drain |
| Ambient temperature range | 50 °F – 100 °F (10 °C – 38 °C) |
| Water temperature range | 40 °F – 100 °F (4.4 °C – 38 °C) |
| Water pressure | 20 – 120 psi (1.4 – 8.3 bar) |
Choose Your Ice Bin (sold separately)

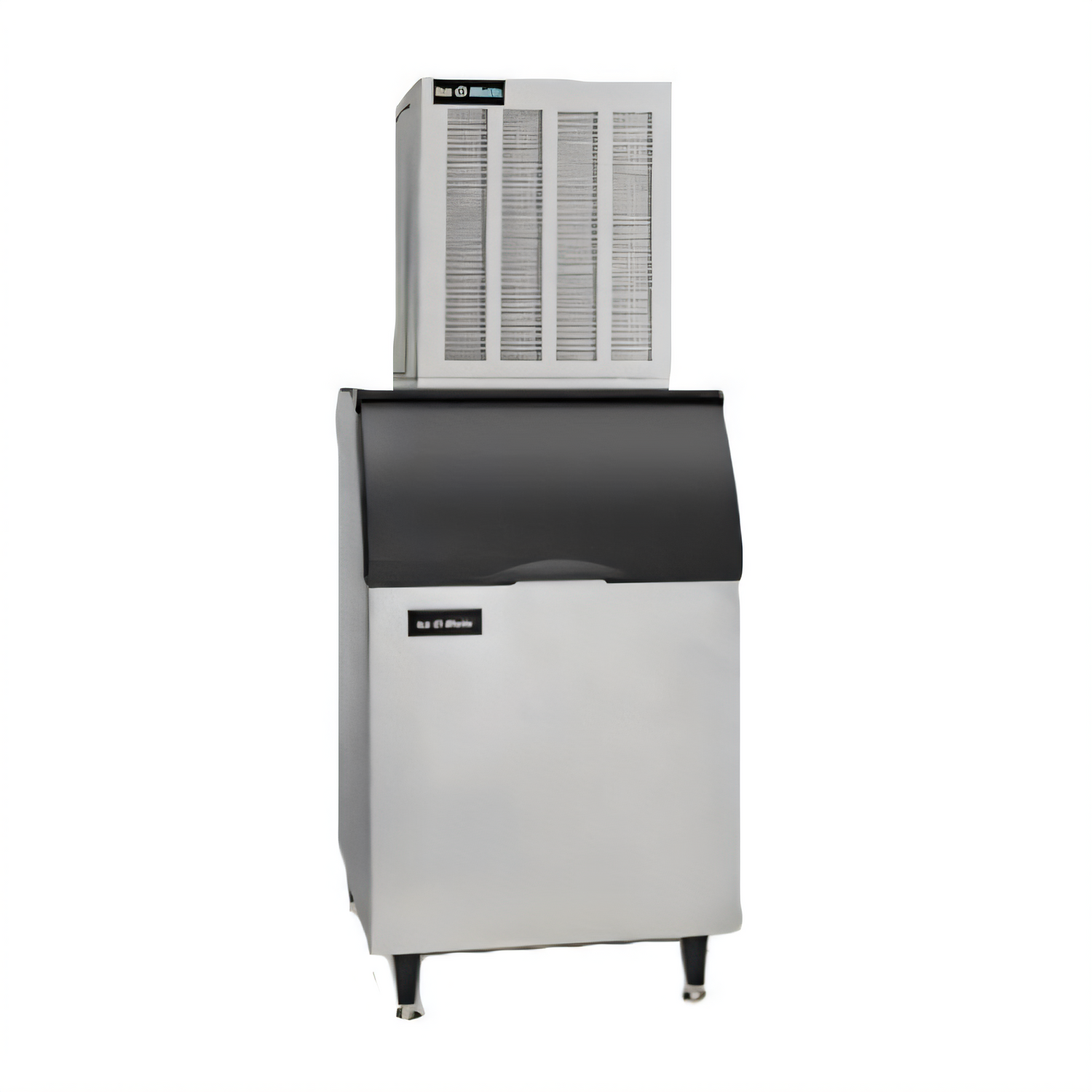

The MFI0500W head fits Ice-O-Matic bins B25, B40, B42 & B55 directly; adapter kits are available for larger models.
Industry-Leading Warranty
- 3 years parts & labor coverage on the entire ice maker.
- 5 years parts on the compressor.
Performance data and specifications supplied by Ice-O-Matic. Continuous product improvement may lead to changes without notice.
