Ice-O-Matic MFI0500A Ice Machines
Description

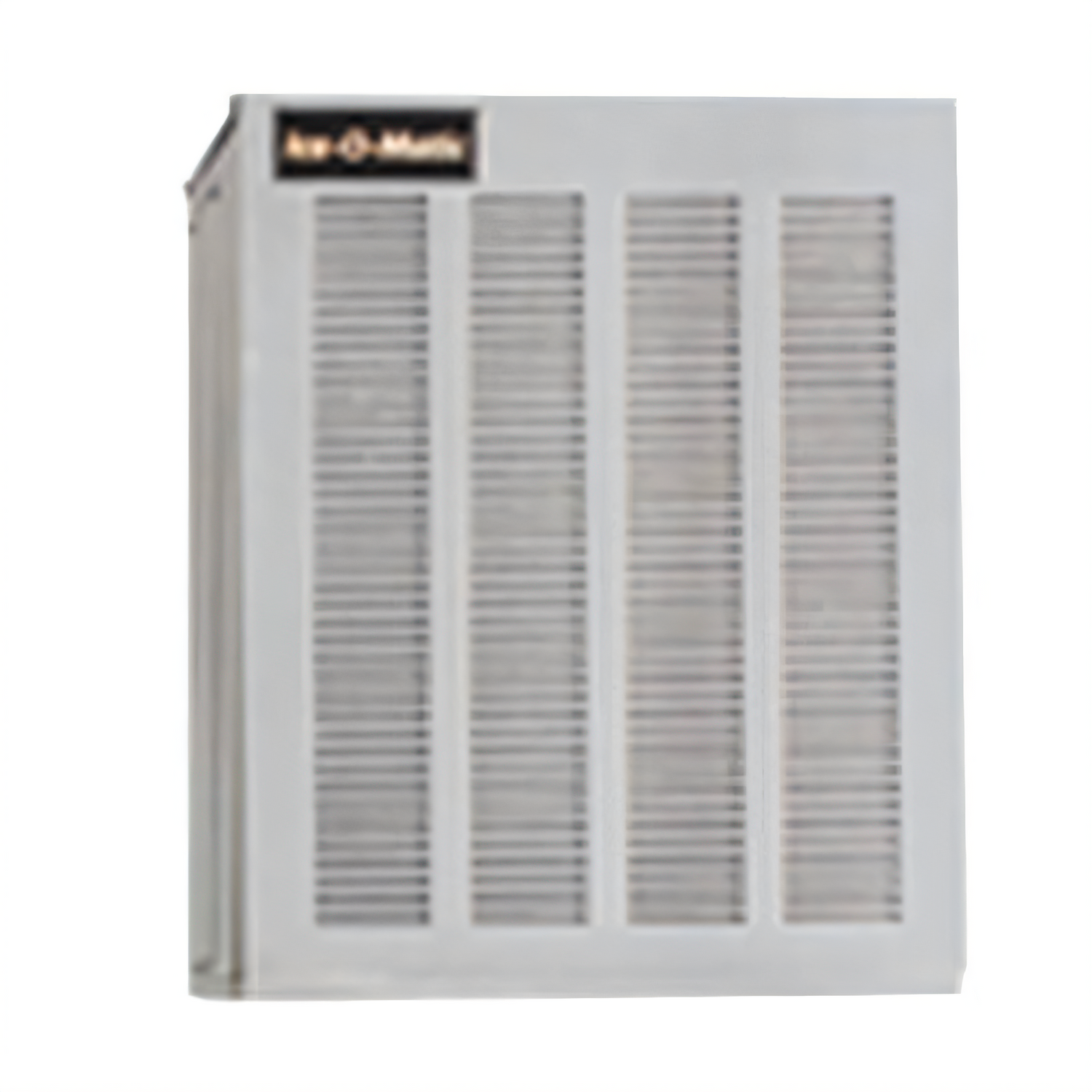

Ice-O-Matic MFI0500A 540-lb Flake Ice Maker
Air-Cooled • Self-Contained • 21" Stainless Steel HeadProduce up to 540 lb of soft, moldable flake ice every day in less than 2 sq ft of floor space. The compact MFI0500A pairs powerful performance with rugged construction—ideal for seafood displays, salad bars, healthcare hydration, and blended beverages.
Key Features
- High output: 540 lb (245 kg) per 24 hr at 70 °F air / 50 °F water.
- Space saver: only 21" W × 24" D × 27" H—fits on 22"–30" ice bins.
- SystemSafe™ load monitoring shuts the unit down before gearbox damage can occur.
- Advanced water sensor prevents low- or no-water failures and resists hard-water scale.
- Stainless steel evaporator & auger plus industrial-grade roller bearings for long service life.
- Sleek stainless exterior wipes clean and resists corrosion.
- cULus & NSF listed for safety and sanitation.
Technical Specifications
| Model | MFI0500A (air-cooled, self-contained) |
|---|---|
| Ice Type | Flake ice |
| Daily Production | 540 lb / 245 kg @ 70 °F air / 50 °F water 370 lb / 167 kg @ 90 °F air / 70 °F water |
| Dimensions (W × D × H) | 21" × 24" × 27" (533 × 610 × 686 mm) |
| Electrical | 115 V / 60 Hz / 1-phase, 3-wire (including ground) |
| Energy Usage | 4.9 kWh per 100 lb of ice |
| Water Usage | 12 gal potable water per 100 lb of ice |
| Min. Circuit Ampacity | 15.2 A |
| Max. Fuse/Breaker | 20 A |
| Refrigerant | R404A |
| Approx. Shipping Weight | 205 lb / 93 kg |
| Certifications | cULus, NSF |
Installation Notes
- Provide 6" (152 mm) clearance at front & rear for air intake/exhaust.
- Water connection: 3/8" FPT potable supply; Drain: 3/4" FPT gravity.
- Ambient temperature 50 – 100 °F (10 – 38 °C); Water temperature 40 – 100 °F (4.4 – 38 °C).
- Water pressure 20 – 120 PSIG (1.4 – 8.3 bar).

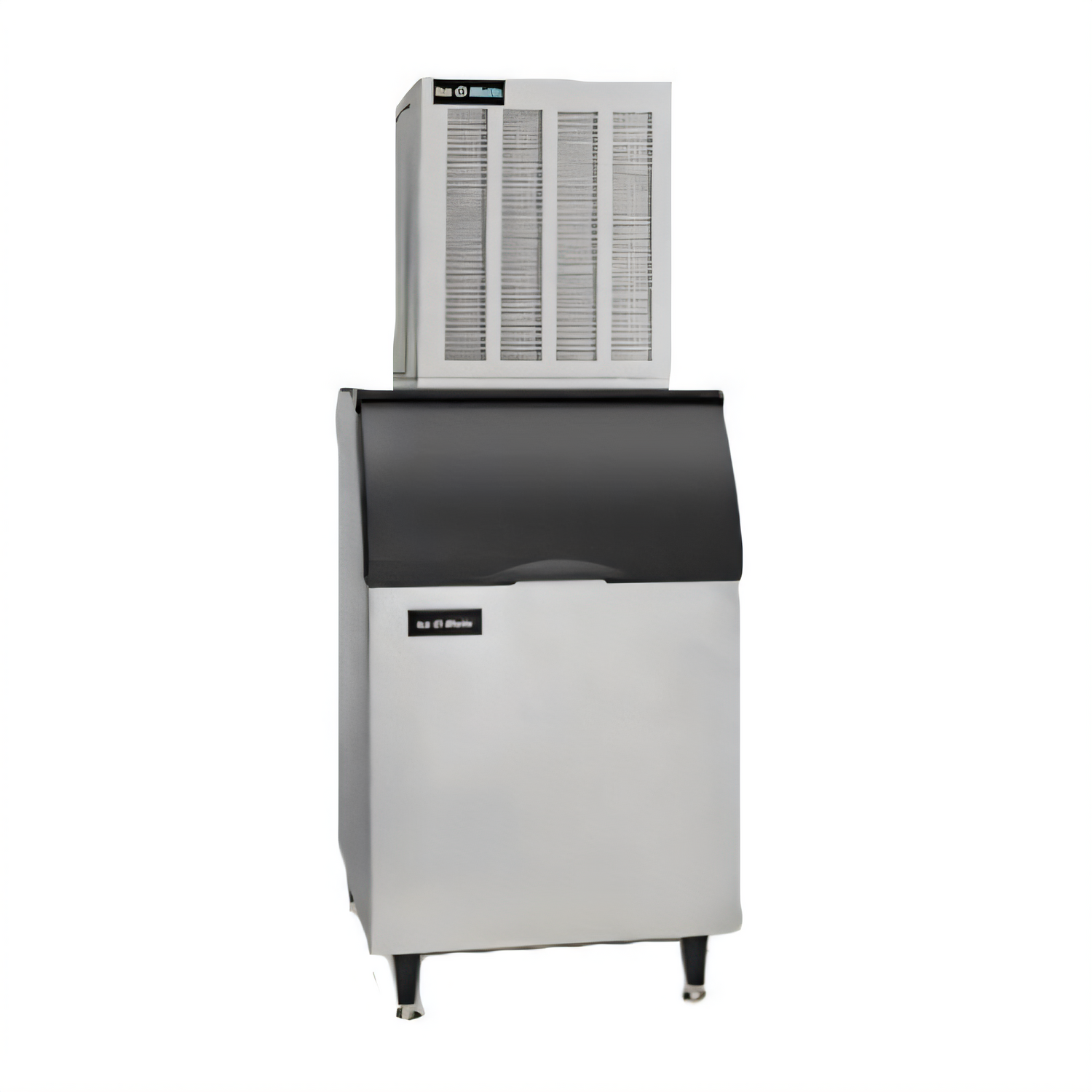

- Requires an ice storage bin (sold separately). Compatible Ice-O-Matic bins include B25, B40, B42, B55, B700 and more; adapter kits may be required.
Perfect For
- Seafood & meat merchandising
- Salad bars & cold food displays
- Produce departments
- Hospitals & long-term care facilities
- Smoothies, cocktails & specialty beverages
Warranty
Ice-O-Matic backs the MFI0500A with 3 years parts & labor on the entire machine and 5 years parts on the compressor.
Capacities are approximate and will vary with installation conditions. Storage bin, water filter and installation accessories sold separately.
