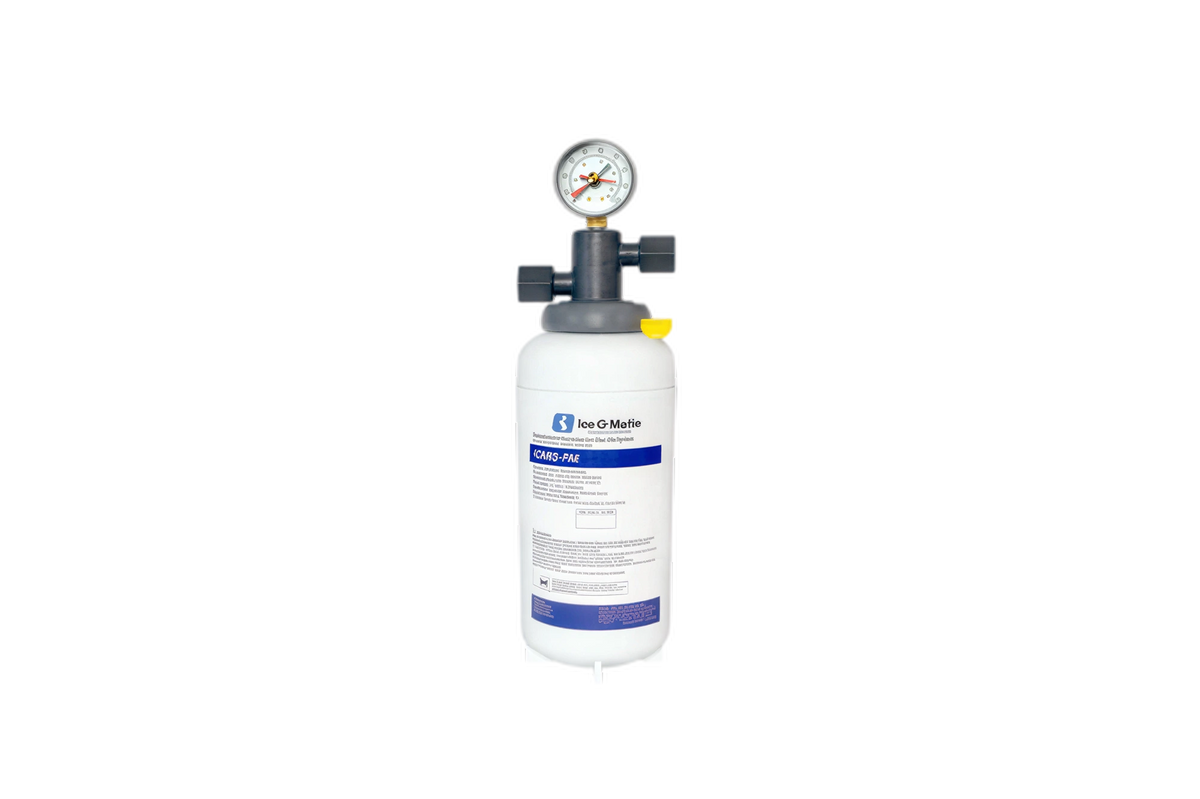

Ice-O-Matic IFQ1-FM Single-Cartridge Ice Maker Water Filter System, 3.0-Micron Reduction, 25,000-Gallon Capacity
- Filter type
- Single-cartridge water filter system
- Filter size
- Medium
- Filter quantity
- 1
- Application
- Continuous ice makers; flake, pearl, and quartz ice
- Designed ice production
- Up to 1,800 lb./day (816.5 kg/day)
- Micron rating
- 3.0 microns
Specifications
Description
The Ice-O-Matic IFQ1-FM is a medium, single-cartridge water filter system for continuous ice makers producing up to 1,800 lb. (816.5 kg) of ice per day in flake, pearl, and quartz applications.
It provides 3.0-micron particle reduction, a 25,000-gallon (94,635 L) capacity, and a 2.1 gpm (7.9 lpm) maximum flow rate. The system uses a dual-zone pleated prefilter with carbon block and is NSF Standard 42 certified.
- Polyphosphate-free filtration for continuous ice maker applications.
- Uses replacement cartridge IOMQ-FM.
Overall Dimensions:
8.0"W x 7.0"D x 16.0"HProduct Weight:
8.0 lb3.0-micron particle reduction
Provides particle reduction at a 3.0-micron rating.
Dual-zone filtration
Uses a dual-zone pleated prefilter with carbon block.
Polyphosphate-free design
The IFQ1-FM is identified as polyphosphate-free for continuous ice maker applications.
Sanitary quick-change cartridge
The system uses sanitary quarter-turn cartridge replacement without contact with the filter media.
1/2 in FNPT connections
Horizontal 1/2-inch FNPT connections support plumbing integration.
Replacement cartridge
The specified replacement cartridge is IOMQ-FM.
