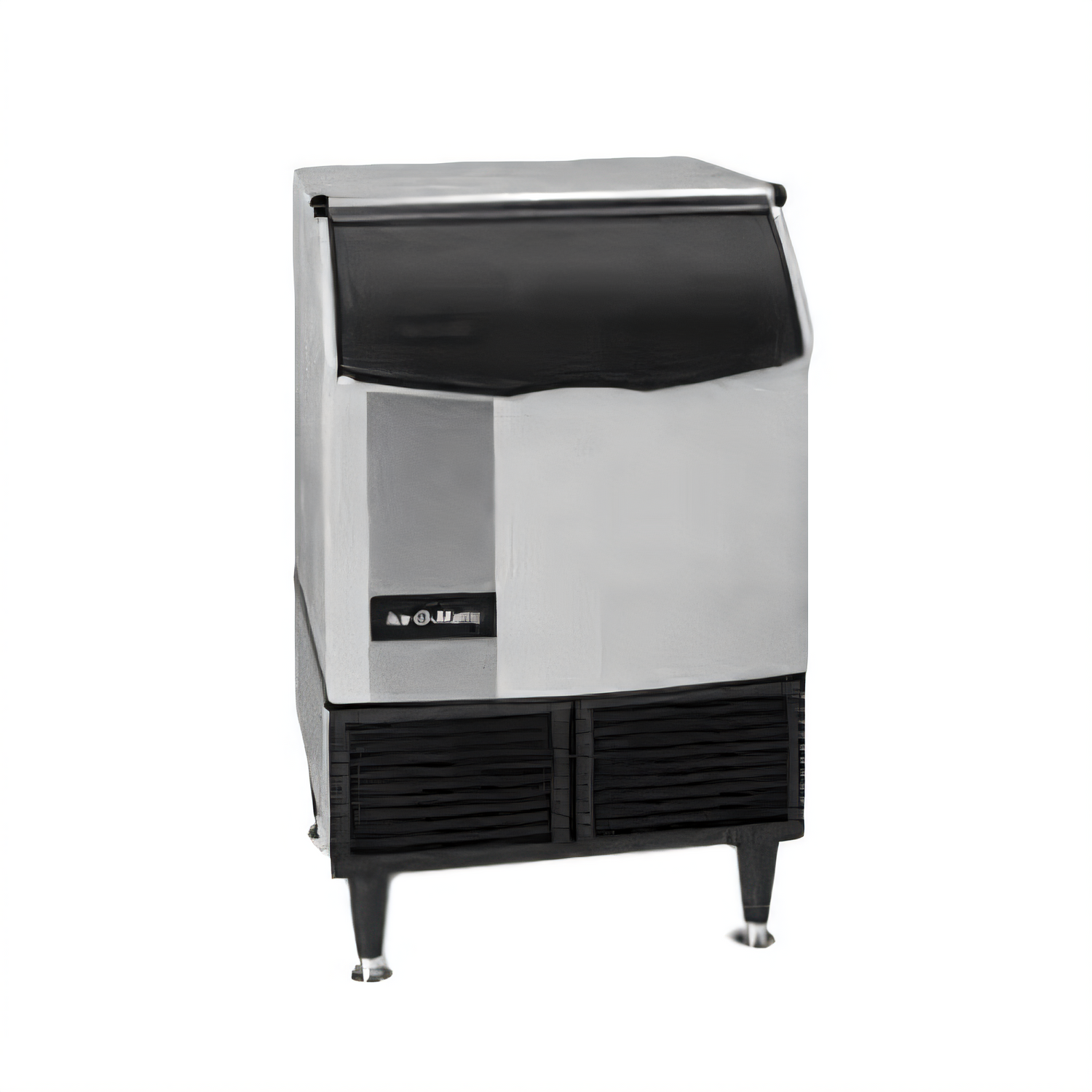

Ice-O-Matic ICE Series™ Undercounter Cube Ice Maker – Model ICEU226A
Air-cooled • Self-contained • Half-cube ice • 241 lb / 24 hrNeed big-volume ice production without surrendering floor space? The ICEU226A tucks neatly under the counter yet cranks out up to 241 lb of crystal-clear half-cube ice every day and stores 70 lb in its built-in bin. From craft cocktails to smoothie shops, it’s the perfect blend of capacity, hygiene, and reliability.
Key Advantages
- Space-saving 24 in. footprint with front-breathing air discharge—no side or rear clearance required.
- Harvest Assist™ speeds the harvest cycle, ensuring consistent ice output while lowering energy use.
- Pure Ice® antimicrobial protection is permanently infused into food-zone components to inhibit bacteria for the life of the machine.
- Electroless nickel-plated evaporator resists corrosion and extends service life.
- Durable stainless-steel cabinet with fingerprint-resistant door panel looks sharp in any front-of-house setting.
- Industry-leading 3-, 5-, and 7-year warranty coverage (see below).
Ice Performance
| Daily production (70 °F air / 50 °F water) | 241 lb | 109 kg |
|---|---|
| AHRI production (90 °F air / 70 °F water) | 166 lb | 75 kg |
| Ice type | Half-cube (⅜" W × ⅞" D × ⅞" H / 10 × 22 × 22 mm) |
| Storage bin capacity | 70 lb | 31.8 kg (built-in) |
Technical Specifications
| Model | ICEU226A (air-cooled) |
|---|---|
| Condenser | Self-contained, air-cooled |
| Dimensions (WxDxH) | 24.54" × 26.27" × 39" 623 × 667 × 991 mm (with legs) |
| Clearance required | None (front-breathing) |
| Electrical | 208-230 V / 60 Hz / 1-phase • MCA 6 A • Cord supplied |
| Energy consumption | 8.0 kWh per 100 lb of ice |
| Water consumption | 25 gal per 100 lb of ice (potable only) |
| Refrigerant | R404A |
| Certifications | cULus, NSF, CE |
| Shipping weight | 160 lb | 73 kg |
Best-in-Class Warranty
- 3 years parts & labor on the entire machine.
- 5 years parts on the compressor and evaporator.
- 7 years parts & labor on the evaporator when installed with a genuine Ice-O-Matic water filter and cartridges are changed every 6 months (USA & Canada).
Important: Maximum ambient temperature 100 °F (38 °C); water pressure 20–60 PSI.
Always install and start up the machine with a certified refrigeration technician to protect your warranty.
Ideal Applications
- Restaurant & bar under-bar stations
- Hotel suites & concierge lounges
- Cafés, juice & smoothie bars
- Corporate breakrooms & healthcare pantries
Ice capacity and energy usage are based on AHRI standard test conditions. Actual performance will vary with site-specific water and ambient temperatures.
$3,242.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Ice-O-Matic ICEU226HA undercounter cube ice maker: 241 lb/24hr production, 70 lb bin, air-cooled, NSF/cULus/CE certified for reliable commercial use.
Manufacturer
Ice-O-Matic
Brand name
ICE Series
Certifications
NSF, CE, cULus
Height
39.0in
Width
27.0in
Depth
29.0in
Shipping Weight
155.0lbs
Bin Storage Capacity
51 - 100 lb bin capacity
Condenser Type
air-cooled
Production per 24 hr
201 - 300 lb = 91 - 136 kg
Finish
stainless steel
Cube Type
half size/half dice
Specifications
ICE Series™ Cube Ice Maker, cube-style, undercounter, air-cooled, self-contained condenser, approximately 241 lb production/24 hours, 70 lb. built-in bin, half-size cube, cULus, NSF, CE
