Ice-O-Matic  |  ICE Series  |  SKU: ICEU226FA

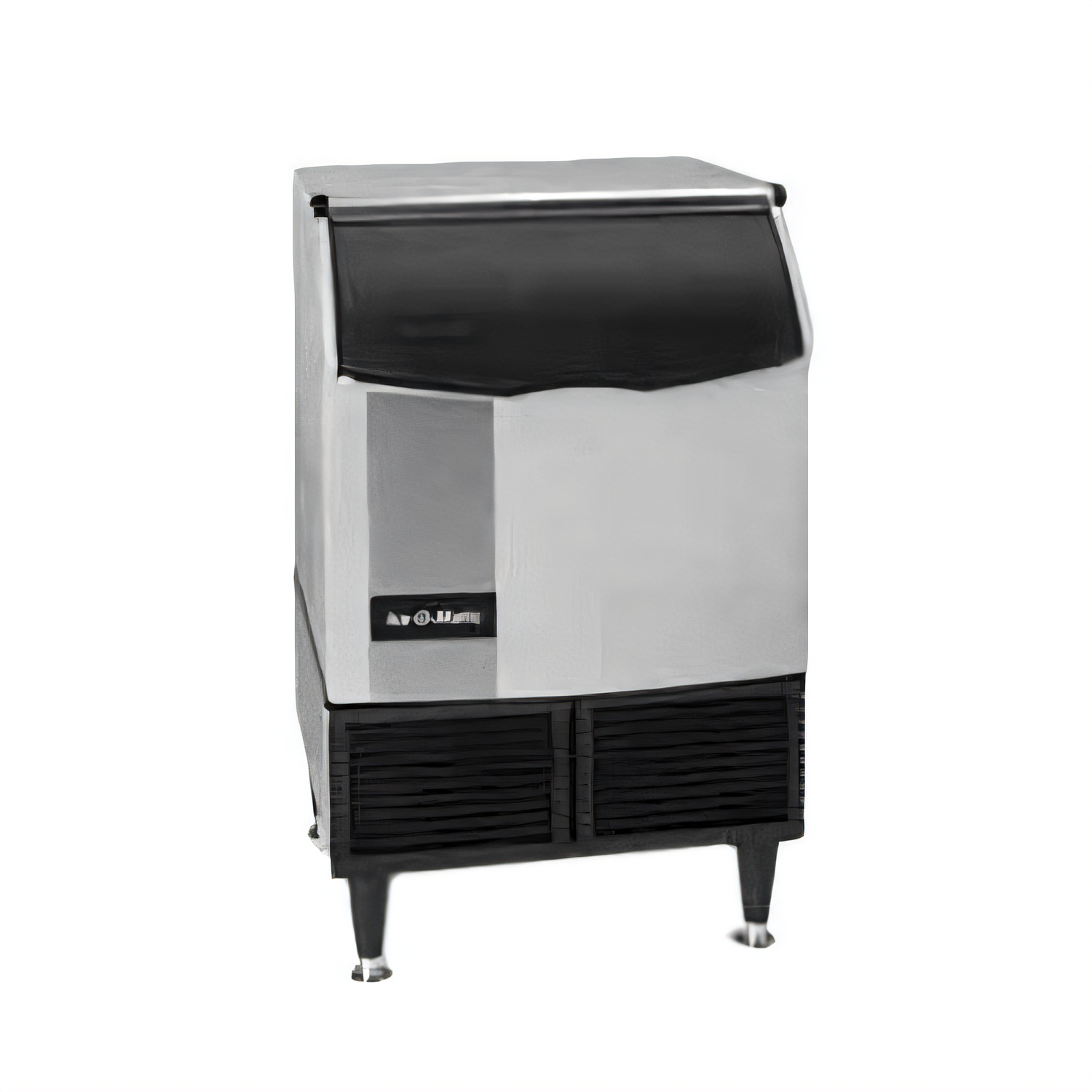

Ice-O-Matic ICEU226FA ICE Series Ice Machines

$3,380.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Slope front storage bins Service manual Owner's manual Web site Warranty sheet
Related Searches
Ice Machines Ice Makers & Bins

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Ice-O-Matic ICE Series Undercounter Cube Ice Maker  –  241 lb / 24 hr

Model ICEU226A • Air-Cooled • Self-Contained • Full-Size Cubes

Slide one of the industry’s most dependable ice makers right under your counter and keep up to 241 pounds of crystal-clear, full cubes flowing every day. A built-in 70 lb bin, energy-saving Harvest Assist, and Ice-O-Matic’s Pure Ice® antimicrobial protection make this ICE Series machine a powerhouse for bars, cafés and break-rooms that refuse to run out of ice.

Why You’ll Love It

  • Produces up to 241 lb (109 kg) of ice every 24 hours.
  • 70 lb (32 kg) built-in bin keeps service smooth during rush periods.
  • Harvest Assist shortens freeze cycles for lower energy use and consistent output.
  • Pure Ice® antimicrobial protection is molded into key components to inhibit bacteria for the life of the machine.
  • Front air intake & discharge allow zero-clearance installation in tight spaces.
  • Premium full-size cubes (⅞″ × ⅞″ × ⅞″) deliver slow melt and crystal clarity for cocktails, soft drinks and food displays.
  • Nickel-plated evaporator and stainless-steel cabinet resist corrosion in demanding environments.
  • Longest evaporator warranty in the business: up to 7 years parts & labor with Ice-O-Matic water filter program.
  • Certified for worldwide food-service safety: cULus • NSF • CE

Technical Specifications

Ice Production 241 lb / 24 hr (109 kg) at 70 °F air / 50 °F water
Storage Capacity 70 lb (32 kg) built-in bin
Ice Type Full Cube – ⅞″ × ⅞″ × ⅞″ (22 × 22 × 22 mm)
Cooling System Air-cooled, self-contained condenser
Dimensions (W × D × H) 24.54″ × 26.27″ × 39″ (623 × 667 × 991 mm) with legs
Electrical 208-230 V / 60 Hz / 1-phase • 15 A minimum circuit
Energy Usage ≈ 6.0 kWh per 100 lb of ice
Water Usage ≈ 25 gal potable per 100 lb of ice
Operating Ambient 50 °F – 100 °F (10 °C – 38 °C)
Water Temperature 40 °F – 100 °F (4 °C – 38 °C)
Water Pressure 20 – 60 psi (1.4 – 4.1 bar)
Refrigerant R404A

Perfect For

  • Restaurant & bar drink stations
  • Hotel pantries / room-service prep
  • Corporate break-rooms & micro-markets
  • Healthcare nourishment areas
  • C-store & grocery delis
Boost your warranty to 7 years! Add an Ice-O-Matic IFQ series water-filter kit at checkout and replace the cartridge every six months to activate the extended evaporator coverage (USA & Canada).

Production capacities are based on 70 °F (21 °C) ambient and 50 °F (10 °C) water temperatures. Actual performance will vary with site conditions.

Features & Specs

Manufacturer

Ice-O-Matic

Brand_name

ICE Series

Certifications

NSF, CE, cULus

Height

39.0in

Width

27.0in

Depth

29.0in

Shipping Weight

153.0lbs

Cube Type

full size/dice

Condenser Type

air-cooled

Bin Storage Capacity

51 - 100 lb bin capacity

Production per 24 hr

201 - 300 lb = 91 - 136 kg

Finish

stainless steel

Specifications

ICE Series™ Cube Ice Maker, cube-style, undercounter, air-cooled, self-contained condenser, approximately 241 lb production/24 hours, 70 lb. built-in bin, full-size cube, cULus, NSF, CE
