Ice-O-Matic ICEU220HA ICE Series Ice Machines
Description

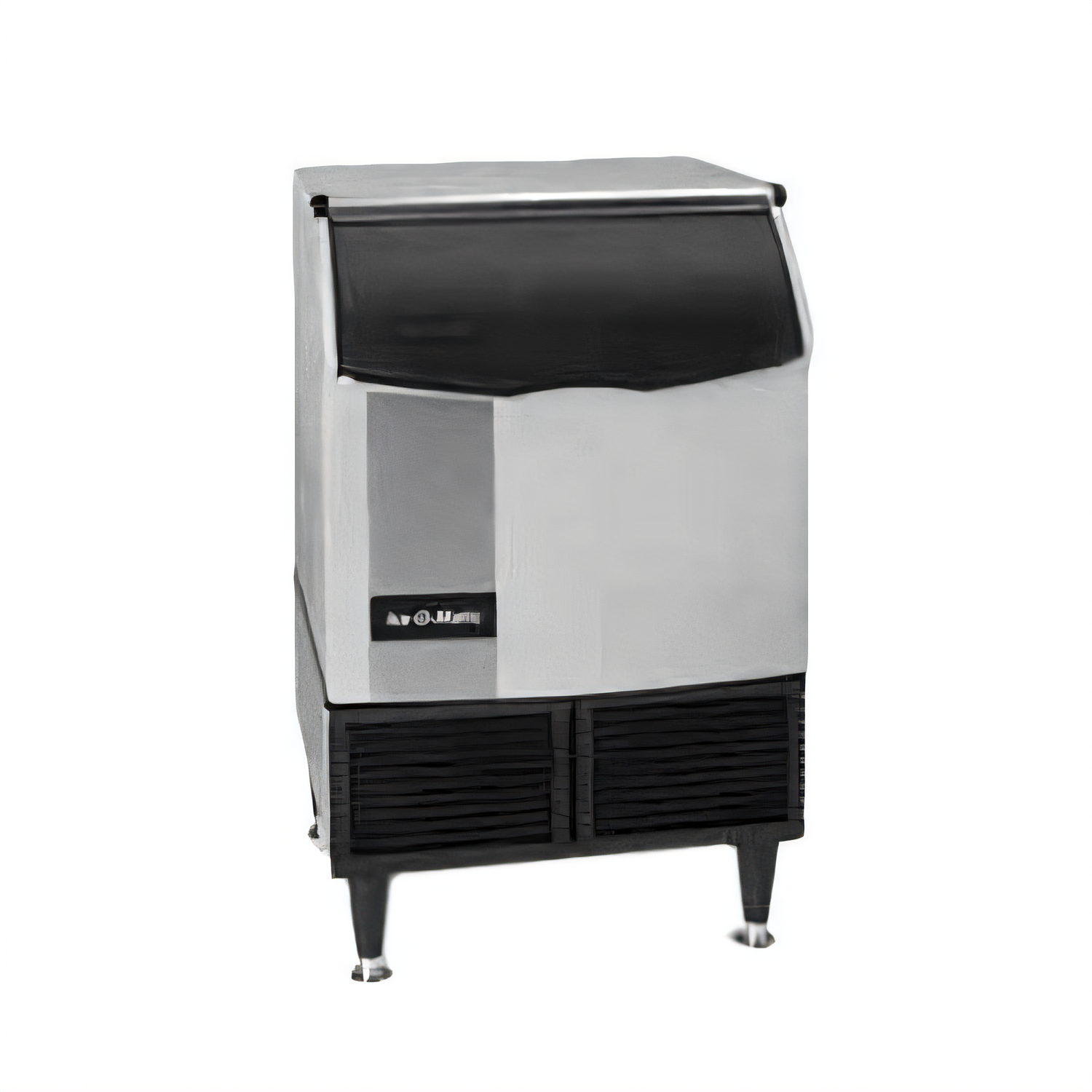

ICE-O-Matic ICE Series™ Undercounter Cube Ice Maker
Model ICEU220A – Half-Cube | Air-Cooled | Self-ContainedTurn any bar, café or break-room into a high-output ice station with the 24 inch-wide ICEU220A. This compact powerhouse delivers up to 238 lb (108 kg) of crystal-clear, half-cube ice every 24 hours and stores up to 70 lb (32 kg) in its built-in bin – all while fitting neatly under the counter.
Key Features & Benefits
- High daily production – up to 238 lb (108 kg) of ice in a 24-hour cycle (70 °F air / 50 °F water).
- 70 lb built-in bin keeps plenty of ice on hand for peak periods.
- Space-saving design – only 24.5″ W × 26.3″ D; front breathes & exhausts so no side clearance is needed.
- Harvest Assist Technology reduces energy use and maintains consistent production for the life of the machine.
- Pure Ice® antimicrobial protection is molded into key components to inhibit bacteria for the life of the unit.
- Nickel-plated evaporator plates resist corrosion for long-term reliability.
- Stainless-steel & fingerprint-resistant exterior stands up to busy commercial environments.
- Extended evaporator warranty – 7 years parts & labor when installed with Ice-O-Matic water filtration and cartridges are replaced every 6 months (U.S./Canada).
- cULus, NSF & CE listed for universal code compliance.
Half-Cube Ice – The Industry Standard
Dimensions per cube: 3/8″ W × 7/8″ D × 7/8″ H (10 × 22 × 22 mm) – perfect for soft drinks, mixed beverages and blended drinks.
Specifications
| Ice Production (24 hr) | Up to 238 lb / 108 kg |
|---|---|
| Ice Storage Capacity | 70 lb / 32 kg built-in bin |
| Condenser Type | Air-cooled, self-contained |
| Electrical | 115 V / 60 Hz / 1-phase, 15 A (cord & plug included) |
| Energy Use | 7.4 kWh per 100 lb of ice |
| Heat Rejection | Approx. 5,000 BTU/hr |
| Water Pressure | 20 – 60 psi (1.4 – 4.1 bar) |
| Ambient Temp. Range | 50 °F – 100 °F (10 °C – 38 °C) |
| Dimensions (W×D×H) | 24.54″ × 26.27″ × 39″ (623 × 667 × 991 mm) including adjustable legs |
| Refrigerant | R404A |
| Certifications | cULus, NSF, CE |
| Warranty | 3 yr parts & labor • 5 yr parts on compressor & evaporator • 7 yr parts & labor on evaporator with Ice-O-Matic filter program |
Why Choose Ice-O-Matic?
- Industry-leading warranty coverage for worry-free ownership.
- Global service network for quick, professional support.
- Simple, tool-free access for routine cleaning and maintenance.
Ice production ratings are based on 70 °F air / 50 °F water. Actual capacity will vary with site conditions. Specifications are subject to change without notice.
