Ice-O-Matic ICEU220FA ICE Series Ice Machines
Description

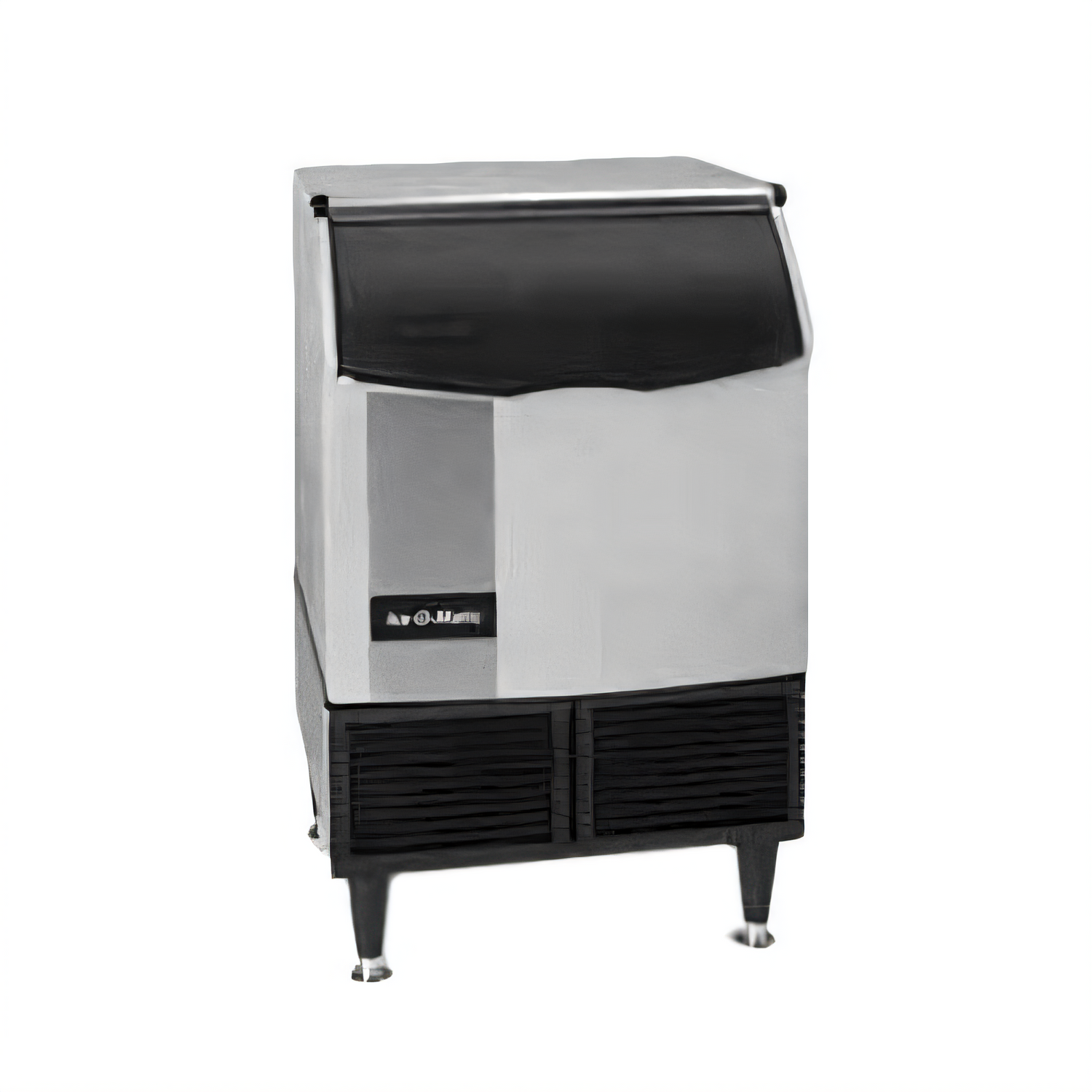

Ice-O-Matic ICE Series Undercounter Cube Ice Maker – 238 lb/Day
Model ICEU220A | Air-Cooled | Self-Contained | 70 lb Built-In BinDeliver crystal-clear, full-size cubes right where you need them. The 24-inch-wide ICE Series undercounter ice maker tucks neatly beneath bar tops and counters yet produces up to 238 lb (108 kg) of ice every 24 hours—ideal for restaurants, cafés, offices, and hospitality suites that demand high output from a small footprint.
Why You’ll Love It
- Space-saving 24 in (623 mm) undercounter design with front air intake & discharge—no side clearance required.
- Harvest Assist speeds the harvest cycle, boosting production while cutting energy use.
- Pure Ice® antimicrobial protection is built into interior surfaces to inhibit bacterial growth for the life of the machine.
- Electroless nickel-plated evaporator resists corrosion and carries the industry’s longest evaporator warranty—up to 7 years parts & labor*.
- Durable stainless-steel exterior with fingerprint-proof plastic trim stands up to busy, high-traffic environments.
- Produces slow-melting, full-size cubes (⅞ in × ⅞ in × ⅞ in | 22 mm × 22 mm × 22 mm) for maximum drink cooling.
- Certifications: cULus, NSF, CE — ready for use worldwide.
Performance & Utilities
| Ice production (24 hr, 70 °F air / 50 °F water) | 238 lb | 108 kg |
|---|---|
| Ice production (24 hr, 90 °F air / 70 °F water) | 165 lb | 75 kg |
| Ice type | Full-size cube |
| Storage capacity | 70 lb | 31.8 kg built-in bin |
| Condenser | Air-cooled, self-contained |
| Energy usage | 7.4 kWh / 100 lb of ice |
| Water usage | 11.9 gal (45 L) / 100 lb of ice |
| Refrigerant | R404A |
| Electrical | 115 V | 60 Hz | 1-phase (cord & plug included) |
Installation Requirements
- Ambient temperature: 50 °F – 100 °F (10 °C – 38 °C)
- Water temperature: 40 °F – 90 °F (4 °C – 32 °C)
- Water pressure: 20 – 60 psi (1.4 – 4.1 bar)
- Plumbing connections: ⅜-in FPT potable water inlet, ¾-in FPT gravity drain
- Overall dimensions (W × D × H): 24.5 in × 26.3 in × 39 in
(623 mm × 667 mm × 991 mm, incl. 6-in adjustable legs)
Need a different condenser or voltage? Water-cooled and 208-230 V models are also available—contact us for options.
Industry-Leading Warranty
- 3 year parts & labor on the entire machine
- 5 year parts on the compressor & evaporator
- *7 year parts & labor on the evaporator when installed with an Ice-O-Matic filter and cartridges are replaced every 6 months (USA & Canada)
