Ice-O-Matic

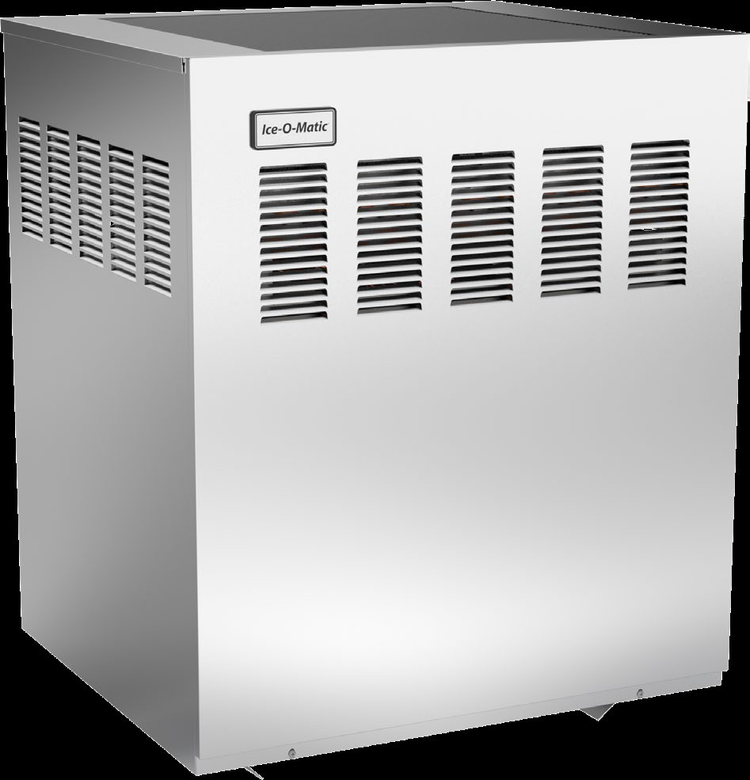

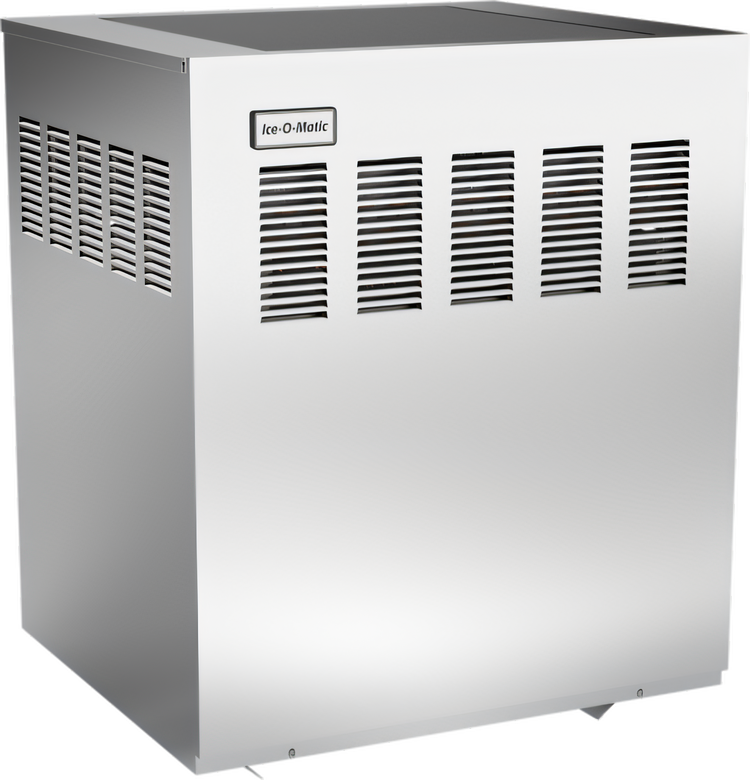

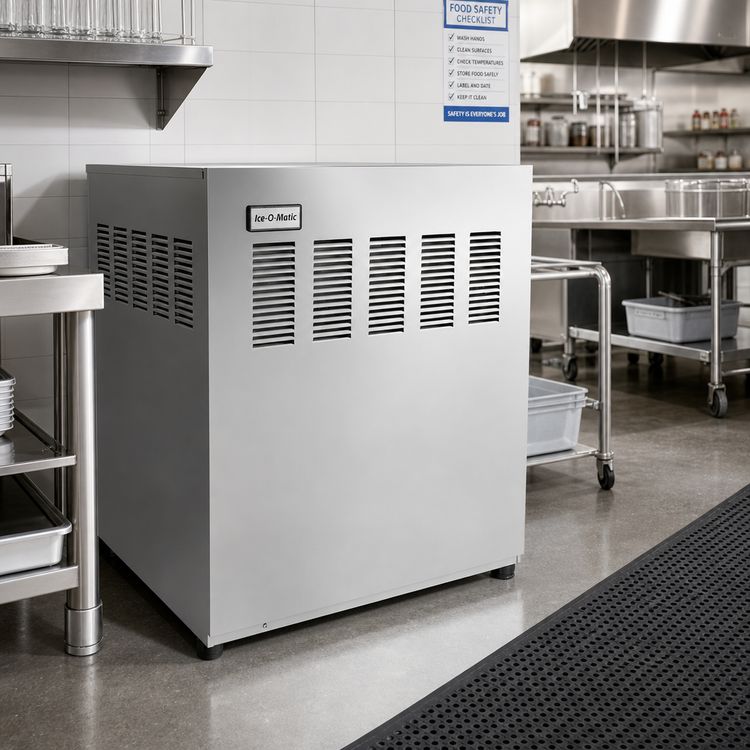

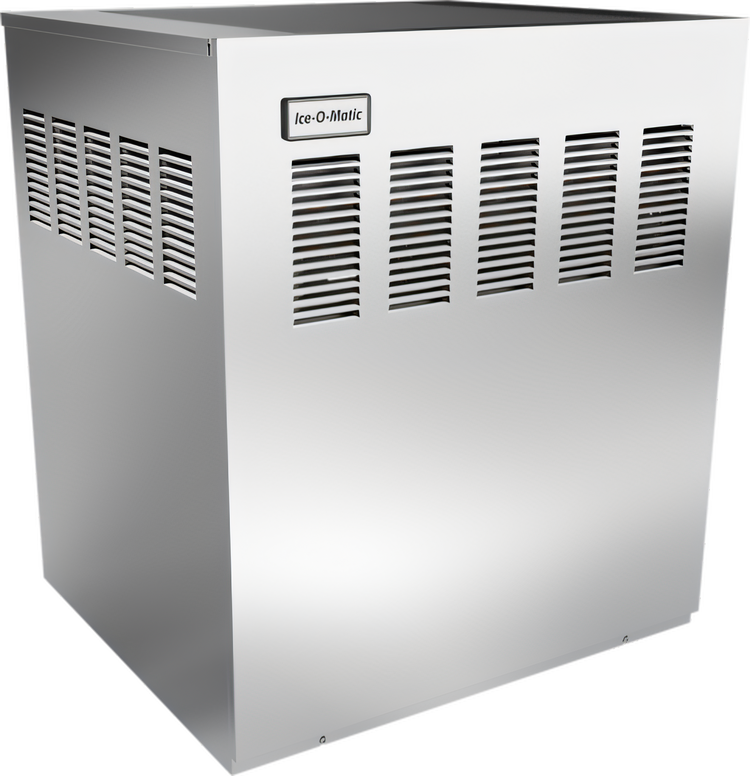

Ice-O-Matic ICE Series Modular Half-Dice Cube Ice Maker, Air-Cooled, 1,310 lb/Day

SKU: ICE1506HT49
$8,678.18
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Ice-O-Matic ICE Series Modular Half-Dice Cube Ice Maker, Air-Cooled, 1,310 lb/Day

30 Inch Wide, Self-Contained R449A Refrigeration, 208-230V

Built for high-volume kitchens, this modular ice maker uses Harvest Assist to deliver consistent half-dice cubes while helping reduce energy use.

  • Produces up to 1,310 lb of half-dice ice per day at 70°F air / 50°F water conditions.
  • Harvest Assist helps maintain consistent production while lowering operating cost.
  • Air-cooled, self-contained refrigeration with top air discharge.
  • Stainless steel construction with electroless nickel-plated evaporator plates for durability.
  • Includes ice level and ice deflectors for bin and dispenser applications.
  • 30-inch-wide modular design for high-output ice production.

Overall Dimensions:

30.4"W x 26.3"D x 22.03"H

Product Weight:

303.0 lb

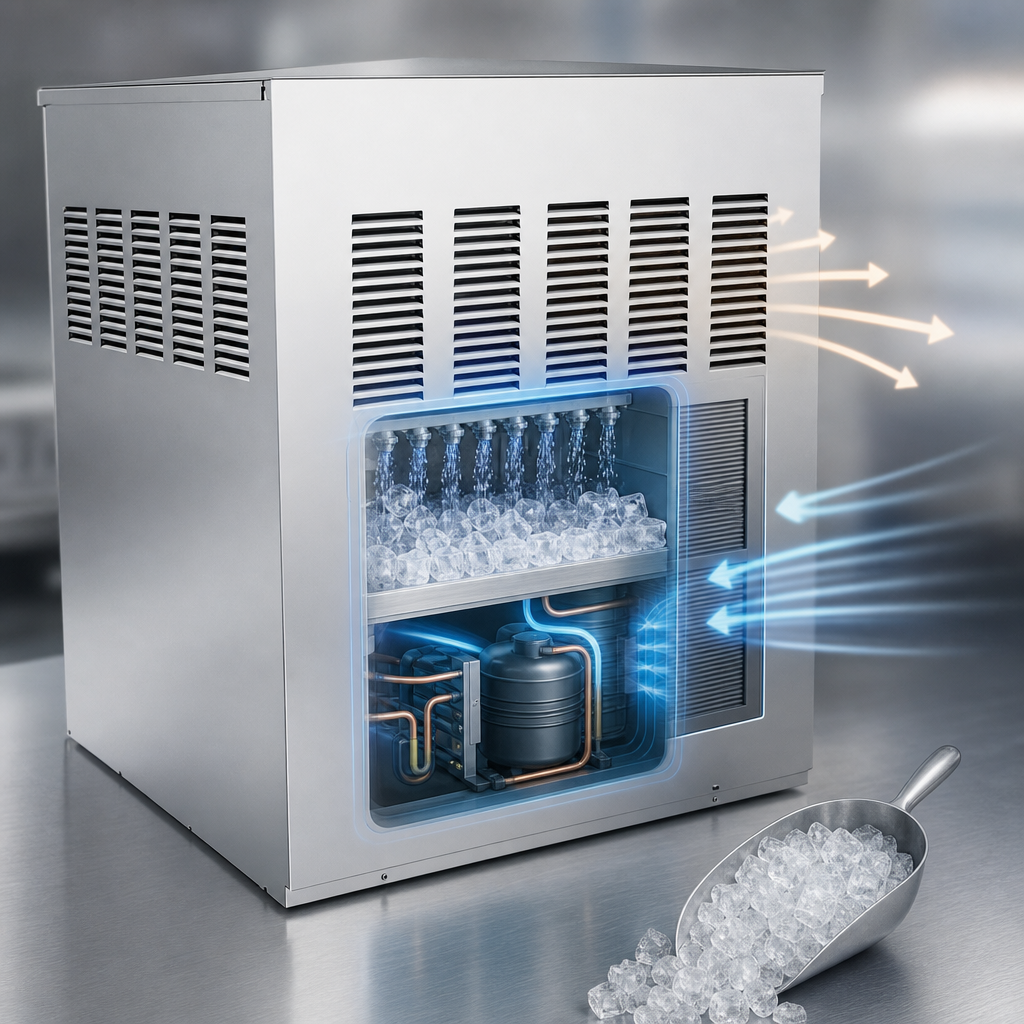

Harvest Assist Technology

Helps produce consistent ice output over the life of the machine while reducing energy consumption and increasing capacity.

Harvest Assist Technology

Half-Dice Cube Ice Form

Produces half-size cubes measuring 3/8 x 7/8 x 7/8 in. (10 x 22 x 22 mm).

Half-Dice Cube Ice Form

High Production 30-Inch Design

A high-output cuber in a compact 30-inch-wide footprint.

Stainless Steel Construction

Corrosion-resistant stainless steel helps support long-term durability.

Electroless Nickel-Plated Evaporator Plates

Durable evaporator plating is designed to improve reliability.

Ice Level and Deflectors

Equipped for use with both bin and dispenser applications.

Air-Cooled, Self-Contained Refrigeration

Uses an air-cooled condensing system with self-contained refrigeration.

Top Air Discharge

Top air discharge helps direct exhaust air away from the unit.

Type Modular Cube Ice Maker
Style Half Dice Cube
Condenser Type Air-Cooled
Refrigeration Type Self-Contained
Production per 24 Hr 1,310 lb at 70°F Air / 50°F Water; 1,070 lb at 90°F Air / 70°F Water
Voltage 208-230 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 19 Amps
Breaker Size 30 Amps
BTU 21,700 BTU per Hour
Refrigerant Type R449A
Water Connection Required
Drain Connection Required
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 3/4 Inch FPT
Material Stainless Steel
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor on the ice maker; 5 years parts on the evaporator and compressor.

Frequently Asked Questions

It produces half-cube ice measuring 3/8 x 7/8 x 7/8 in. (10 x 22 x 22 mm).
Approximately 1,310 lb per 24 hours at 70°F air / 50°F water, or 1,070 lb per 24 hours at 90°F air / 70°F water.
The unit requires 208-230V, 60 Hz, single-phase power, with a 19A minimum circuit and a 30A maximum breaker.
Yes. It is an air-cooled, self-contained unit with top air discharge.
The bin chart lists B40, B55, B700-30, B110 (with BPF-1), B1000-48, B1300-48, B1325-60, and B1660-60.
The document lists KCUBEDISPB ice level control for dispensers and the IFQ2 manifold system with IOMQ replacement filters.
