Ice-O-Matic ICE1506HT ICE Series Ice Machines
Description

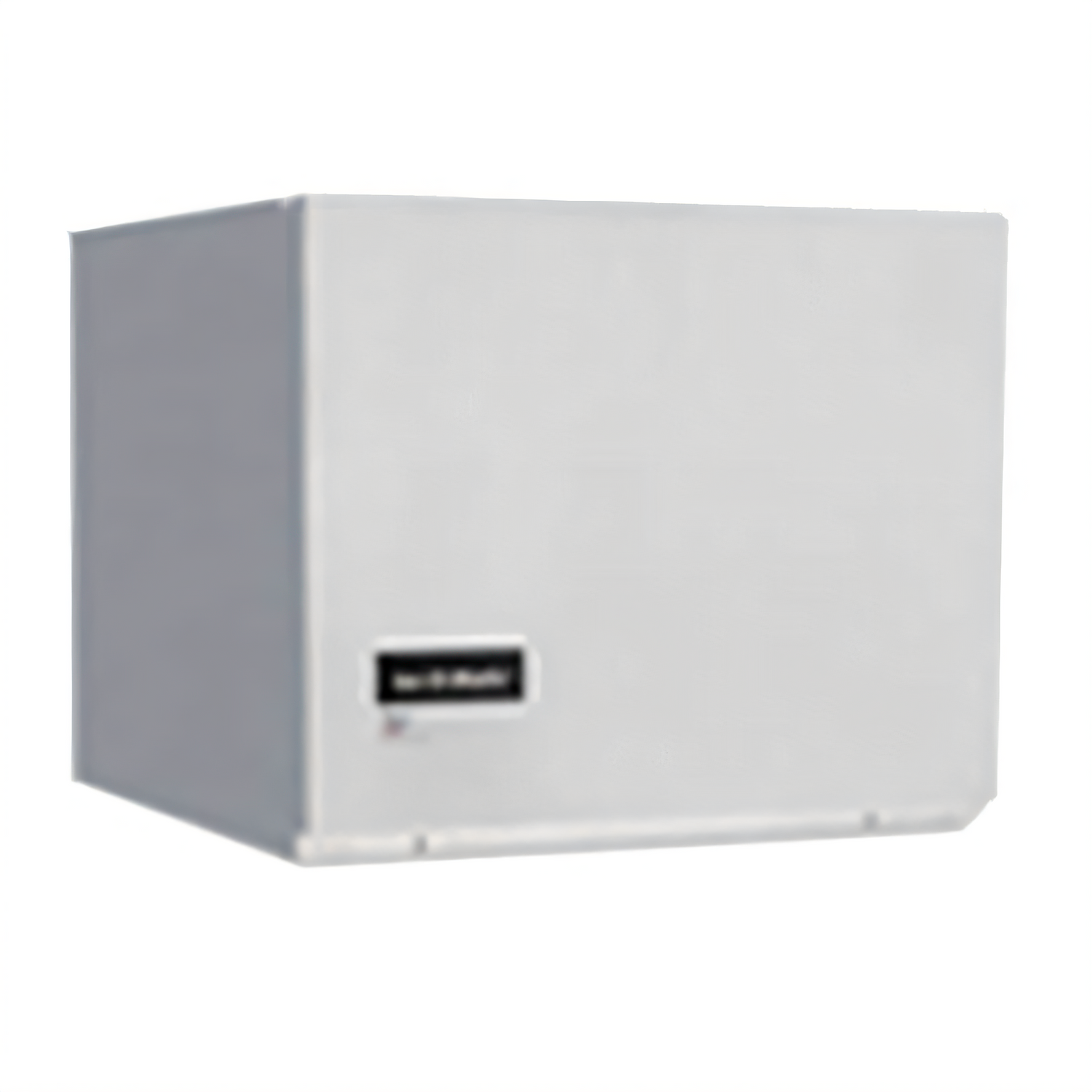

Ice-O-Matic ICE Series ICE1506HT Modular Cube Ice Maker
30" Slimline | Air-Cooled, Top-Air Discharge | ≈ 1,430 lb Half-Cube Ice / 24 hrWhen you need big-league ice production without giving up precious floor space, the ICE1506HT delivers. Its 30-inch wide, top-air-discharge design slides easily into crowded kitchens and behind-the-bar installs, churning out up to 1,430 lb of crystal-clear half-cube ice every day while using less energy, less water, and zero air filters.
Why You’ll Love It
- Massive output: 1,430 lb (649 kg) of ice at 70 °F air / 50 °F water; 1,125 lb at 90 °F / 70 °F.
- Top-air discharge: Exhausts upward, allowing installation with just 2" side and rear clearance.
- 30" Slimline cabinet: Fits a wide range of 30" and 48" Ice-O-Matic storage bins or beverage dispensers.
- Filter-free air flow: No air filters to clean or replace—ever.
- Pure Ice® antimicrobial protection: Built-in surface treatment inhibits bacteria growth for the life of the machine.
- Harvest Assist: Consistent ice harvests, lower operating costs, and reduced wear on components.
- Built to last: Stainless steel exterior and electroless nickel-plated evaporator plates resist corrosion.
- Bin & dispenser ready: Factory-installed ice level and ice deflectors included.
- Certified safe: cULus & NSF listed; AHRI certified performance.
Performance & Electrical
| Daily Ice Production @ 70 °F/50 °F | 1,430 lb (649 kg) |
|---|---|
| Daily Ice Production @ 90 °F/70 °F | 1,125 lb (510 kg) |
| Ice Cube Type | Half Cube – ⅜" × ⅞" × ⅞" (10 × 22 × 22 mm) |
| Condenser | Air-cooled, top discharge |
| Energy Usage | 4.6 kWh per 100 lb of ice |
| Water Usage | 20 gal (76 L) per 100 lb of ice |
| Dimensions (W × D × H) | 30.4" × 26.3" × 34.39" (772 × 668 × 874 mm) |
| Electrical | 208–230 V / 60 Hz / 1 ph |
| Minimum Circuit Ampacity | 23 A |
| Max Fuse / Breaker | 30 A |
| Refrigerant | R404A |
| Approx. Heat Rejection | 20,000 BTU/hr |
| Shipping Weight | 310 lb (141 kg) |
| Certifications | cULus, NSF |
Pair It With These Ice-O-Matic Bins (sold separately)
- B25 – 242 lb (110 kg) storage • 30" W • No adapter required
- B40 – 344 lb (156 kg) storage • 30" W • No adapter required
- B42 – 351 lb (160 kg) storage • 22" W • No adapter required
- B55 – 510 lb (232 kg) storage • 30" W • No adapter required
-
B110 – 854 lb (388 kg) storage • 48" W • Use bin-top kit
BPF-1
Industry-Leading Warranty
- 3 year parts & labor coverage on the entire ice maker
- 5 year parts coverage on the evaporator & compressor
- 7 year parts & labor on the evaporator when installed with Ice-O-Matic water filtration and filters are changed every 6 months (USA & Canada)

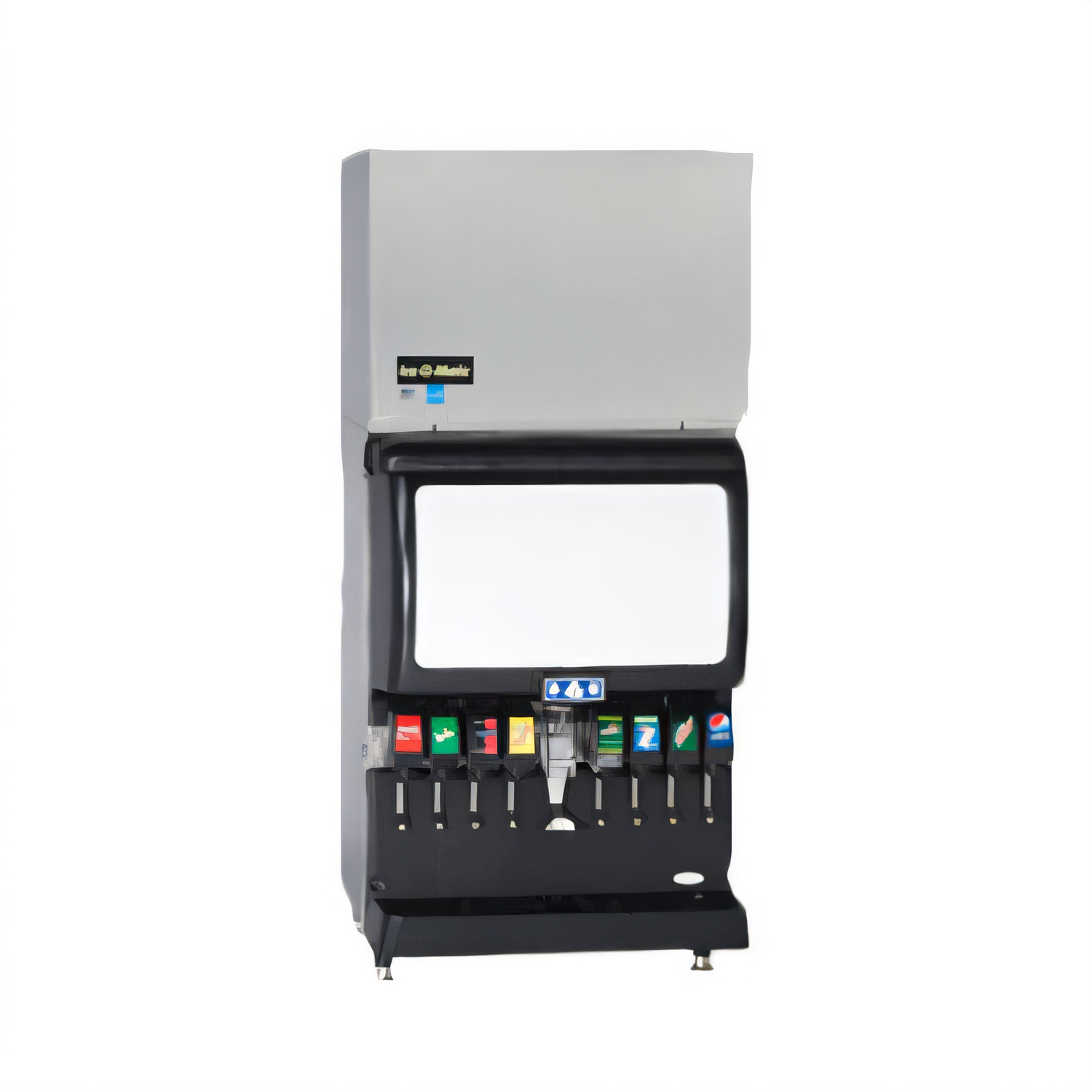

Minimum 2" (51 mm) clearance required on all sides for air intake and service. When mounting on a beverage dispenser, install adapter KCUBEDISPB.
