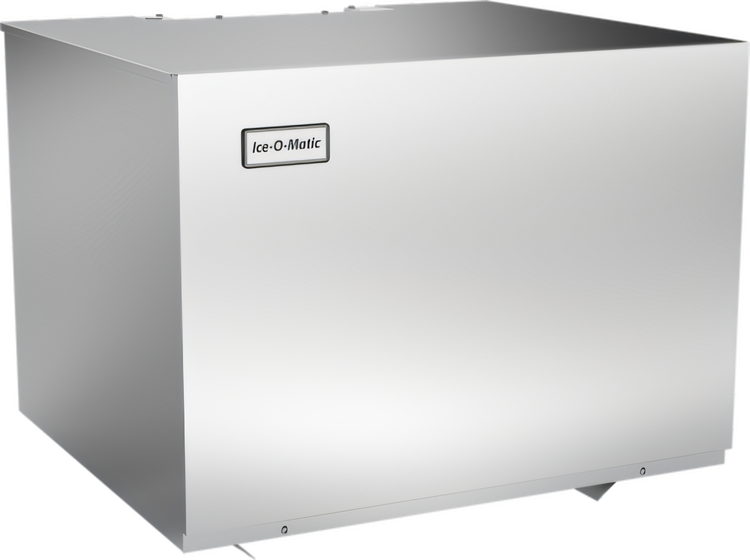

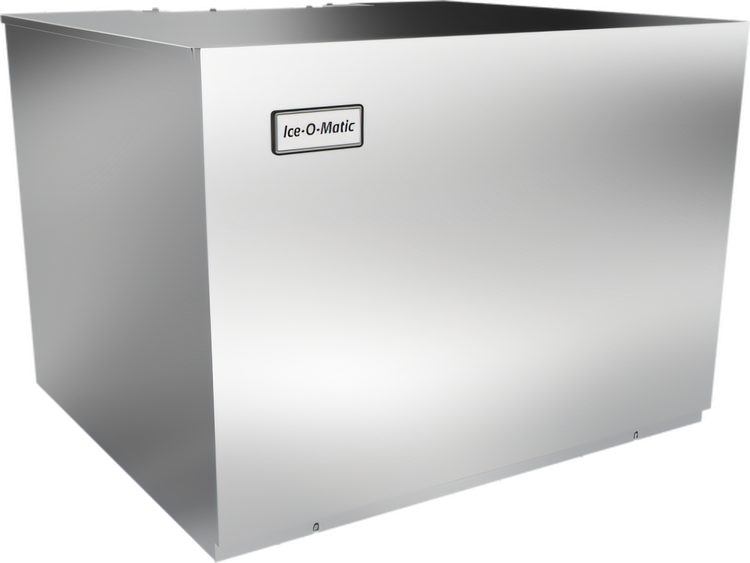

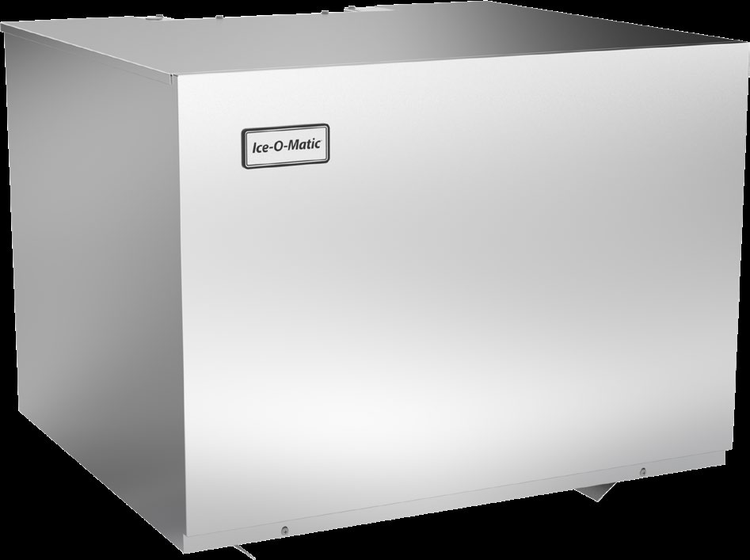

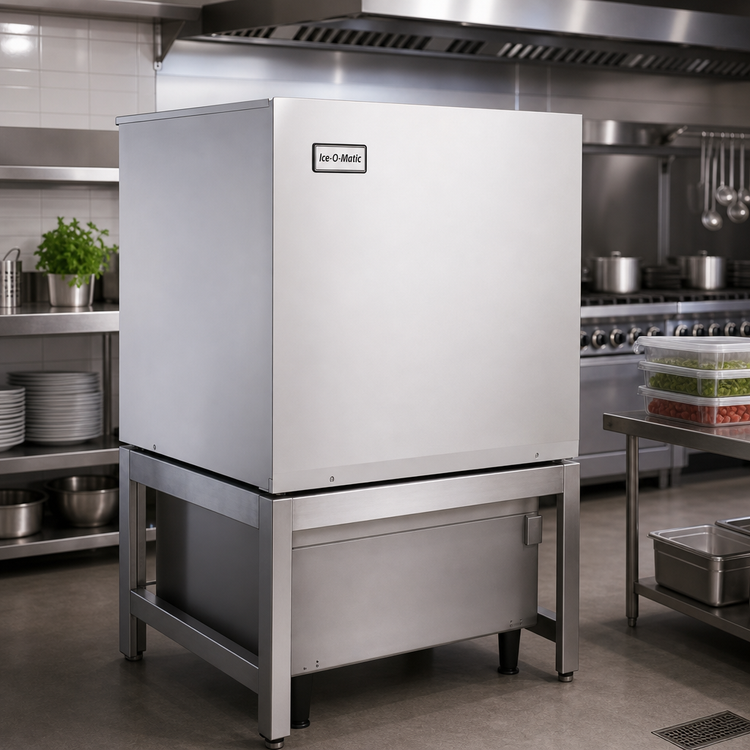

Ice-O-Matic ICE Series 30-Inch Wide Modular Half Cube Ice Maker Head, Remote Cooled, 1,228 lb/Day

208-230V, 1-Phase, Remote Condenser Required

Built for high-volume service, this remote-cooled modular head uses Harvest Assist to deliver consistent half-cube ice while helping lower energy consumption.

  • Produces up to 1,228 lb of half-size cube ice per 24 hours at 70°F air / 50°F water.
  • Harvest Assist technology helps maintain consistent ice production while reducing operating costs.
  • 30-inch-wide stainless steel construction is designed for durability in demanding commercial kitchens.
  • Remote-cooled design pairs with the RC306C49 condenser and RL49-series precharged linesets.
  • Includes ice level and ice deflectors for both bin and dispenser applications.
  • Uses R449A refrigerant and operates on 208-230V, 1-phase power.

Overall Dimensions:

30.4"W x 26.3"D x 22.03"H

Product Weight:

263.0 lb

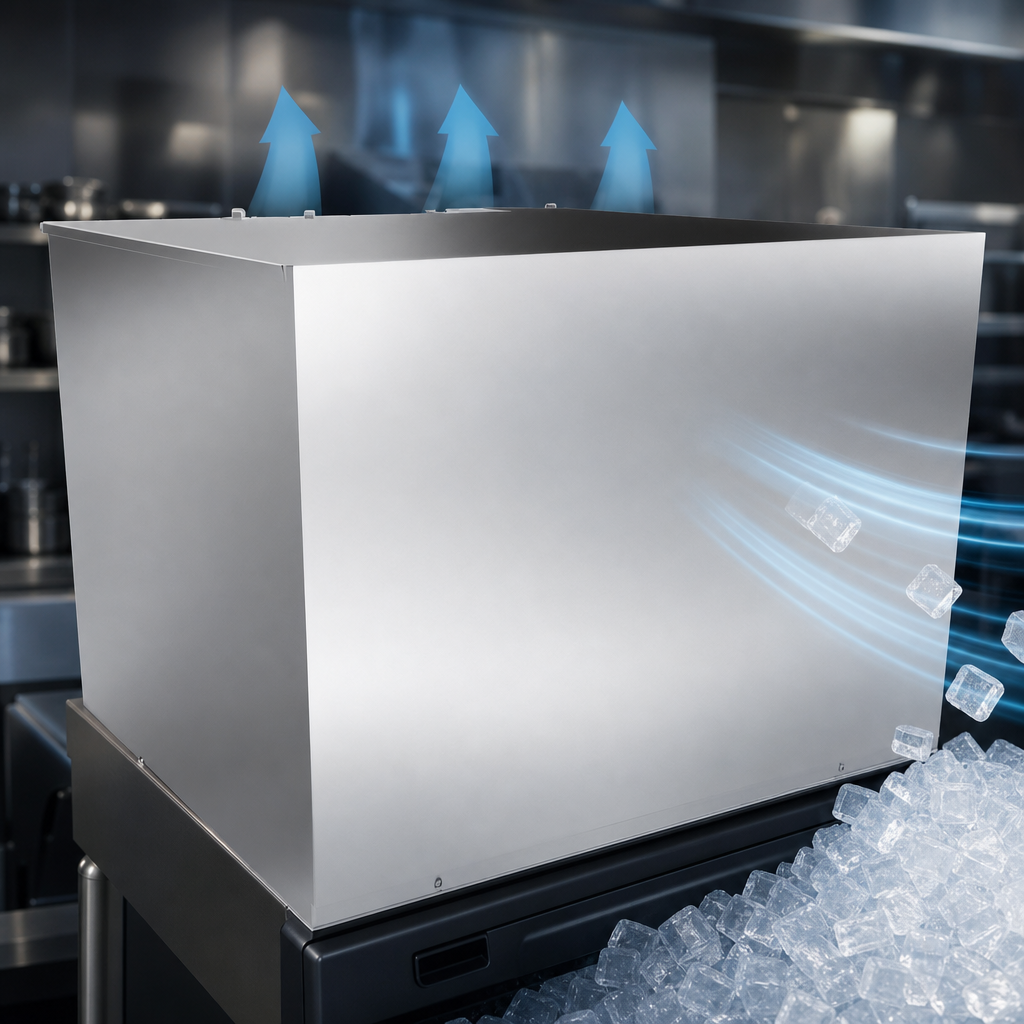

Harvest Assist Technology

Provides consistent ice production over the life of the machine while reducing energy consumption and increasing capacity.

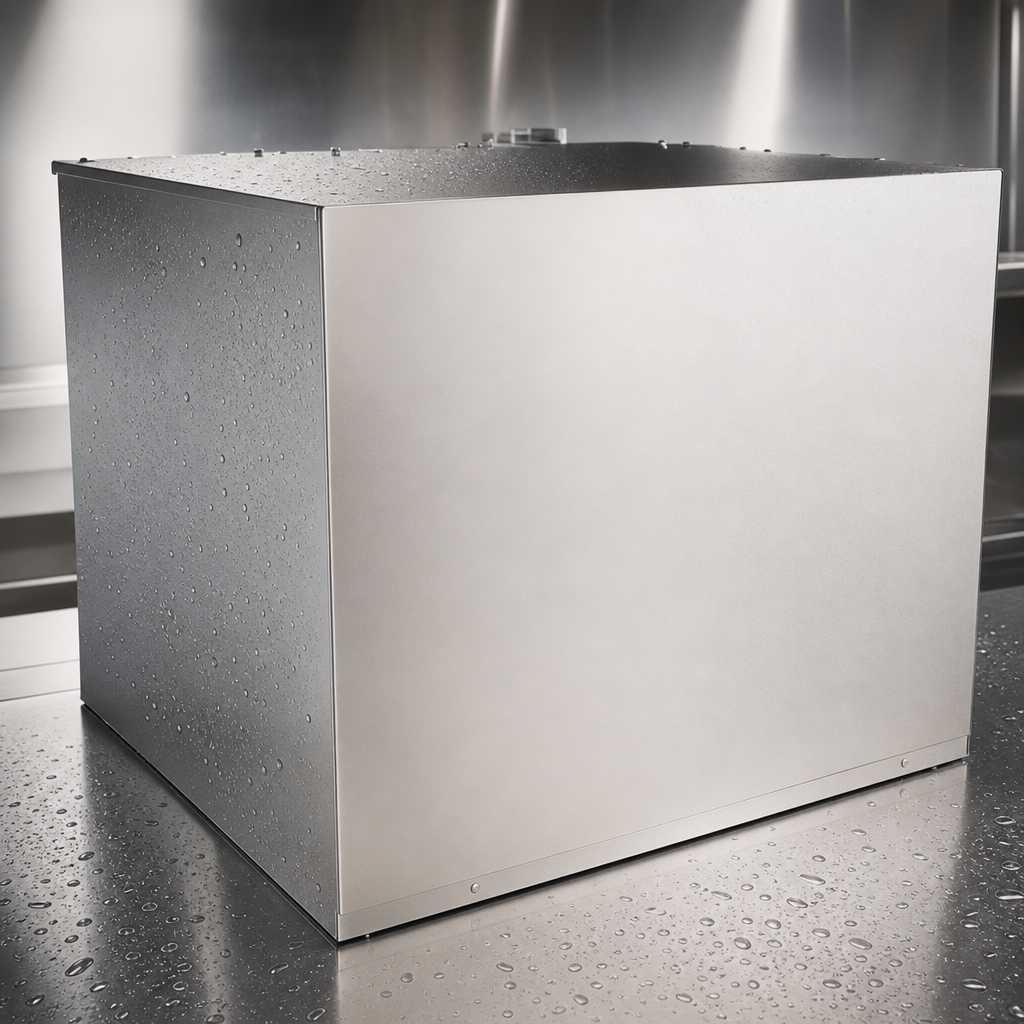

Corrosion-Resistant Construction

Built with stainless steel and electroless nickel-plated evaporator plates for durability and reliability.

Remote Cooled Design

Uses a remote condenser and pairs with the RC306C49 remote condenser and RL49-25, RL49-40, and RL49-75 precharged linesets.

Half Cube Ice Form

Produces half-size cubes measuring 3/8 x 7/8 x 7/8 in. (10 x 22 x 22 mm).

High Production Output

Rated at 1,228 lb per 24 hours at 70°F air / 50°F water and 1,047 lb per 24 hours at 90°F air / 70°F water.

Bin and Dispenser Ready

Comes equipped with ice level and ice deflectors for use with both bin and dispenser applications.

R449A Refrigerant

Uses R449A refrigerant.

Type Modular Cube Ice Maker
Style Half Cube
Refrigeration Type Remote Cooled
Production Capacity 1,228 lb per 24 Hours at 70°F Air / 50°F Water
Production Capacity at High Ambient 1,047 lb per 24 Hours at 90°F Air / 70°F Water
Voltage 208-230 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 18.3 Amps
Breaker Size 30 Amps
BTU 21,700 BTU/hr
Refrigerant Type R449A
Water Connection Required
Drain Connection Required
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 3/4 Inch FPT
Material Stainless Steel
Shipping Width 33 Inches
Shipping Depth 29 Inches
Shipping Height 29 Inches
Shipping Weight 263 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor on the ice maker; 5 years parts on the evaporator and compressor; 7 years parts and labor on the evaporator if enrolled in the filter program.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Options PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It produces half cube ice measuring 3/8 x 7/8 x 7/8 in. (10 x 22 x 22 mm).
No. It is a remote-cooled modular ice maker head, so a compatible remote condenser and lineset are required and sold separately.
It is rated at up to 1,228 lb per 24 hours at 70°F air / 50°F water, or 1,047 lb per 24 hours at 90°F air / 70°F water.
The unit requires 208-230V, 60 Hz, 1-phase power with a minimum circuit amp of 18.3A and a maximum breaker size of 30A.
Listed accessories include the RC306C49 remote condenser, RL49-25, RL49-40, and RL49-75 precharged linesets, KCUBEDISPB ice level control for dispensers, and the IFQ2 water filter manifold system.
The cutsheet shows it atop the B55 bin, and the bin chart also lists B40, B42, B55, B700-30, B110, B1000-48, B1300-48, B1325-60, and B1660-60 as compatible bin options.
