Ice-O-Matic

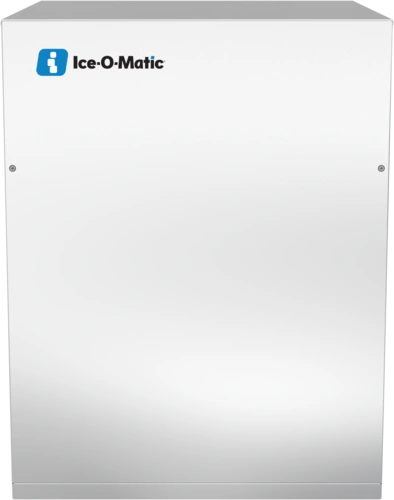

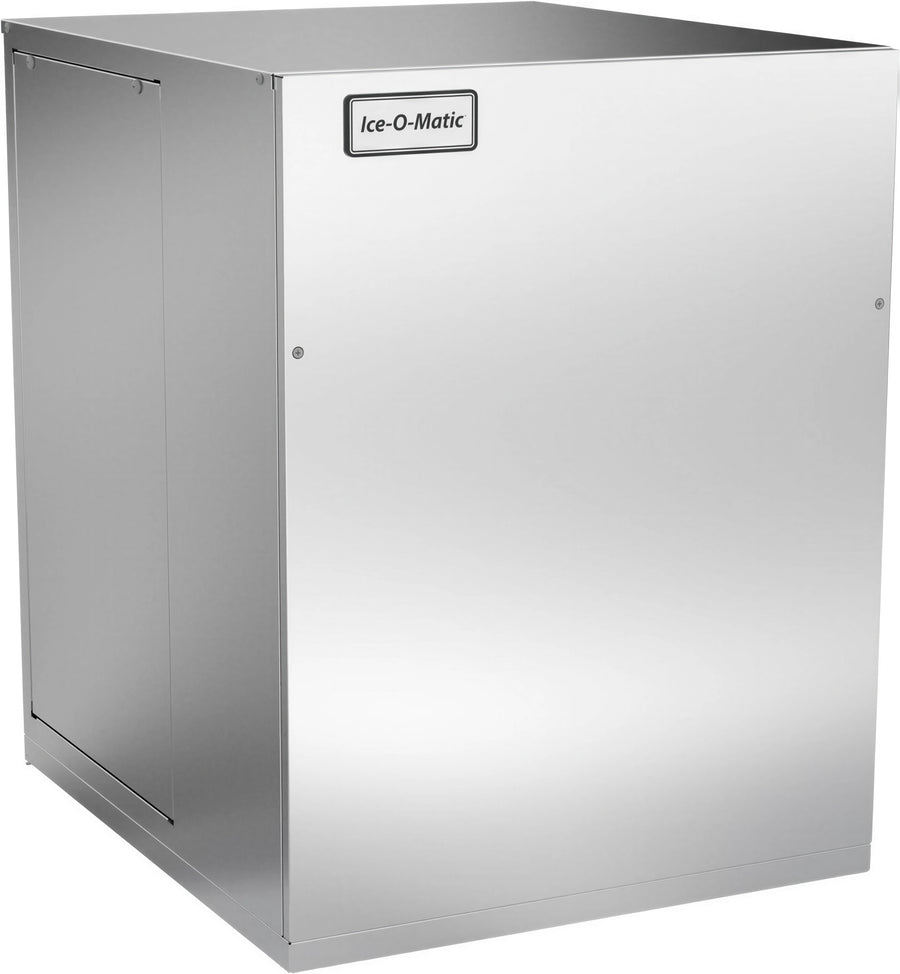

Ice-O-Matic Quartz Ice® HEM1306R49 Nugget Ice Maker, Air-Cooled Remote Condensing, 975 lb/24 hr, Stainless Finish

SKU: HEM1306R49
$11,062.25
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Cut Resistant Gloves Ice Machines Ice Machines & Handling Ice Makers & Bins Ice Production Equipment Ice-O-Matic Kitchen Knives New Arrivals Refrigeration & Ice Smallwares

Quartz Ice® nugget production: The HEM1306R49 produces harder, chewable nugget ice in a 1/2 in x 3/4 in x 1/2 in form.

This air-cooled, remote-condensing ice maker uses R449A refrigerant and produces 975 lb (442 kg) of ice per 24 hours at 70°F air and 50°F water, or 789 lb (358 kg) at 90°F air and 70°F water.

  • Stainless finish with a stainless-steel evaporator assembly
  • Designed to pair with ice and beverage dispensers
  • Built-in load monitoring, water sensing and non-contact ice detection

Overall Dimensions:

21.0"W x 24.0"D x 27.0"H

Product Weight:

215.0 lb

Quartz nugget ice

Produces harder, chewable nugget ice measuring 1/2 in x 3/4 in x 1/2 in.

Remote condensing

Uses an air-cooled, remote-condensing configuration with R449A refrigerant.

Load monitoring

Monitors gearbox workload and shuts down the system before a problem develops.

Water sensor

Helps prevent low- or no-water failures and supports operation in adverse water conditions.

Automatic ice detection

Built-in non-contact ice detection provides fail-safe automatic shutoff.

Stainless-steel evaporator assembly

Uses a stainless-steel evaporator assembly.

Gearbox and bearings

Includes a heavy-duty gearbox and maintenance-free, industrial-grade double roller bearings.

Ice form Quartz nugget; 1/2 in x 3/4 in x 1/2 in (12.7 x 19.1 x 12.7 mm)
Ice production at 70°F air / 50°F water 975 lb (442 kg) per 24 hours
Ice production at 90°F air / 70°F water 789 lb (358 kg) per 24 hours
Condensing type Remote
Cooling Air-cooled
Refrigerant R449A
Finish Stainless
Voltage / frequency / phase 208-230 V / 60 Hz / 1 phase
Minimum circuit ampacity 16.3 A
Maximum breaker size 25 A
Ambient temperature range 50°F to 100°F (10°C to 38°C)
Water temperature range 40°F to 100°F (4°C to 38°C)
Water pressure range 20 to 80 PSIG (1.4 to 5.5 bar)
Energy use at 70°F air / 50°F water 3.5 kWh per 100 lb of ice
Energy use at 90°F air / 70°F water 4.6 kWh per 100 lb of ice
Water usage at 90°F air / 70°F water 12 gal per 100 lb of ice
Approximate heat output 14,930 BTU per hour
Refrigeration charge 201 oz
Number of wires 3, including ground
Ice maker drain connection 3/4 in FPT
Potable water inlet 3/8 in FPT

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor for the ice maker; 5 years parts for the compressor.

Documents

PDF Warranty sheet PDF Download PDF Cutsheet PDF Download PDF Service parts manual PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

It produces harder, chewable Quartz nugget ice measuring 1/2 in x 3/4 in x 1/2 in.
It produces 975 lb (442 kg) per 24 hours at 70°F air and 50°F water, or 789 lb (358 kg) at 90°F air and 70°F water.
The ice maker requires 208-230 V, 60 Hz, single-phase power, with a 16.3 A minimum circuit ampacity and a 25 A maximum breaker size.
Yes. The HEM1306R49 uses an air-cooled, remote-condensing configuration.
The ice maker has 3 years of parts and labor coverage, and the compressor has 5 years of parts coverage.
