Ice-O-Matic

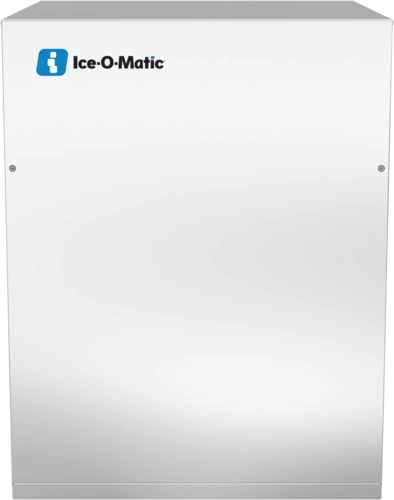

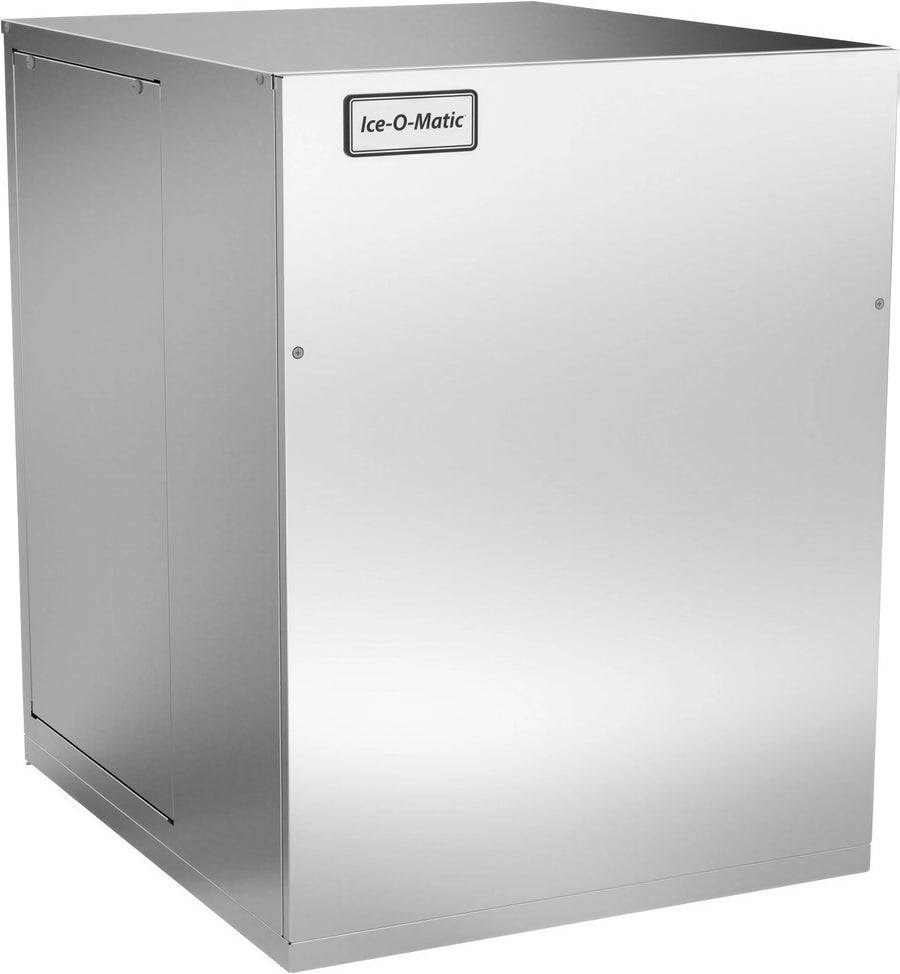

Ice-O-Matic Quartz Ice® HEM0956R49 Nugget Ice Maker, Remote Air-Cooled, 740 lb/24 hr, Stainless Steel

SKU: HEM0956R49
$8,945.45
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Cut Resistant Gloves Ice Machines Ice Machines & Handling Ice Makers & Bins Ice Production Equipment Ice-O-Matic Kitchen Knives New Arrivals Refrigeration & Ice Smallwares

The Ice-O-Matic HEM0956R49 Quartz Ice® maker produces harder, chewable nugget ice for beverage service and dispenser applications.

  • Production: Approximately 740 lb (336 kg) per 24 hours at 70°F air and 50°F water, or 618 lb (280 kg) at 90°F air and 70°F water.
  • Condensing: Remote air-cooled unit using R449A refrigerant.
  • Ice form: Quartz nugget ice measuring 1/2 x 3/4 x 1/2 in (12.7 x 19.1 x 12.7 mm).
  • Construction: Stainless finish with a stainless-steel evaporator assembly.
  • Controls and protection: Load monitoring, a water sensor, and non-contact ice detection with automatic shutoff.

Overall Dimensions:

21.0"W x 24.0"D x 27.0"H

Product Weight:

215.0 lb

Quartz nugget ice

Produces harder, chewable Quartz nuggets measuring 1/2 x 3/4 x 1/2 in (12.7 x 19.1 x 12.7 mm).

Remote air-cooled condensing

Uses a remote air-cooled condensing arrangement.

Rated ice production

Produces approximately 740 lb (336 kg) per 24 hours at 70°F air and 50°F water, and 618 lb (280 kg) at 90°F air and 70°F water.

Load monitoring

Constantly checks gearbox workload and shuts down the system before a problem develops.

Water sensor

Helps prevent low- or no-water failures and supports operation in adverse water conditions.

Automatic ice detection

Built-in non-contact ice detection provides fail-safe automatic shutoff.

Drive components

Includes maintenance-free industrial-grade double roller bearings and a heavy-duty gearbox.

Reduced resource usage

The cutsheet specifies decreased water and power usage compared with cube ice makers.

Ice Type Nugget
Ice Form 1/2 x 3/4 x 1/2 in (12.7 x 19.1 x 12.7 mm)
Ice Production at 70°F Air / 50°F Water Approximately 740 lb (336 kg) per 24 hours
Ice Production at 90°F Air / 70°F Water 618 lb (280 kg) per 24 hours
Condensing Type Remote air-cooled
Refrigerant R449A
Voltage / Frequency / Phase 208-230 V / 60 Hz / 1 phase
Minimum Circuit Ampacity 15.3 A
Maximum Breaker Size 20 A
Operating Ambient Temperature 50°F-100°F (10°C-38°C)
Operating Water Temperature 40°F-100°F (4°C-38°C)
Water Pressure 20-80 PSIG (1.4-5.5 bar)
Water Usage 12 gal per 100 lb of ice at 90°F air and 70°F water
Energy Use at 70°F Air / 50°F Water 3.63 kWh per 100 lb of ice
Energy Use at 90°F Air / 70°F Water 4.5 kWh per 100 lb of ice
Approximate Heat Load 11,200 BTU per hour
Number of Wires 3, including ground
Potable Water Inlet 3/8 in FPT
Ice Maker Drain 3/4 in FPT
Refrigeration Charge 201 oz
Finish Stainless

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor for the ice maker; 5 years parts for the compressor.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download PDF Installation manual PDF Download PDF Service parts manual PDF Download

Frequently Asked Questions

It produces harder, chewable Quartz nugget ice measuring 1/2 x 3/4 x 1/2 in (12.7 x 19.1 x 12.7 mm).
Approximately 740 lb (336 kg) per 24 hours at 70°F air and 50°F water, or 618 lb (280 kg) at 90°F air and 70°F water.
It uses a remote air-cooled condensing arrangement.
The specified service is 208-230 V, 60 Hz, single phase, with a 15.3 A minimum circuit ampacity and 20 A maximum breaker size.
The listed dimensions are 21.0 in wide, 24.0 in deep, and 27.0 in high.
The ice maker has 3 years of parts and labor coverage, and the compressor has 5 years of parts coverage.
The listed certifications are NSF and cULus.
