Ice-O-Matic

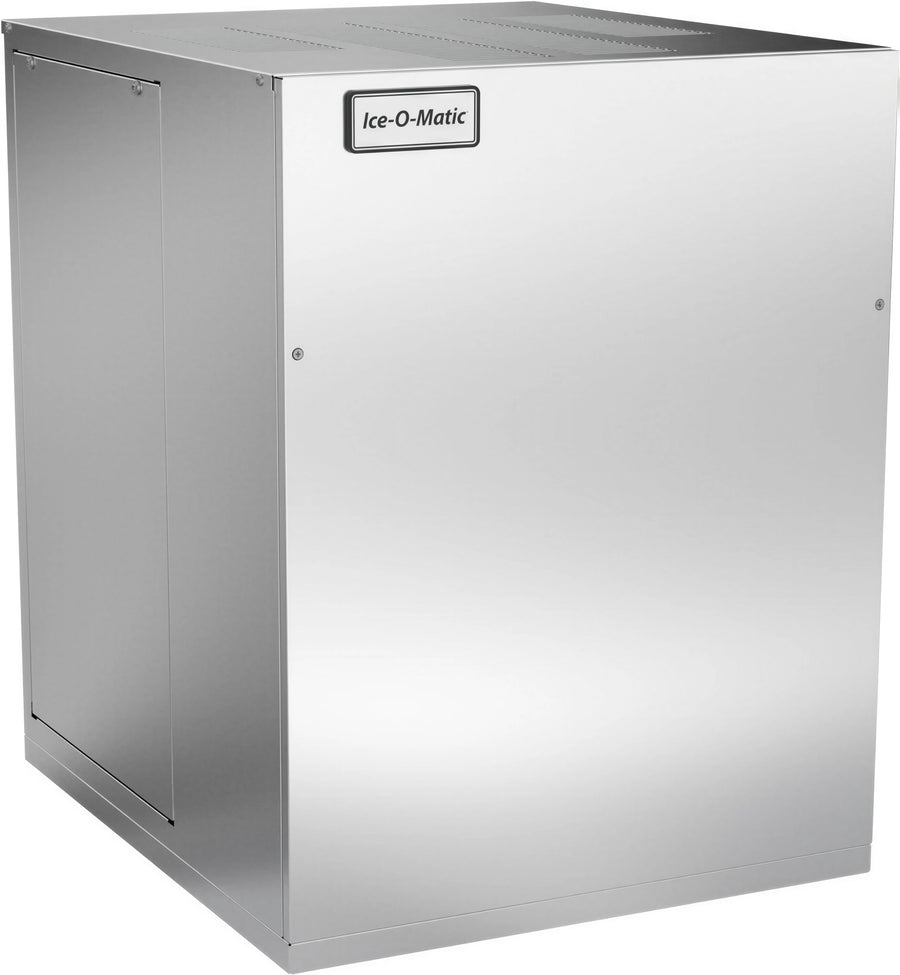

Ice-O-Matic Quartz Ice® HEM0650A90 Nugget Ice Maker, Air-Cooled Self-Contained, 610 lb/24 hr, Stainless Steel

SKU: HEM0650A90
$7,017.67
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Cut Resistant Gloves Ice Machines Ice Machines & Handling Ice Makers & Bins Ice Production Equipment Ice-O-Matic Kitchen Knives New Arrivals Refrigeration & Ice Smallwares

The Ice-O-Matic HEM0650A90 produces harder, chewable Quartz nugget ice with approximately 610 lb (277 kg) of production per 24 hours at 70°F air and 50°F water.

  • Cooling: Air-cooled, self-contained refrigeration with top and side air dual exhaust.
  • Refrigerant: R290.
  • Construction: Stainless finish with a stainless-steel evaporator assembly.
  • Controls and protection: Load monitoring, a water sensor, and built-in non-contact ice detection with automatic shutoff.

Overall Dimensions:

21.0"W x 24.0"D x 27.0"H

Product Weight:

176.0 lb

Quartz nugget ice

Produces harder, chewable nugget ice; the specified ice form is 1/2 x 3/4 x 1/2 in.

Ice production

Produces approximately 610 lb (277 kg) per 24 hours at 70°F air and 50°F water, or 492 lb (223 kg) at 90°F air and 70°F water.

Air-cooled refrigeration

Uses an air-cooled, self-contained refrigeration system.

Top and side exhaust

Provides top and side air dual exhaust.

R290 refrigerant

Uses R290 refrigerant.

System monitoring and protection

Load monitoring checks gearbox workload, a water sensor addresses low- or no-water conditions, and built-in non-contact ice detection provides automatic shutoff.

Stainless construction

Includes a stainless finish and stainless-steel evaporator assembly.

Energy efficiency

ENERGY STAR® certified.

Ice Type Quartz nugget
Ice Form 1/2 x 3/4 x 1/2 in (12.7 x 19.1 x 12.7 mm)
Ice Production at 70°F Air / 50°F Water 610 lb (277 kg) per 24 hours
Ice Production at 90°F Air / 70°F Water 492 lb (223 kg) per 24 hours
Condenser Type Air-cooled
Refrigeration Self-contained refrigeration
Refrigerant R290
Refrigerant Charge 110 g
Voltage / Hertz / Phase 115/60/1
Minimum Circuit Ampacity 18.5 A
Maximum Breaker Size 25 A
Operating Ambient Temperature 50°F to 100°F (10°C to 38°C)
Water Temperature Range 40°F to 100°F (4°C to 38°C)
Water Pressure Range 20 to 80 PSIG (1.4 to 5.5 bar)
Water Inlet 3/8 in FPT
Drain 3/4 in FPT
Energy Use at 70°F Air / 50°F Water 2.9 kWh per 100 lb of ice
Energy Use at 90°F Air / 70°F Water 3.9 kWh per 100 lb of ice
Finish Stainless

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor for the ice maker; 5 years parts for the compressor.

Documents

PDF Warranty sheet PDF Download PDF Cutsheet PDF Download PDF Service parts manual PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

It produces harder, chewable Quartz nugget ice in a specified 1/2 x 3/4 x 1/2 in form.
Approximately 610 lb (277 kg) per 24 hours at 70°F air and 50°F water, or 492 lb (223 kg) at 90°F air and 70°F water.
Yes. It uses air-cooled, self-contained refrigeration with top and side air dual exhaust.
It is specified for 115/60/1, with an 18.5 A minimum circuit ampacity and a 25 A maximum breaker size.
The ice maker has 3 years of parts-and-labor coverage, and the compressor has 5 years of parts coverage.
