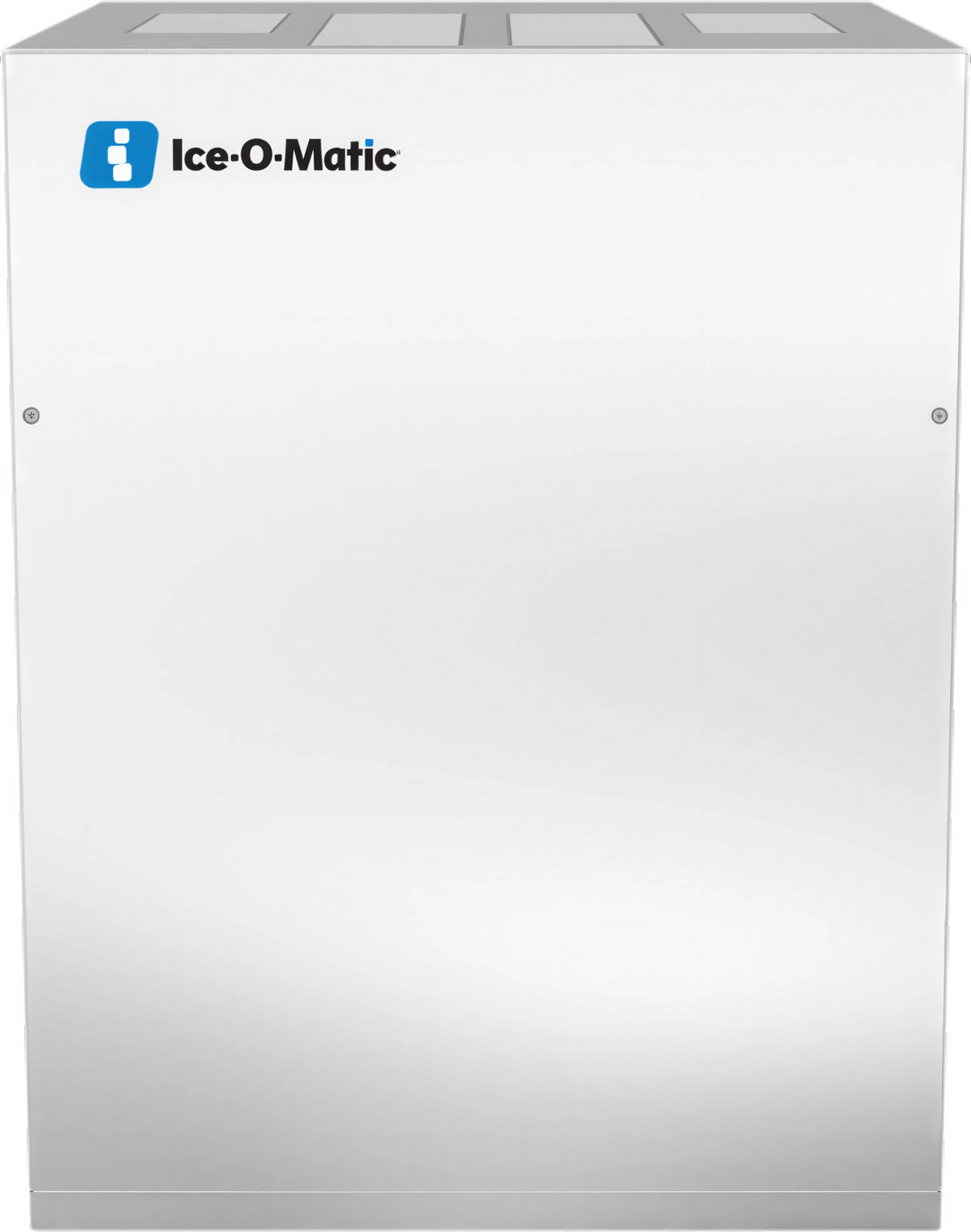

Ice-O-Matic HEM0450A90

Ice-O-Matic Pearl Ice HEM0450A90 Nugget Ice Maker, Air-Cooled Self-Contained, 365 lb/24 Hours, Stainless Steel

$5,733.11
/each
Ships in 16–19 business days
Dimensions
21.0"W × 24.25"D × 27.0"H
Ice type
Quartz nugget
Ice form dimensions
1/2 × 3/4 × 1/2 in (12.7 × 19.1 × 12.7 mm)
Production at 70°F air / 50°F water
365 lb (166 kg) per 24 hours
Production at 90°F air / 70°F water
293 lb (133 kg) per 24 hours
Cooling
Air-cooled

Questions before you buy?

Talk to an equipment specialist — usually within 1 hour, 9am–6pm EST.

(888) 307-5030 Call Get custom quote

Specifications

Ice type Quartz nugget
Ice form dimensions 1/2 × 3/4 × 1/2 in (12.7 × 19.1 × 12.7 mm)
Production at 70°F air / 50°F water 365 lb (166 kg) per 24 hours
Production at 90°F air / 70°F water 293 lb (133 kg) per 24 hours
Cooling Air-cooled
Refrigeration Self-contained
Air exhaust Top and side
Refrigerant R290
Finish Stainless
Electrical 115 V / 60 Hz / 1 phase
Minimum circuit ampacity 13.4 A
Maximum breaker size 20 A
Ambient temperature range 50°F (10°C) to 100°F (38°C)
Water temperature range 40°F (4°C) to 100°F (38°C)
Water pressure range 20 to 80 PSIG (1.4 to 5.5 bar)
Water usage 12 gal per 100 lb of ice at 90°F air / 70°F water
Energy use at 70°F air / 50°F water 2.9 kWh per 100 lb of ice
Energy use at 90°F air / 70°F water 3.9 kWh per 100 lb of ice
Approximate heat output 4,070 BTU per hour
Potable water inlet 3/8 in FPT
Ice maker drain 3/4 in FPT
Number of wires 3, including ground

Description

The Ice-O-Matic Pearl Ice HEM0450A90 is an air-cooled, self-contained Quartz Ice® maker that produces harder, chewable nugget ice. Production is 365 lb (166 kg) per 24 hours at 70°F air and 50°F water, or 293 lb (133 kg) at 90°F air and 70°F water.

The unit uses R290 refrigerant and features top and side air dual exhaust, a stainless finish, and built-in monitoring and shutoff systems.

  • Ice type: Quartz nugget ice measuring 1/2 × 3/4 × 1/2 in (12.7 × 19.1 × 12.7 mm).
  • Protection systems: Load monitoring, water sensing, and non-contact ice detection with automatic shutoff.
  • Listings: ENERGY STAR®, NSF, and cULus.

Overall Dimensions:

21.0"W x 24.25"D x 27.0"H

Product Weight:

186.0 lb

Quartz nugget ice

Produces 1/2 × 3/4 × 1/2 in (12.7 × 19.1 × 12.7 mm) Quartz nuggets described as harder and chewable.

Air-cooled refrigeration

Uses an air-cooled condenser with self-contained refrigeration.

Dual air exhaust

Provides air intake and exhaust through the top and side of the unit.

R290 refrigerant

Uses R290 refrigerant.

Load monitoring

Monitors gearbox workload and shuts the system down before a problem develops.

Water sensor

Detects low or no water conditions and operates in adverse water conditions.

Automatic ice shutoff

Built-in, non-contact ice detection provides fail-safe automatic shutoff.

Stainless construction

Features a stainless finish and stainless-steel evaporator assembly.

Documentation

PDF Cutsheet PDF Download PDF Service manual PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Frequently Asked Questions

It produces harder, chewable Quartz nugget ice measuring 1/2 × 3/4 × 1/2 in.
It produces 365 lb per 24 hours at 70°F air and 50°F water, or 293 lb per 24 hours at 90°F air and 70°F water.
The HEM0450A90 uses an air-cooled condenser with self-contained refrigeration.
The specified service is 115 V, 60 Hz, single phase, with a 13.4 A minimum circuit ampacity and 20 A maximum breaker size.
The listed dimensions are 21 in wide, 24.25 in deep, and 27 in high, with a listed weight of 186 lb.
The ice maker has 3 years of parts-and-labor coverage, and the compressor has 5 years of parts coverage.
