Ice-O-Matic GEM0956R49

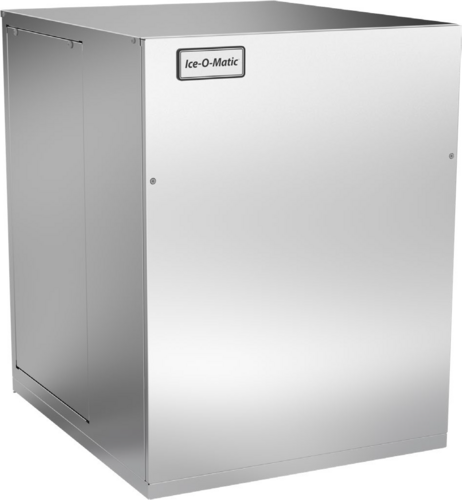

Ice-O-Matic Pearl Ice GEM0956R49 Nugget Ice Maker, Air-Cooled, Remote Condenser, 1,011 lb./Day

$7,797.00
/each
Ships in 16–19 business days
BTU per hour
Approximately 11,200 BTU/h
Dimensions
24.0"W × 27.0"D × 32.0"H
Ice type
Nugget
Ice form
1/2 x 3/8 in (12.7 x 9.5 mm)
Production per 24 hours
Approximately 1,011 lb (459 kg)
Cooling
Air-cooled

Questions before you buy?

Talk to an equipment specialist — usually within 1 hour, 9am–6pm EST.

(888) 307-5030 Call Get custom quote

Specifications

Ice type Nugget
Ice form 1/2 x 3/8 in (12.7 x 9.5 mm)
Production per 24 hours Approximately 1,011 lb (459 kg)
Cooling Air-cooled
Refrigeration Remote; refrigeration not included
Refrigerant R449A
Finish Stainless steel
Electrical 208–230 V / 60 Hz / 1 phase
Minimum circuit ampacity 12.8 A
Maximum breaker size 20 A
Potable water inlet 3/8 in FPT
Drain 3/4 in FPT
Operating ambient temperature 50–100°F (10–38°C)
Water temperature 40–100°F (4–38°C)
Water pressure 20–80 PSIG (1.4–5.5 bar)
Number of wires 3, including ground
Energy use at 70°F air and 50°F water 2.9 kWh per 100 lb of ice
Energy use at 90°F air and 70°F water 3.97 kWh per 100 lb of ice
Water usage at 90°F air and 70°F water 12 gal per 100 lb of ice
BTU per hour Approximately 11,200 BTU/h

Description

The Ice-O-Matic GEM0956R49 Pearl Ice maker produces soft, chewable nugget-style ice with air-cooled operation and remote refrigeration.

  • Produces approximately 1,011 lb (459 kg) of ice per 24 hours.
  • Features a stainless finish and rugged stainless-steel evaporator assembly.
  • Includes load monitoring, water sensing, and built-in non-contact ice detection shutoff systems.
  • Uses R449A refrigerant. Remote refrigeration is not included.

Overall Dimensions:

24.0"W x 27.0"D x 32.0"H

Product Weight:

215.0 lb

Pearl nugget-style ice

Produces soft, chewable nugget-style ice.

Daily ice production

Produces approximately 1,011 lb (459 kg) of ice per 24 hours.

Remote refrigeration

Uses air-cooled operation with remote refrigeration; refrigeration is not included.

Load monitoring

The load monitoring system checks gearbox workload and shuts down the system before a problem develops.

Water sensing

The water sensor monitors water conditions and helps prevent low- or no-water failures.

Stainless-steel evaporator

Features a rugged stainless-steel evaporator assembly.

Ice detection shutoff

Built-in non-contact ice detection provides fail-safe automatic shutoff.

Refrigerant

Uses R449A refrigerant.

Documentation

PDF Cutsheet PDF Download PDF Service manual PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Frequently Asked Questions

It produces soft, chewable Pearl nugget-style ice.
The authoritative product specification lists approximately 1,011 lb (459 kg) of ice production per 24 hours.
No. The product uses remote refrigeration, and the category data states that refrigeration is not included.
It requires 208–230 V, 60 Hz, single-phase service, with a 12.8 A minimum circuit ampacity and 20 A maximum breaker size.
It uses R449A refrigerant.
The warranty sheet lists 3 years of parts and labor and 5 years of parts coverage on the compressor for the MFI Flaker/GEM Pearl Series.
