Ice-O-Matic Elevation Series™ CIMU220HA90 ™ Undercounter Half-Cube Ice Maker, Air-Cooled, 74-lb Bin, 223 lb/24 hr, Stainless Steel

SKU: CIMU220HA90
$3,561.10
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Ice Machines Ice Machines & Handling Ice Machines with Bins Ice Makers & Bins Ice Makers with Bins Ice Production Equipment Ice-O-Matic New Arrivals Refrigeration & Ice Restaurant Equipment

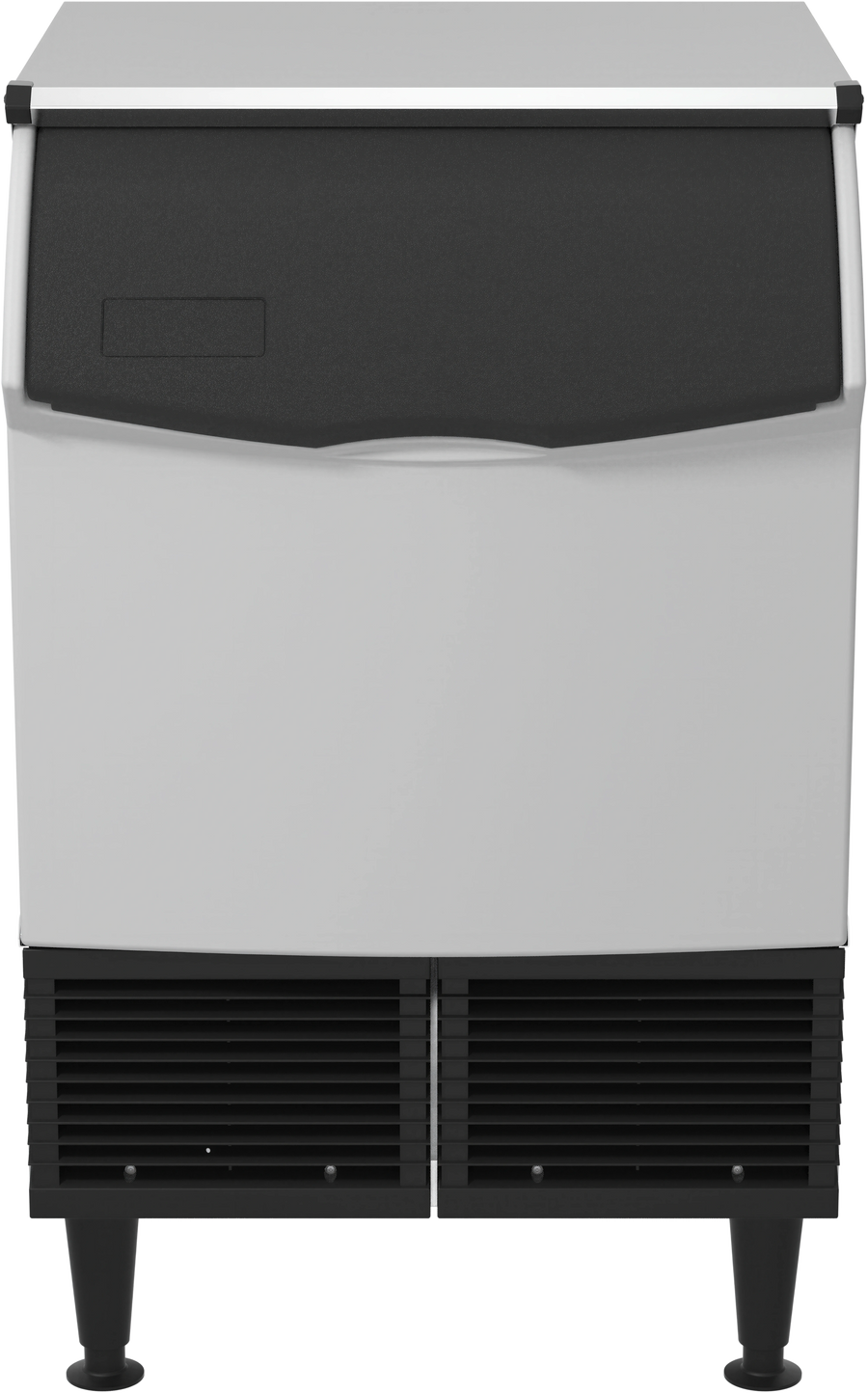

The Ice-O-Matic CIMU220HA90 is an air-cooled, self-contained undercounter ice maker that produces half-cube ice. It produces 223 lb of ice per 24 hours at 70°F air and 50°F water, with a 74 lb built-in storage capacity.

Its front-breathing design supports installation in tight or enclosed spaces. The stainless steel exterior is corrosion-resistant and fingerprint-resistant, while nickel-plated evaporator plates support ice production. Harvest Assist technology helps maintain consistent production while reducing energy use.

One-Touch Cleaning, sanitize and descaling controls, and an LED status display support routine operation and maintenance.

Overall Dimensions:

24.0"W x 26.0"D x 39.0"H

Product Weight:

153.0 lb

Half-cube ice

Produces half-cube ice measuring 3/8 x 7/8 x 7/8 in. (10 x 22 x 22 mm).

Ice production

Rated for 223 lb per 24 hours at 70°F air and 50°F water, or 167 lb per 24 hours at 90°F air and 70°F water.

Built-in storage

Stores up to 74 lb of ice.

Front-breathing design

Supports installation in tight or enclosed spaces.

Air-cooled condenser

Uses an air-cooled, self-contained condenser.

Stainless steel exterior

The exterior is corrosion-resistant and fingerprint-resistant for durability and cleaning.

Harvest Assist technology

Helps maintain consistent ice production while reducing energy use.

One-touch controls and LED display

Provides One-Touch Cleaning, sanitize and descaling controls, and an LED status display.

Ice form Half cube
Ice size 3/8 x 7/8 x 7/8 in. (10 x 22 x 22 mm)
Condenser type Air-cooled, self-contained
Storage capacity 74 lb (33.5 kg)
Ice production at 70°F air / 50°F water 223 lb (101 kg) per 24 hours
Ice production at 90°F air / 70°F water 167 lb (76 kg) per 24 hours
Refrigerant R290A
Refrigeration charge 80 g
Electrical 115 V / 60 Hz / 1 phase
Minimum circuit amp 9.1 A
Maximum breaker size 15 A
Ambient temperature range 50°F to 100°F (10°C to 38°C)
Water temperature range 40°F to 100°F (4°C to 38°C)
Water pressure range 20 to 60 PSIG (1.4 to 4.1 bar)
Potable water inlet 3/8 in. FPT
Ice maker drain 3/4 in. FPT
Water usage 22.5 gallons per 100 lb of ice at 90°F air / 70°F water
Energy use at 70°F air / 50°F water 3.7 kWh per 100 lb of ice
Energy use at 90°F air / 70°F water 5.82 kWh per 100 lb of ice
Approximate heat output 2,195 BTU per hour
Number of wires 3, including ground
Finish Stainless steel

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor on the ice maker; 5 years parts on the evaporator and compressor.

Documents

PDF Cutsheet PDF Download PDF Manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It produces half-cube ice measuring 3/8 x 7/8 x 7/8 in. (10 x 22 x 22 mm).
It produces 223 lb per 24 hours at 70°F air and 50°F water, or 167 lb per 24 hours at 90°F air and 70°F water.
The built-in storage capacity is 74 lb (33.5 kg).
It uses an air-cooled, self-contained condenser and a front-breathing design for installation in tight or enclosed spaces.
The unit is specified for 115 V, 60 Hz, single-phase power with 3 wires including ground, a 3/8 in. FPT potable water inlet, and a 3/4 in. FPT ice maker drain.
The unit has One-Touch Cleaning, one-touch sanitize and descaling controls, and an LED status display.
