Ice-O-Matic CIM2047FR Elevation Series™ Ice Machines
Ice-O-Matic CIM2047FR Elevation Series™ Ice Machines is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Ice-O-Matic CIM2047FR Elevation Series™ Ice Machines
Description

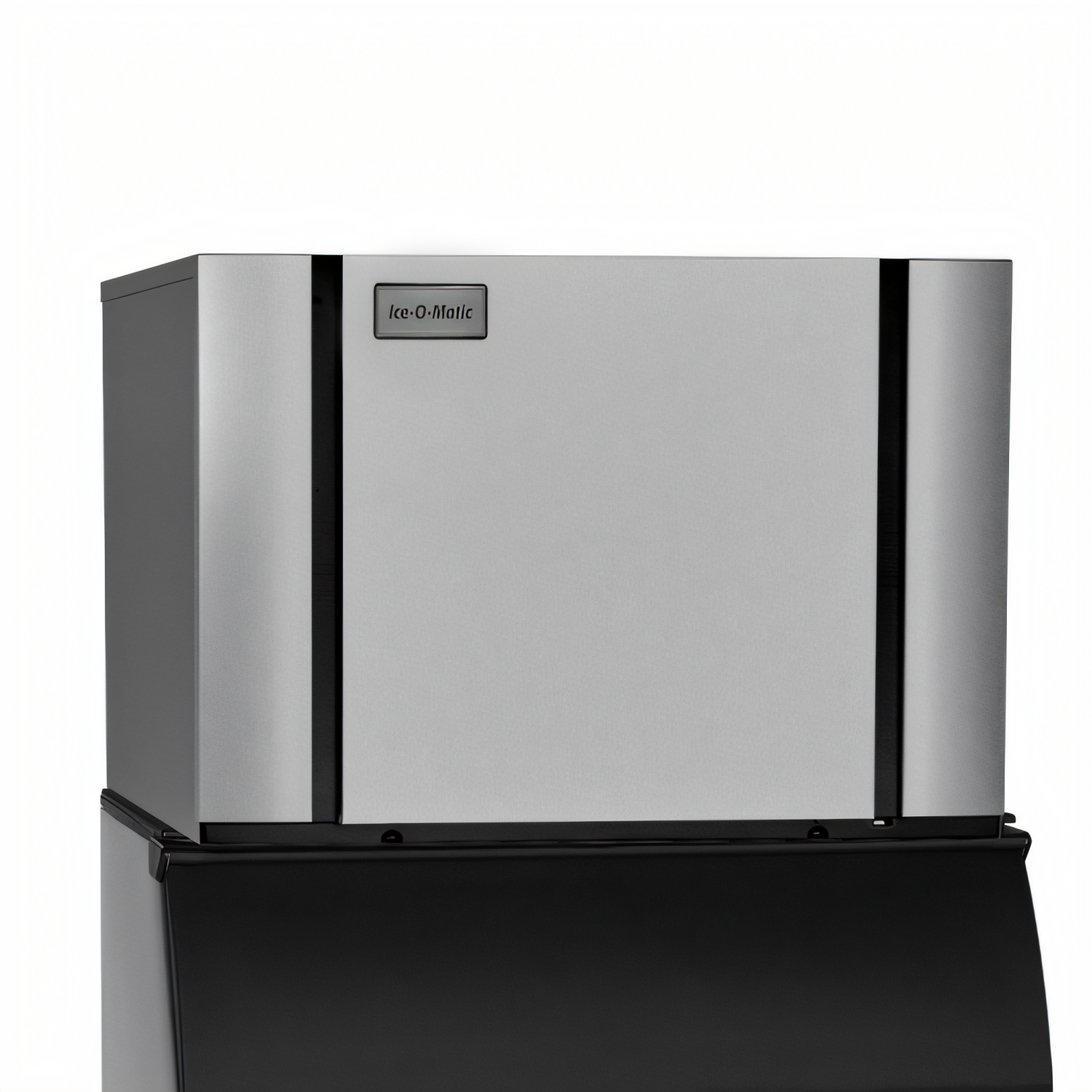

Ice-O-Matic Elevation Series™ CIM2046R Remote Air-Cooled Cube Ice Maker
48 in W | Up to 1,830 lb full-cube ice per day | Remote condenserEngineered for high-volume food-service, hospitality and healthcare applications, the Elevation Series™ CIM2046R delivers uncompromising ice production, effortless sanitation and industry-leading reliability—all in a compact 26.8 inch tall cabinet that fits virtually any 48 inch bin.
Why Choose This Ice Maker

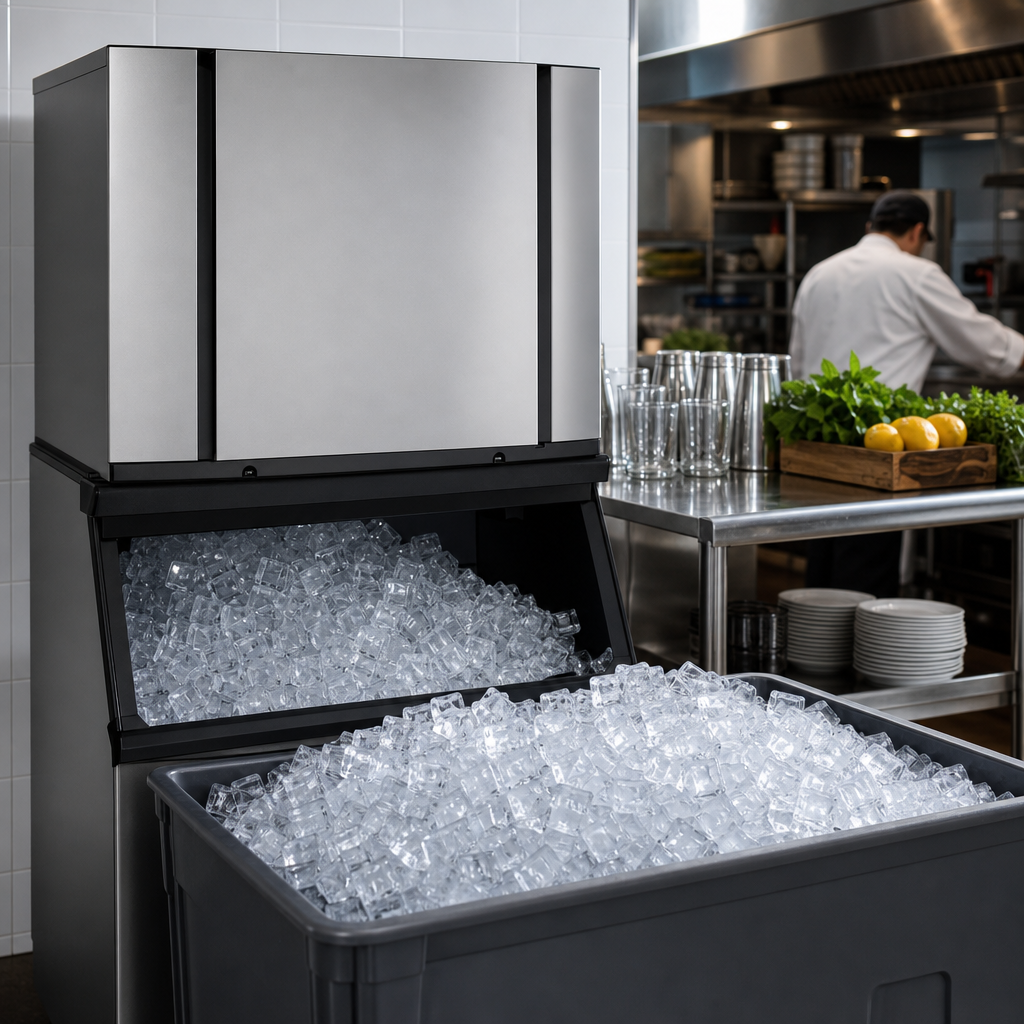

- Massive output – up to 1,830 lb (830 kg) of full-size ⅞ in. cubes every 24 hours at ideal conditions.

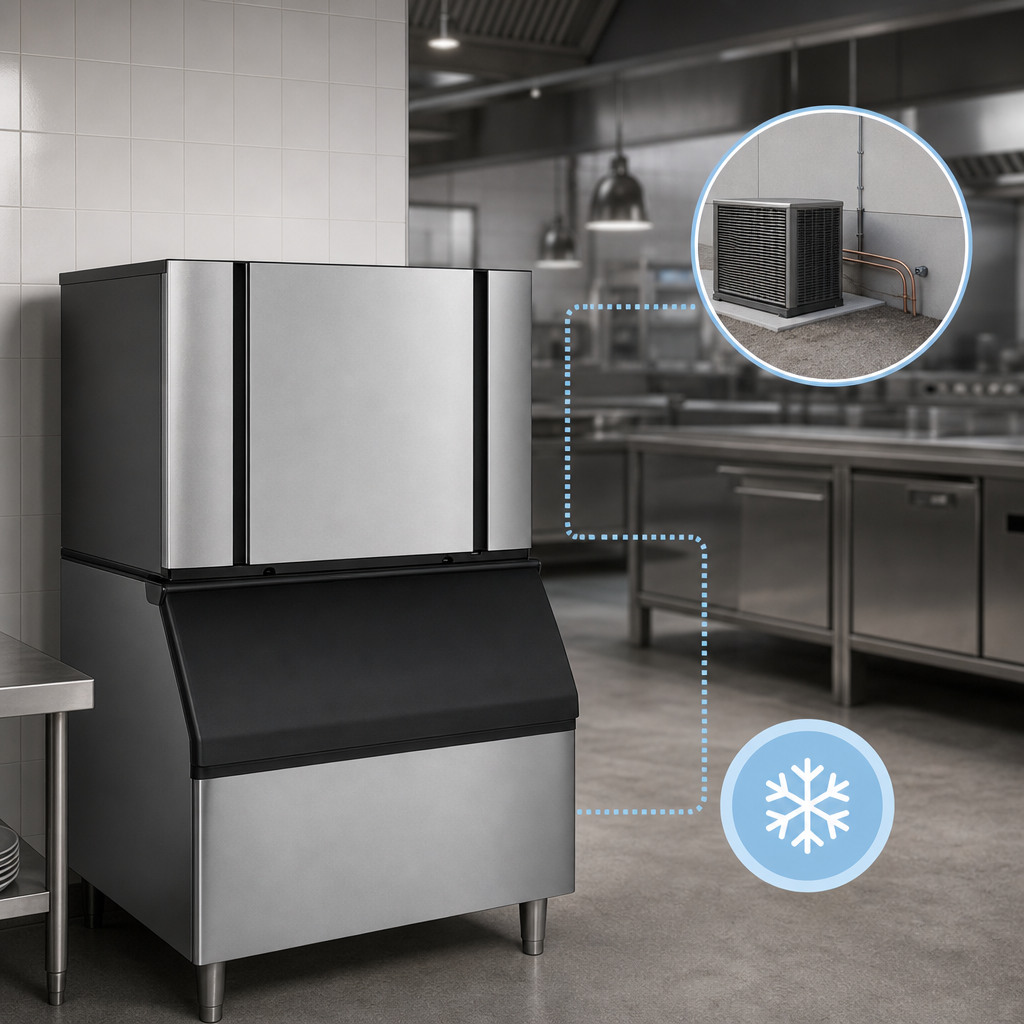

- Remote air-cooled design (RCA-3561 condenser, sold separately) keeps heat & noise outside the kitchen while boosting efficiency.
- Dual exhaust lets you duct hot air from the top or the side—perfect for tight installations.
- Pure Ice® antimicrobial protection is built into every food-zone component to inhibit bacteria for the life of the machine.
- One-touch sanitize & descale cycle plus LED status display save staff time and simplify routine maintenance.
- Removable, dishwasher-safe food-zone parts—no tools required.
- Energy-saving Harvest Assist system maintains consistent production while lowering kWh use.
- Heavy-duty, nickel-plated evaporator plates and corrosion-resistant aluminum cabinet for long service life.
- Optional SafeIce™ Purification System destroys viruses, mold and odors, extending machine life by up to 30 %.
Ice Production & Efficiency
| Daily production (70 °F air/50 °F water) | Approx. 1,830 lb / 830 kg |
|---|---|
| Daily production (90 °F air/70 °F water) | Approx. 1,533 lb / 695 kg |
| Ice type & size | Full cube – ⅞ in × ⅞ in × ⅞ in (22 × 22 × 22 mm) |
| Water use | 14.9 gal potable water / 100 lb ice |
| Energy use | 4.5 kWh / 100 lb ice |
Technical Specifications
| Model | CIM2046R (single-phase) & CIM2047R (three-phase) |
|---|---|
| Dimensions (W × D × H) | 48.25 in × 24.25 in × 26.8 in 1,226 × 616 × 660 mm |
| Electrical | 208-230 V / 60 Hz / 1 ph – 40 A max breaker 208-230 V / 60 Hz / 3 ph – 25 A max breaker |
| Refrigerant | R-404A |
| Approx. BTU heat rejection | 27,500 BTU/hr |
| Net / shipping weight | Approx. 310 lb / 335 lb (152 kg) |
| Certifications | cULus, NSF, CE |

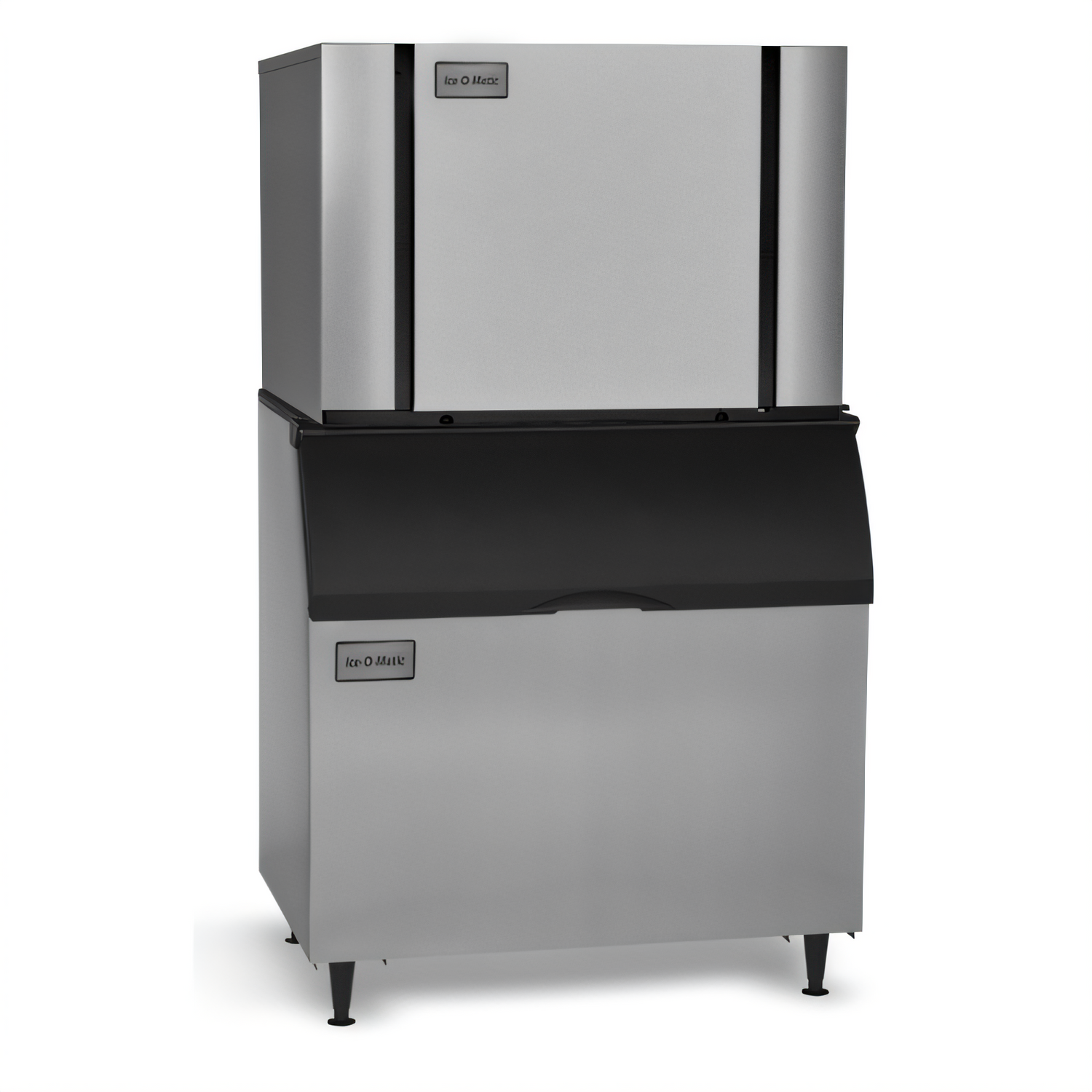

Recommended Ice Storage Bins
- B110 – 854 lb capacity, 48 in wide (no adapter kit required).
- B1000-48 – 1,000 lb capacity, 48 in wide.
- B1300-48 / B1325-60 / B1600-60 for extra-large storage needs.
- Add the KLSCO 82-oz scoop or KSHOV sanitary shovel for best hygiene.
Industry-Leading Warranty
- 3 year parts & labor on the entire ice maker.
- 5 year parts on evaporator & compressor.
- 7 year parts & labor on the evaporator when installed with and registered on an Ice-O-Matic water filter program (U.S. & Canada).
Remote condenser (Ice-O-Matic RCA-3561) and storage bin are required and sold separately. Production figures are based on factory testing; field conditions may vary. Use only Ice-O-Matic approved cleaners and filters to maintain warranty coverage.
