Ice-O-Matic CIM2046HW Elevation Series™ Ice Machines
$10,049.00
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Ice-O-Matic CIM2046HW Elevation Series™ Ice Machines is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Ice-O-Matic CIM2046HW Elevation Series™ Ice Machines
$10,049.00
Unit price
/
Unavailable
Description

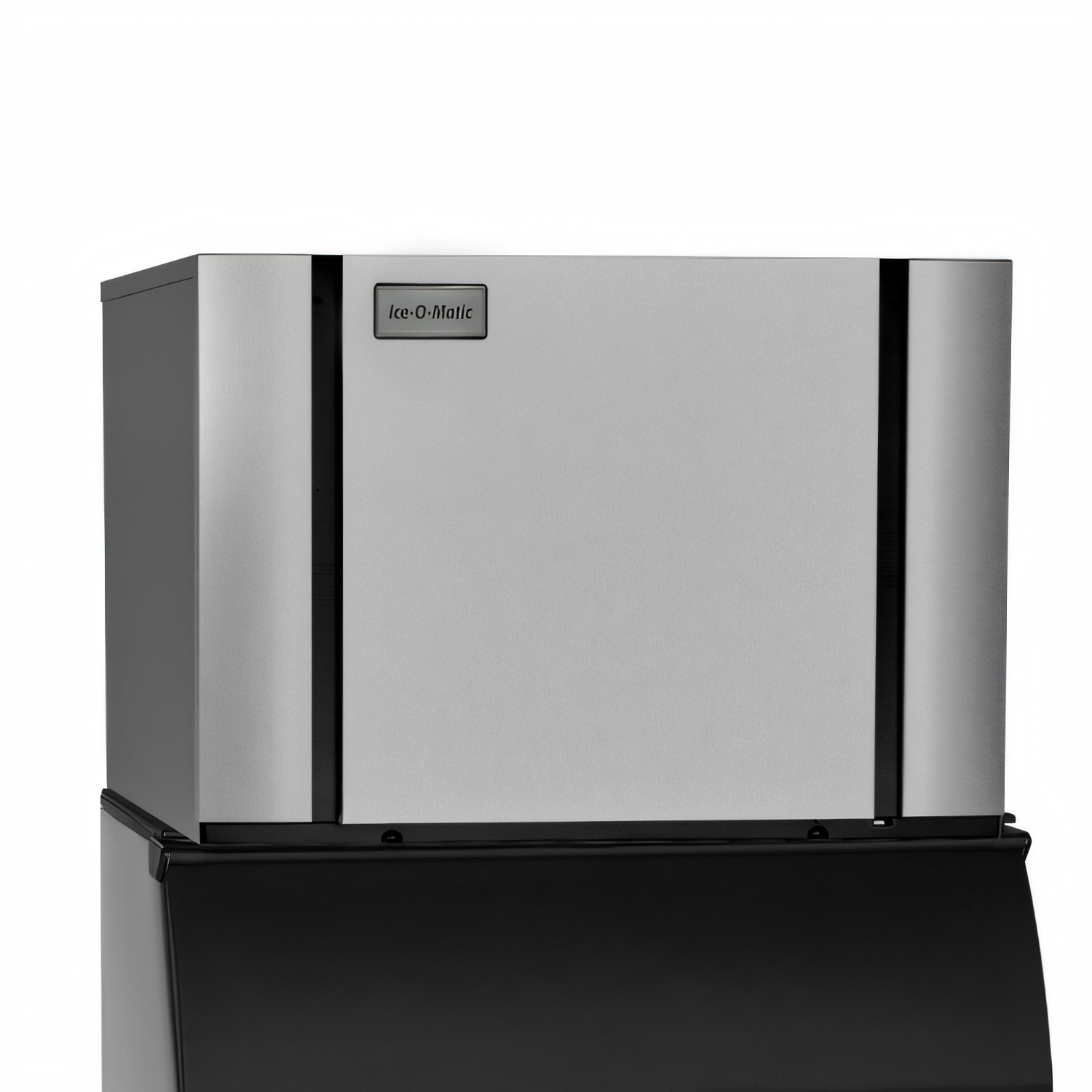

Ice-O-Matic Elevation Series™ CIM2046W Modular Cube Ice Maker
Water-Cooled • Half-Cube • 1,860 lb / 24 hr ProductionReplace the legacy ICE1806HW & ICE2106HW with Ice-O-Matic’s next-generation Elevation Series™—a powerful, space-saving cuber engineered for extreme volumes and easier, safer sanitation.
Key Advantages

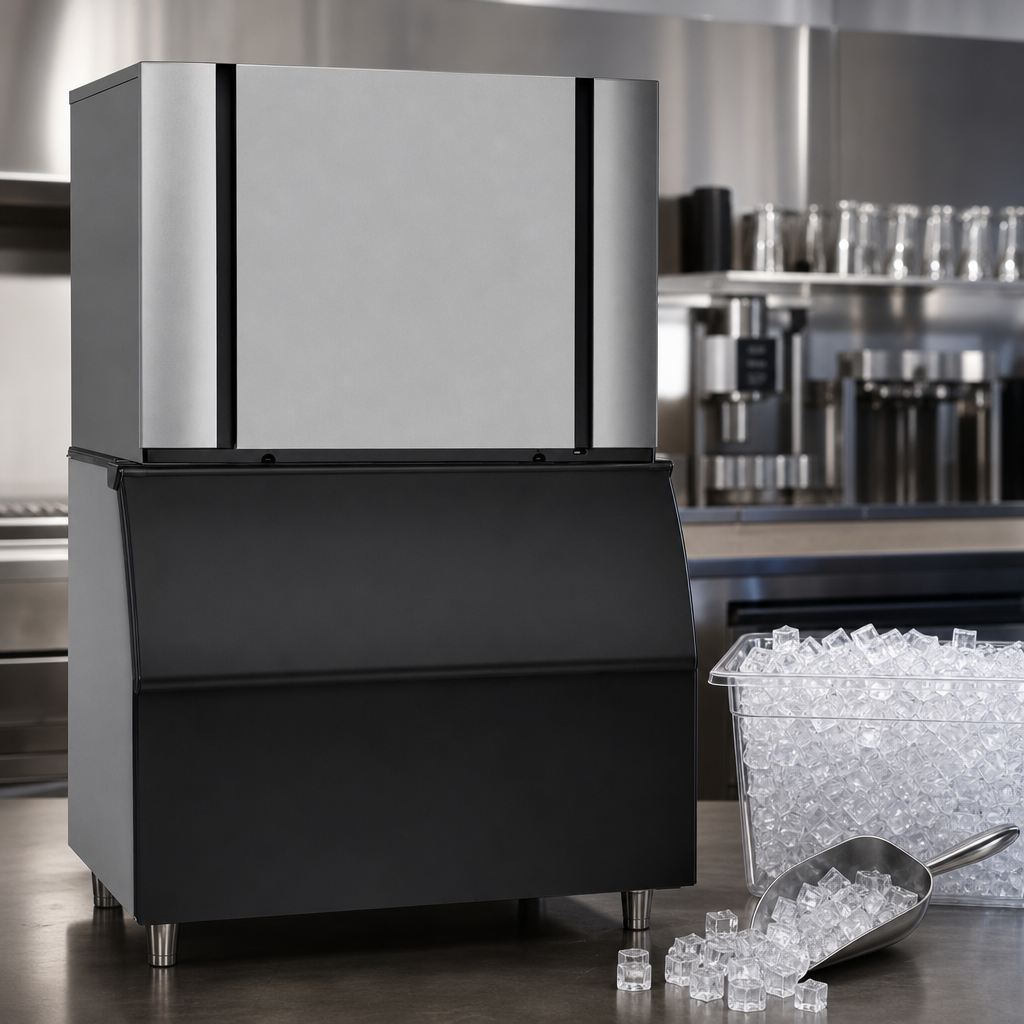

- 1,860 lb daily output (844 kg) keeps pace with stadiums, hotels & high-volume QSRs.
- Water-cooled, self-contained condenser eliminates hot-air exhaust for cooler, quieter kitchens.
- Dual top / side exhaust increases installation flexibility under low ceilings or against walls.

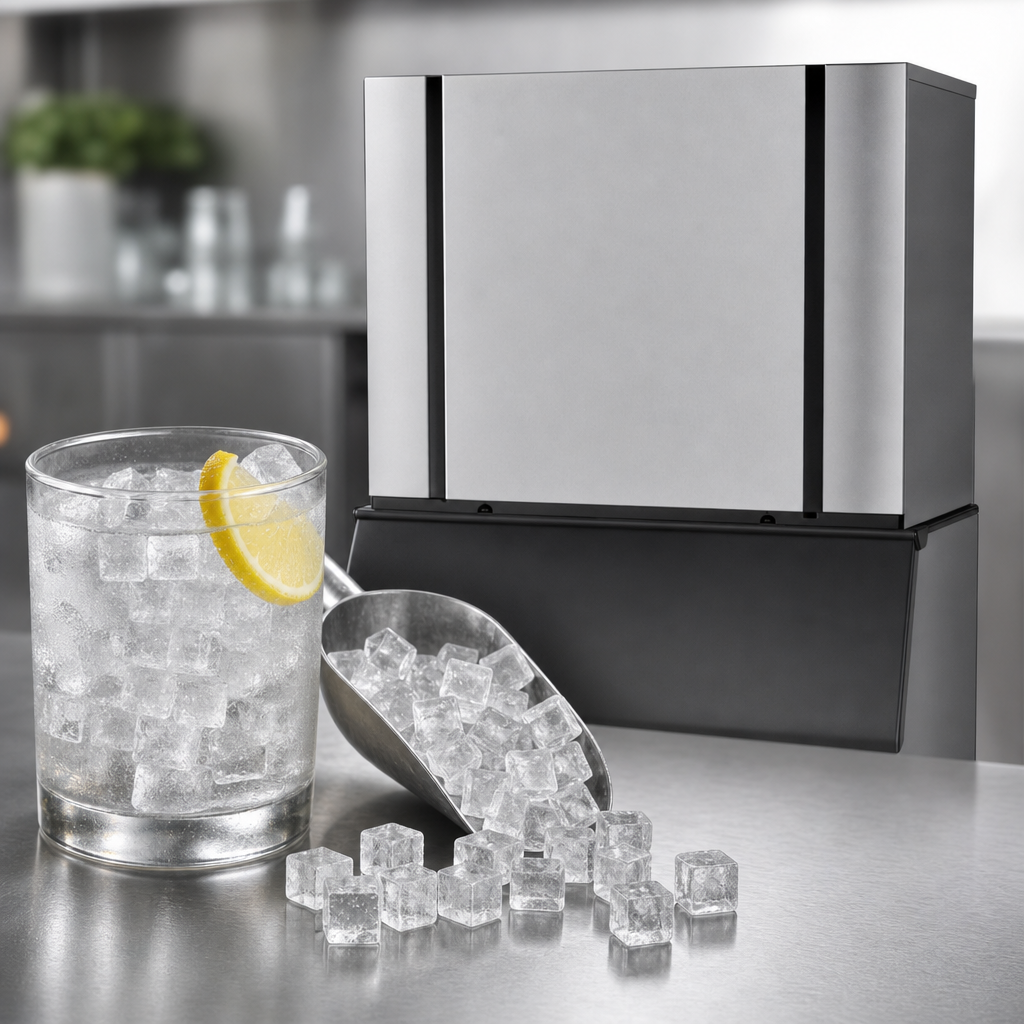

- Half-size cube (⅜ × ⅞ × ⅞ in) balances rapid cooling with premium beverage presentation.
- Exclusive PURE ICE® antimicrobial protection inhibits bacteria on all food-zone surfaces.
- Harvest Assist improves efficiency and prolongs compressor life.
- Tool-free, dishwasher-safe food-zone parts snap out in seconds for deep cleaning.
- One-touch sanitizing & descaling cycle with intuitive LED status display.
- Corrosion-resistant aluminum cabinet & nickel-plated evaporator plates for long-term durability.
- Industry-leading warranty—up to 7 years parts & labor on the evaporator when enrolled in the Ice-O-Matic filter program (U.S./Canada).
- Third-party approvals: cULus • NSF • CE.
Performance & Utilities
| Ice production (70 °F air / 50 °F water) | 1,860 lb (844 kg) / 24 hr |
|---|---|
| Ice production (90 °F air / 70 °F water) | 1,639 lb (743 kg) / 24 hr |
| Ice type | Half Cube – ⅜" × ⅞" × ⅞" (10 × 22 × 22 mm) |
| Potable water use | 14.8 gal per 100 lb of ice |
| Condenser water use | 150 gal per 100 lb of ice |
| Energy consumption | 24.1 kWh per 100 lb of ice |
| Electrical | 208-230 V / 60 Hz / 1-Ph – 24.1 MCA, 40 A max breaker |
| Refrigerant | R-404A |
Dimensions
| Width | 48.25 in (1,226 mm) |
|---|---|
| Depth | 24.25 in (616 mm) |
| Height | 26.8 in (681 mm) |
| Shipping weight | ≈ 335 lb (152 kg) |

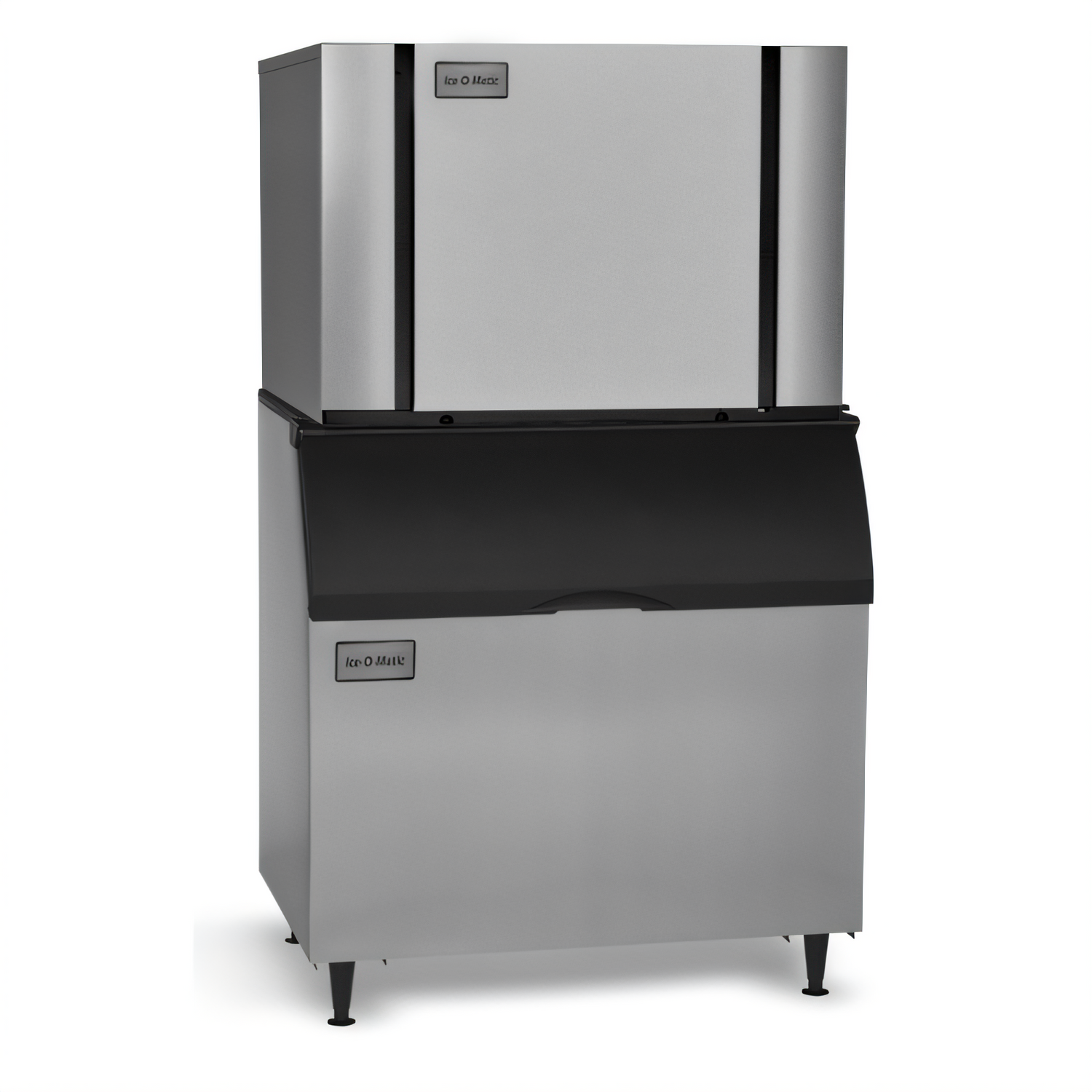

Recommended Storage Bins (sold separately)
- B1000-48 – 1,000 lb capacity
- B1300-48 – 1,320 lb capacity
- B1325-60 – 1,325 lb capacity
Why Operators Love Elevation Series
- Saves labor: tool-free disassembly cuts cleaning time by up to 50 %.
- Saves space: only 26.8" tall—fits where competing high-capacity cubers can’t.
- Saves money: lower kWh per 100 lb than previous generations, plus extended warranties with proper filtration.
Important: Unit must be installed by a certified refrigeration technician and connected to a
dedicated cold-water supply. Participation in the Ice-O-Matic filter program is required to activate the extended
evaporator warranty.
Features & Specs
Features & Specs
Manufacturer
Ice-O-Matic
Brand_name
Elevation Series™
Certifications
NSF, CE, cULus
Height
33.0in
Width
27.0in
Depth
51.0in
Shipping Weight
329.0lbs
Width (side - side)
40 - 49" wide
Refrigeration
self-contained refrigeration
Condenser Type
water-cooled
Ice Type
half size / half dice cubes
Production per 24 hr
1801 - 1900 lb = 818 - 862 kg
Specifications
Elevation Series™ Modular Cube Ice Maker, water cooled, self-contained condenser, dual exhaust top/side discharge, 48"W, approximately 1860 lb production/24 hours at 70°/50° (1690 lb at 90°70°), half size cube, PURE ICE® built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE (Replaces ICE1806HW / ICE2106HW)
