Ice-O-Matic

Ice-O-Matic Elevation Series Remote-Cooled Modular Half Size Cube Ice Maker, 48.25-Inch Wide, 1,830 lb/Day

SKU: CIM2046HR49
$9,484.91
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Ice Machines Ice Makers & Bins Ice-O-Matic New Arrivals Restaurant Equipment

Ice-O-Matic Elevation Series Remote-Cooled Modular Half Size Cube Ice Maker, 48.25-Inch Wide, 1,830 lb/Day

Remote condenser sold separately; half-size cubes; 208-230V, 1-phase

This remote-cooled modular ice maker delivers high-volume half-size cube production with easy-clean components and one-touch maintenance controls.

  • Produces up to 1,830 lb of half-size cube ice per 24 hours at 70°F air / 50°F water.
  • Remote-cooled head; remote condenser and lineset are sold separately.
  • LED status display and one-touch sanitize/descaling controls simplify routine maintenance.
  • Front-facing evaporator and dishwasher-safe food-zone components help speed cleaning.
  • Harvest Assist technology supports consistent production while helping reduce energy use.
  • Durable aluminum construction with electroless nickel-plated evaporator plates is built for long-term reliability.

Overall Dimensions:

48.25"W x 24.25"D x 26.8"H

Product Weight:

329.0 lb

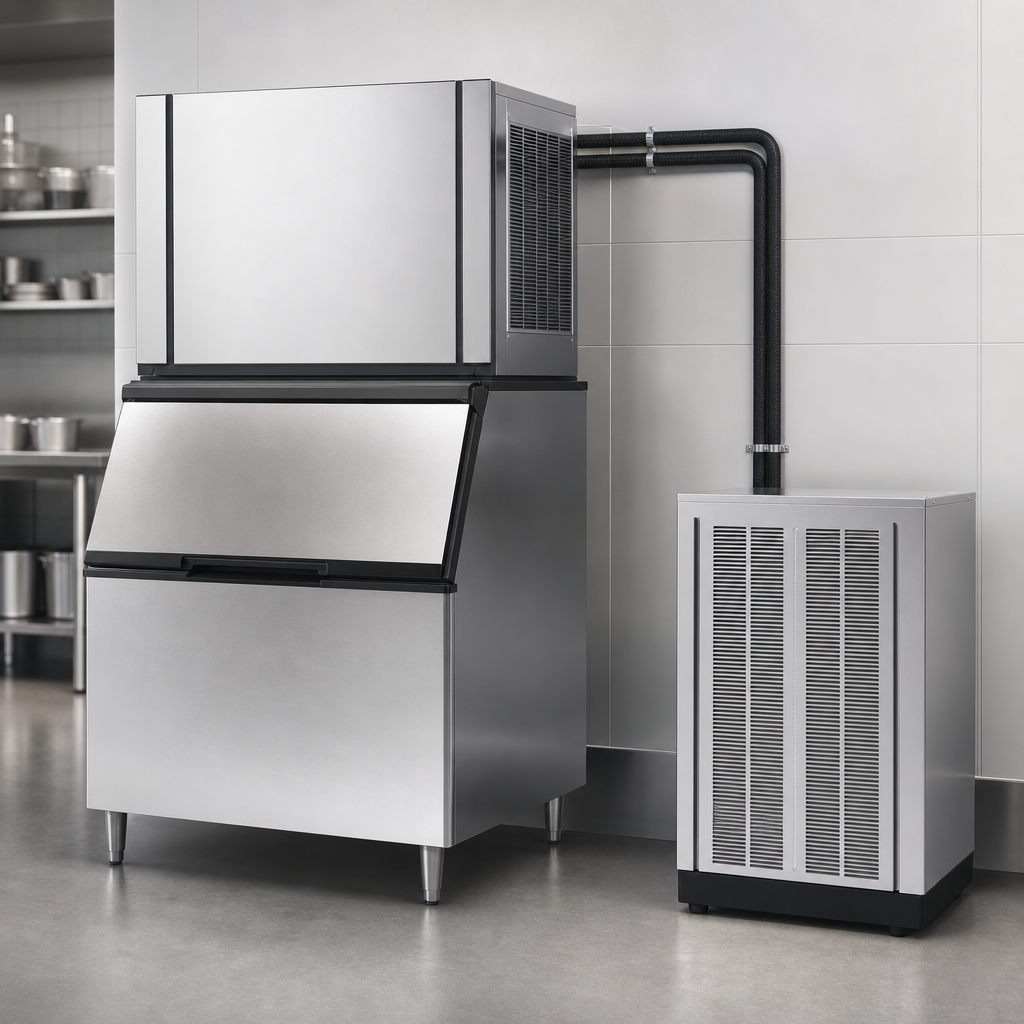

Remote-Cooled Modular Design

Ice maker head is designed to install on a bin or dispenser with a separate remote condenser.

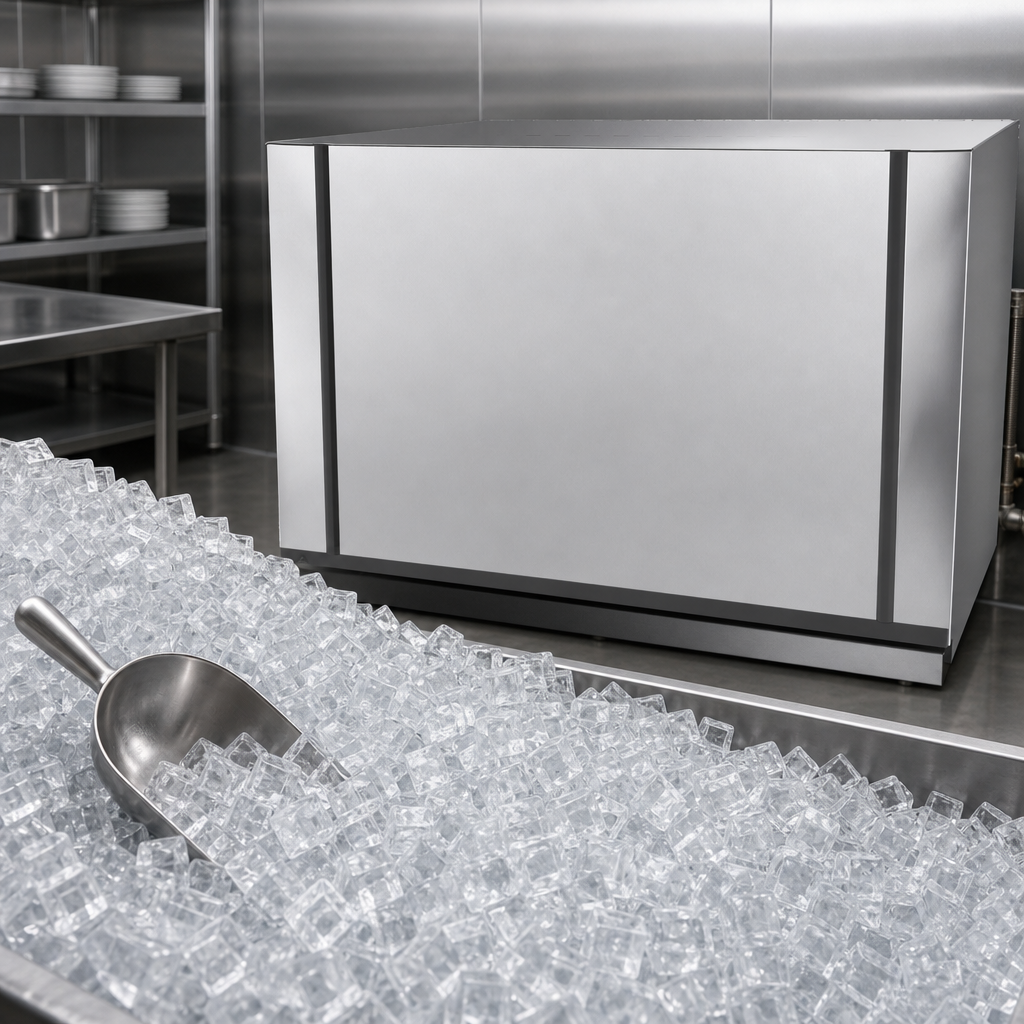

High Ice Output

Produces up to 1,830 lb per 24 hours at 70°F air / 50°F water and 1,485 lb per 24 hours at 90°F air / 70°F water.

Half Size Cube Ice

Makes half-size cubes measuring 3/8 x 7/8 x 7/8 in. (10 x 22 x 22 mm).

Easy-Clean Food Zone

Front-facing evaporator and dishwasher-safe plastic components help simplify cleaning and reduce downtime.

One-Touch Maintenance Controls

Built-in sanitize and descaling controls help streamline routine upkeep.

Harvest Assist Technology

Supports consistent ice production over the life of the machine while helping lower energy consumption.

Durable Construction

Constructed with corrosion-resistant, fingerprint-proof aluminum and electroless nickel-plated evaporator plates for added durability.

Type Modular Cube Ice Maker
Style Half Size Cube
Refrigeration Type Remote Cooled
Ice Production 1,830 lb per 24 Hours at 70°F Air / 50°F Water
Ice Production High Ambient 1,485 lb per 24 Hours at 90°F Air / 70°F Water
Voltage 208-230 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 22.5 Amps
Breaker Size 35 Amps
BTU 29,600 BTU/Hr
Refrigerant Type R449A
Refrigerant Charge 292 oz
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 3/4 Inch FPT
Water Connection Required
Drain Connection Required
Material Aluminum
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor on the ice maker; 5 years parts on the evaporator and compressor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Options PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. This is a remote-cooled ice maker head; the remote condenser and lineset are sold separately.
It produces half-size cube ice, measuring 3/8 x 7/8 x 7/8 in. (10 x 22 x 22 mm).
Up to 1,830 lb per 24 hours at 70°F air / 50°F water, or 1,485 lb per 24 hours at 90°F air / 70°F water.
It requires 208-230V, 60 Hz, single-phase power, draws 22.5 amps, and uses a 35 amp max breaker.
The document lists B110, B1000-48, B1300-48, B1325-60, and B1660-60 as compatible bins.
Yes. The plastic food-zone components are dishwasher safe up to 180°F.
