Ice-O-Matic CIM2046HR Elevation Series™ Ice Machines
Description

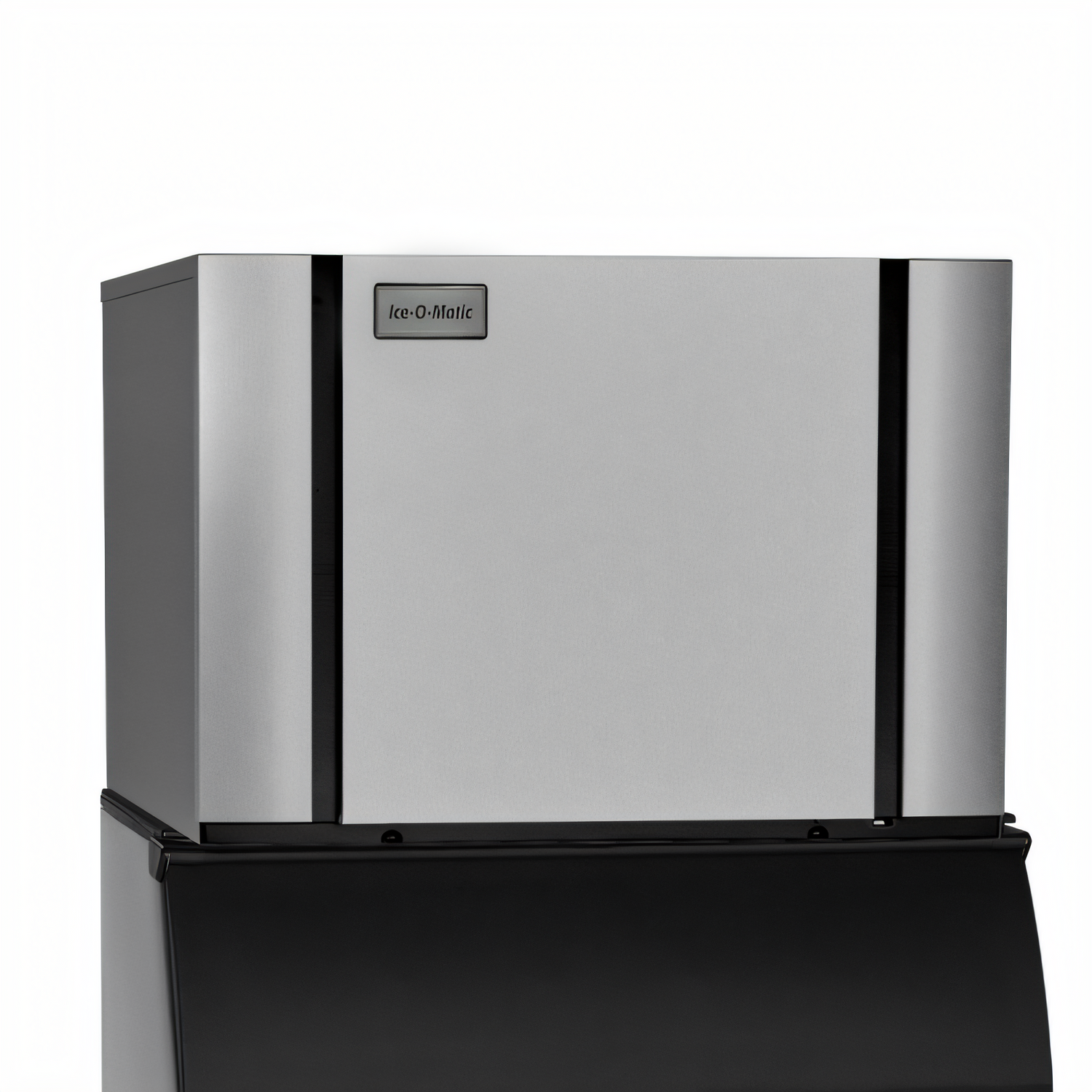

Elevation Series™ Modular Cube Ice Maker – Remote Air-Cooled
Models CIM2046R (1-Phase) & CIM2047R (3-Phase) • Half-Cube • 48 in WideProduce a mountain of crystal-clear ice without crowding the kitchen. Ice-O-Matic’s Elevation Series™ remote modular cuber delivers up to 1,830 lb of half-cube ice every 24 hours* while keeping noise and heat outdoors, all in a space-saving 26.8 in (681 mm) tall cabinet.
Product Highlights
- Remote Air-Cooled design keeps heat & compressor noise outside—ideal for hot kitchens.
- Dual-Exhaust top/side discharge allows flexible installation against walls or under low ceilings.
- Pure Ice® built-in antimicrobial protects the food zone for the life of the machine.
- Harvest Assist technology boosts daily yield while lowering energy consumption.
- One-Touch Sanitize & Descale buttons slash maintenance time.
- Dishwasher-safe food zone parts come out in seconds—no tools required.
- Bright LED status display gives instant feedback on production, cleaning, or service alerts.
- Rugged, corrosion-resistant aluminum cabinet with fingerprint-proof plastic trim.
Built-In Hygiene
- Pure Ice® antimicrobial reduces bacteria growth on every interior surface.
- Optional SafeIce™ Ozone Purification system destroys viruses, mold, and odors—factory or field installed.
- Food-zone components are 100 % BPA-free and NSF-listed.
Performance You Can Count On
| Specification | CIM2046R | CIM2047R |
|---|---|---|

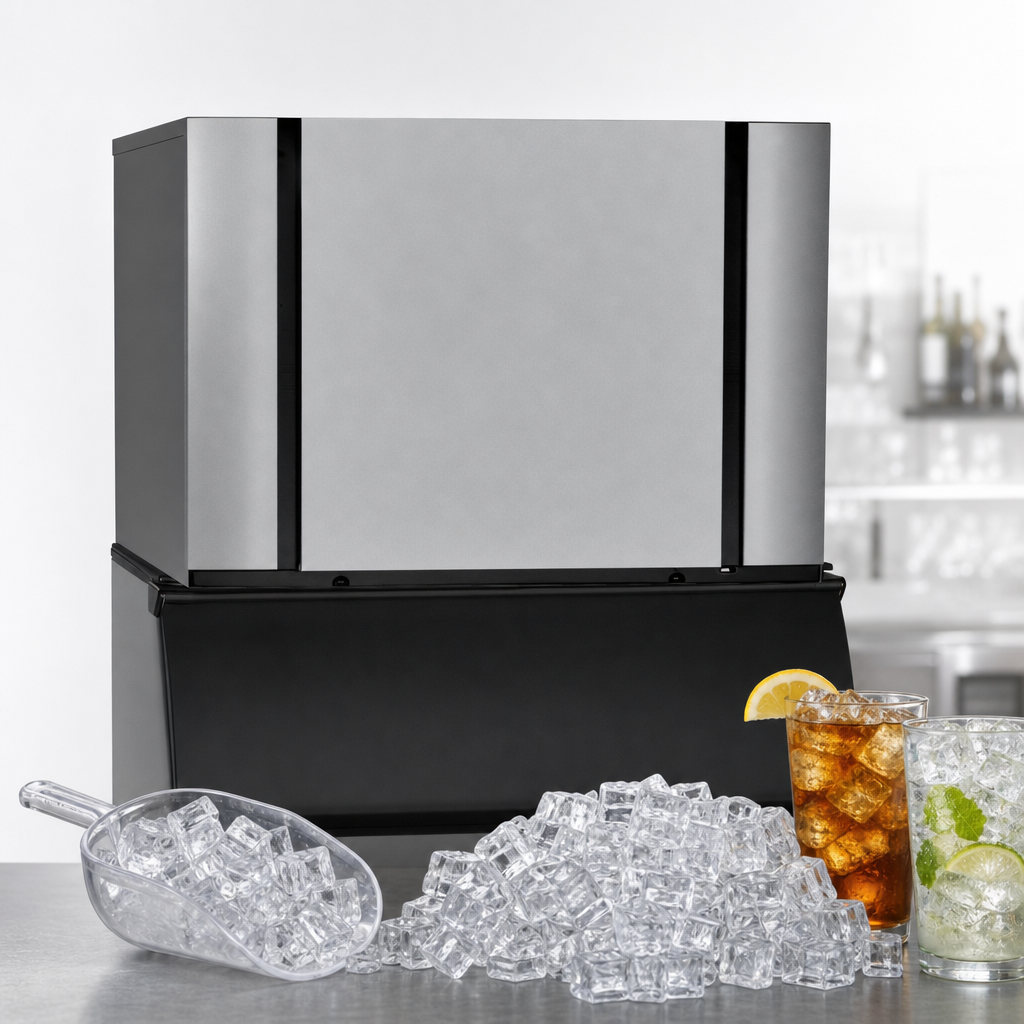

| Ice type / size | Half Cube ⅜ in × ⅞ in × ⅞ in (10 × 22 × 22 mm) | |

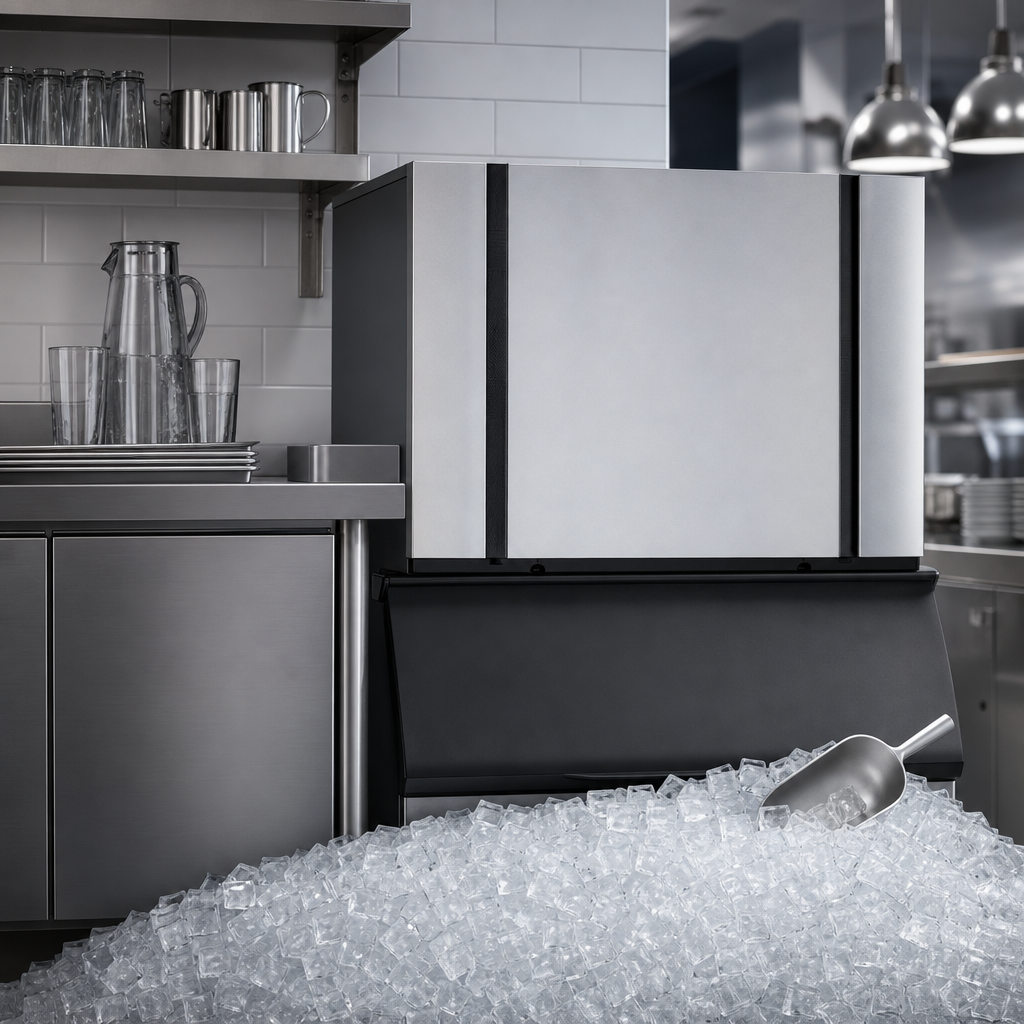

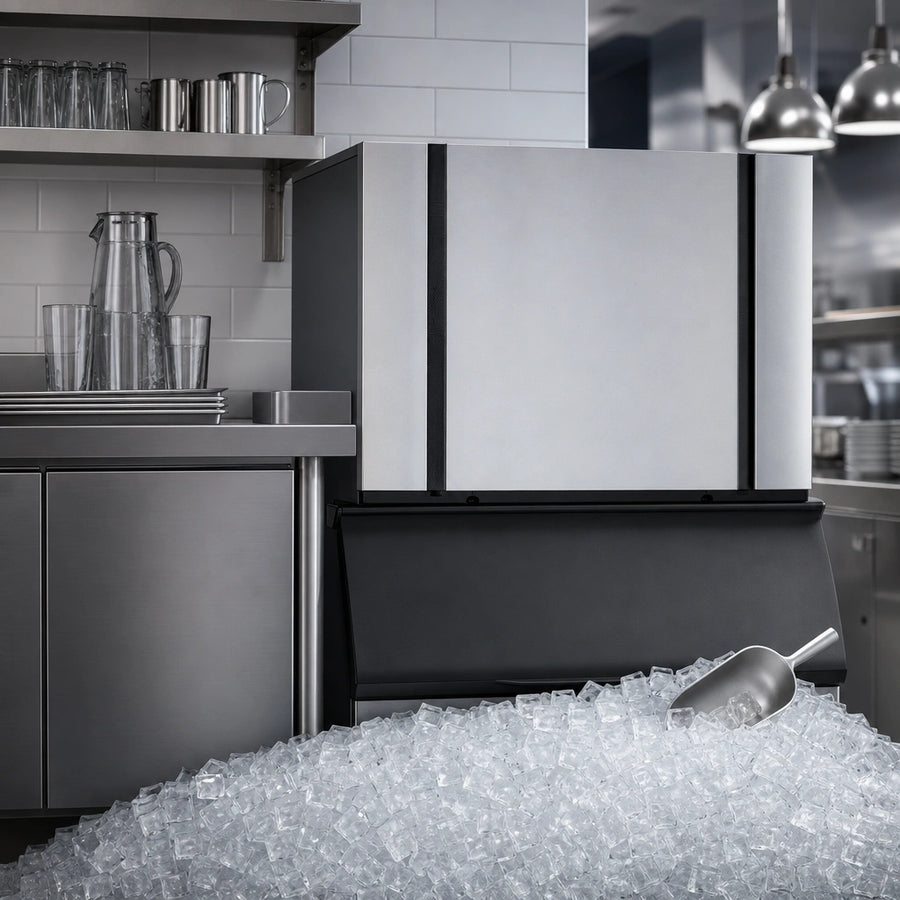

| 24-hr production* | 1,830 lb @ 70 °F air / 50 °F water 1,533 lb @ 90 °F air / 70 °F water |
|
| Energy use | 25.6 kWh / 100 lb | 16.6 kWh / 100 lb |
| Water use | 14.9 gal potable / 100 lb ice | |
| Electrical | 208-230 V, 60 Hz, 1-Phase, 40 A MCA | 208-230 V, 60 Hz, 3-Phase, 25 A MCA |
| Dimensions (W×D×H) | 48.25 × 24.25 × 26.8 in (1226 × 616 × 660 mm) | |
| Refrigerant | R404A | |
| Remote condenser | Use Ice-O-Matic RCA-3561 (sold separately) | |
| Certifications | cULus • NSF • CE | |
*Production values shown for half-cube configuration.

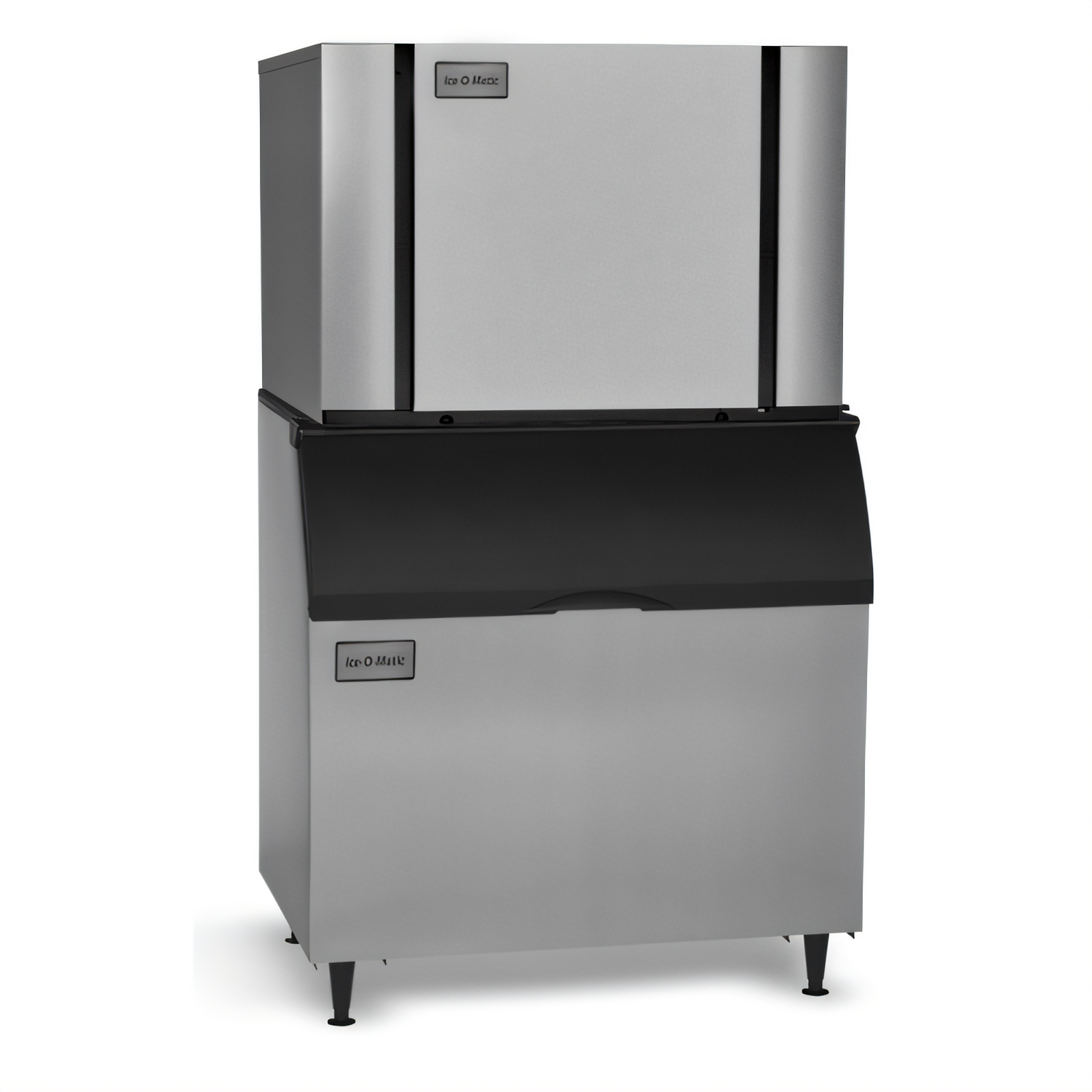

Bin & Dispenser Compatibility
The 48 in footprint mates perfectly with the Ice-O-Matic slope-front or upright bins below—no adapter kit required.
| Ice Storage Bin | Bin Capacity |
|---|---|
| B700-30 | 680 lb (308 kg) |
| B1000-48 | 1,000 lb (454 kg) |
| B1300-48 | 1,320 lb (599 kg) |
| B1325-60 | 1,325 lb (601 kg) |
| B1600-60 | 1,660 lb (753 kg) |
Recommended Accessories (sold separately)
- IFQ2-XL water filtration manifold + two IOMQXL cartridges – extends evaporator warranty to 7 years.
- RCA-3561 Remote Condenser with optional grill guard kit.
- 82 oz or 16 oz KLSCO / KSSCO sanitary ice scoops.
Best-in-Class Warranty
- 3 years parts & labor on the entire machine.
- 5 years parts on compressors & evaporators.
- 7 years parts & labor on the evaporator when installed with Ice-O-Matic water filtration (USA & Canada).
Approvals & Compliance
- Meets NSF/ANSI sanitation standards for ice production.
- Certified to UL 563 and CSA C22.2 No. 120 for electrical safety.
- CE marked for international compliance.
Replaces legacy models ICE1806HR and ICE2106HR.
For optimum performance, maintain ambient temperatures between 50 °F – 100 °F (10 °C – 38 °C) and water pressure
between 20 – 80 PSI (1.4 – 5.5 bar).
