Ice-O-Matic Elevation Series Modular Full-Size Cube Ice Maker, 48.25-Inch Wide, Remote Cooled, 1,830 lb/Day

Remote Condenser Sold Separately

Built for high-volume operations, this modular ice maker combines daily output of up to 1,830 lb of full-size cubes with easy-clean components and remote-cooled flexibility.

  • Produces full-size cube ice at up to 1,830 lb per 24 hours at 70°F air / 50°F water.
  • Remote-cooled design allows the condenser to be placed separately for flexible installation.
  • Front-facing evaporator and dishwasher-safe food zone components simplify cleaning.
  • Harvest Assist helps maintain consistent ice production while reducing energy consumption.
  • LED status display and one-touch sanitize/descaling controls make operation easier.
  • Corrosion-resistant aluminum construction and electroless nickel evaporator plates support durability.

Overall Dimensions:

48.25"W x 24.25"D x 26.8"H

Product Weight:

329.0 lb

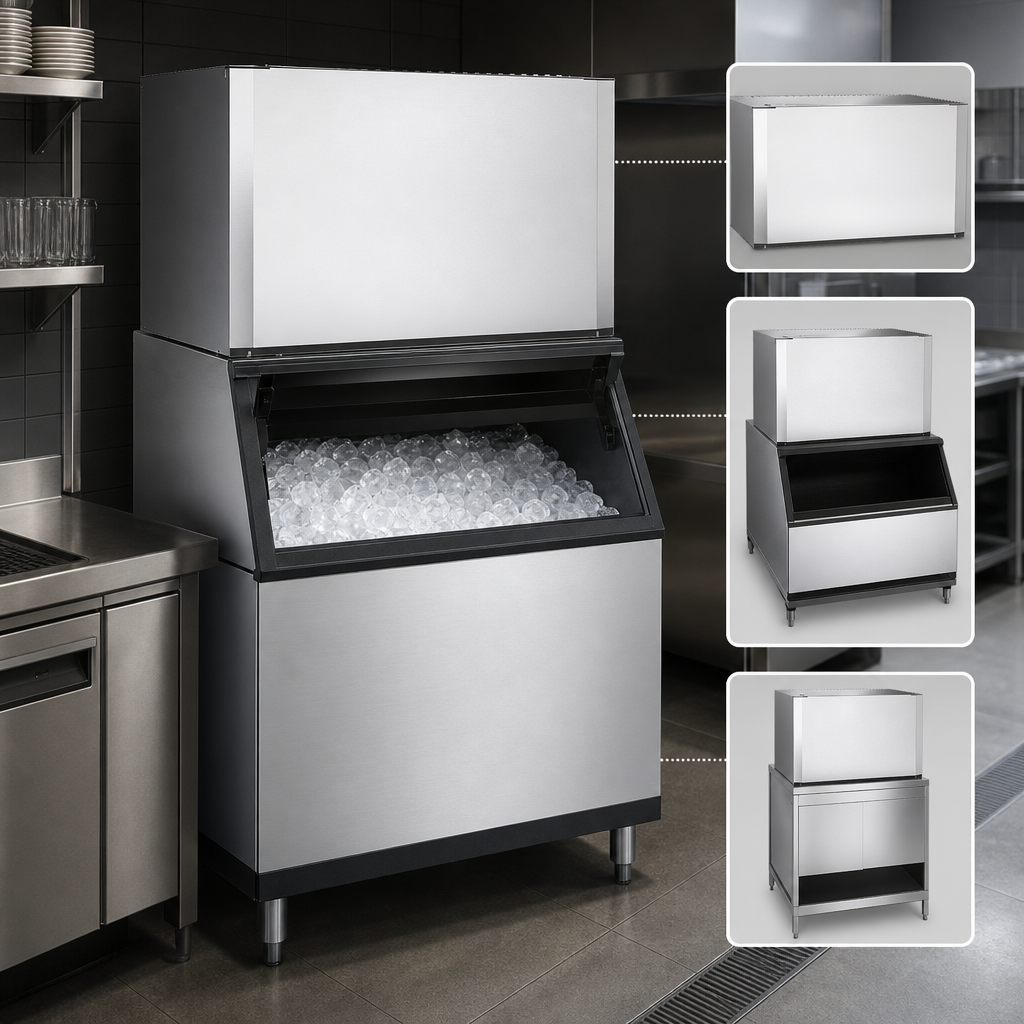

Modular Design

Designed to install on top of ice bins or dispensers for flexible application.

Full-Size Cube Ice

Produces 7/8 inch x 7/8 inch x 7/8 inch full cubes for standard beverage service.

Remote-Cooled Setup

Uses a remote condenser for installation flexibility; RC406C49 and RL49 series linesets are listed accessories.

Easy-Clean Food Zone

Front-facing evaporator and dishwasher-safe plastic components help simplify cleaning and maintenance.

Harvest Assist Technology

Supports consistent ice production over the life of the machine while helping reduce energy use.

Durable Ice-Making Surfaces

Electroless nickel plating on evaporator plates and corrosion-resistant aluminum construction help improve durability.

Sanitize and Descale Controls

One-touch controls simplify routine cleaning and descaling tasks.

LED Status Display

Provides at-a-glance operating status.

Type Cube Ice Maker
Style Modular
Refrigeration Type Remote
Capacity 1,830 lb per 24 Hours
Ice Form Full Cube, 7/8 Inch x 7/8 Inch x 7/8 Inch
Voltage 208-230 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 22.5 Amps
Breaker Size 35 Amps
BTU 29,600 BTU
Refrigerant Type R449A
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 3/4 Inch FPT
Material Aluminum
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor on the ice maker; 5 years parts on the evaporator and compressor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Options PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It makes full-size cube ice in a 7/8 inch x 7/8 inch x 7/8 inch form.
No. This model is remote cooled and the condenser is sold separately; RC406C49 and RL49-25, RL49-40, and RL49-75 linesets are listed accessories.
It produces about 1,830 lb per 24 hours at 70°F air / 50°F water and 1,502 lb per 24 hours at 90°F air / 70°F water.
The machine requires 208-230 Volts, 60 Hz, 1-phase power, with a 22.5 amp minimum circuit and a 35 amp maximum breaker.
Cleaning is simplified by the front-facing evaporator, dishwasher-safe plastic components, and one-touch sanitize/descaling controls.
