Ice-O-Matic CIM2046FR Elevation Series™ Ice Machines

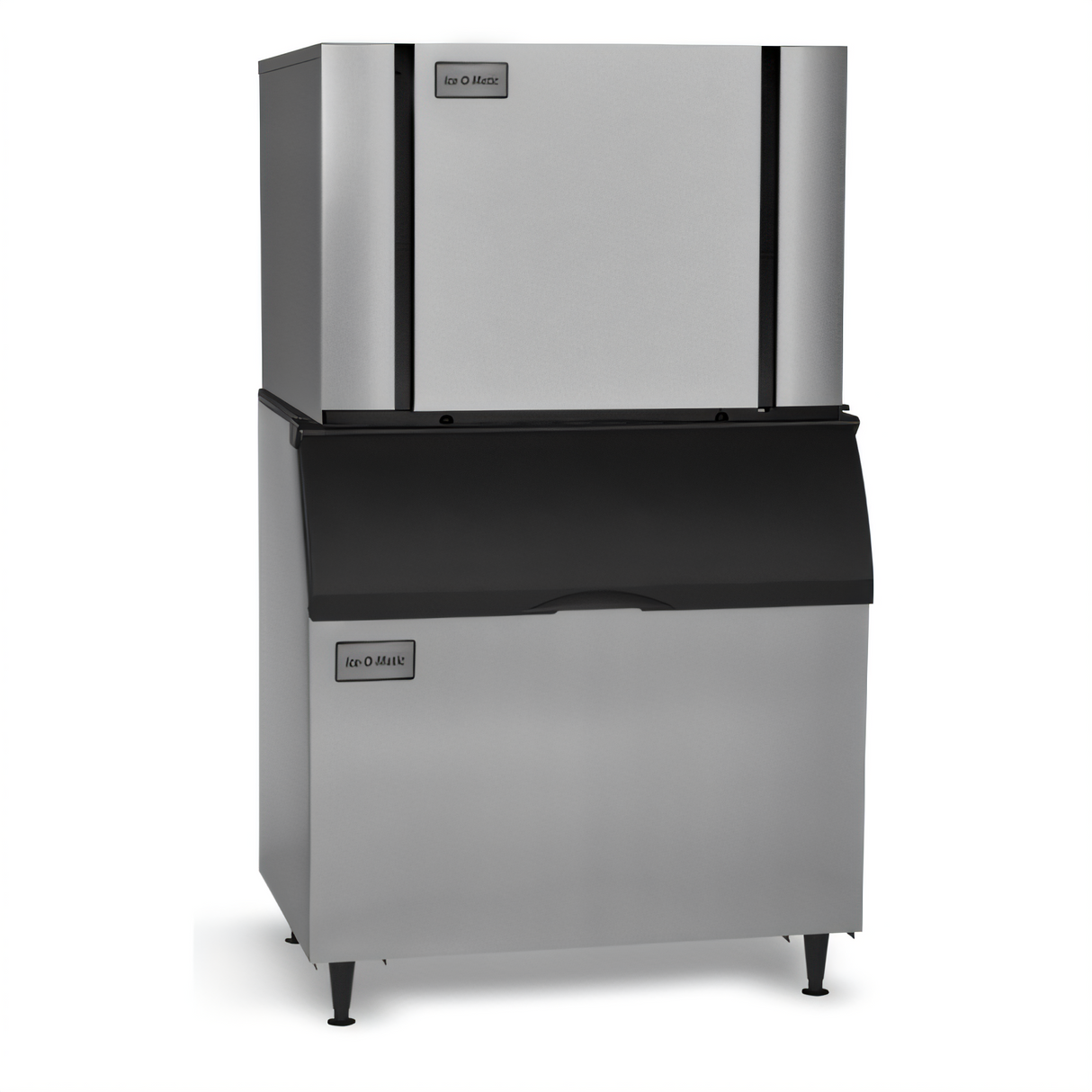

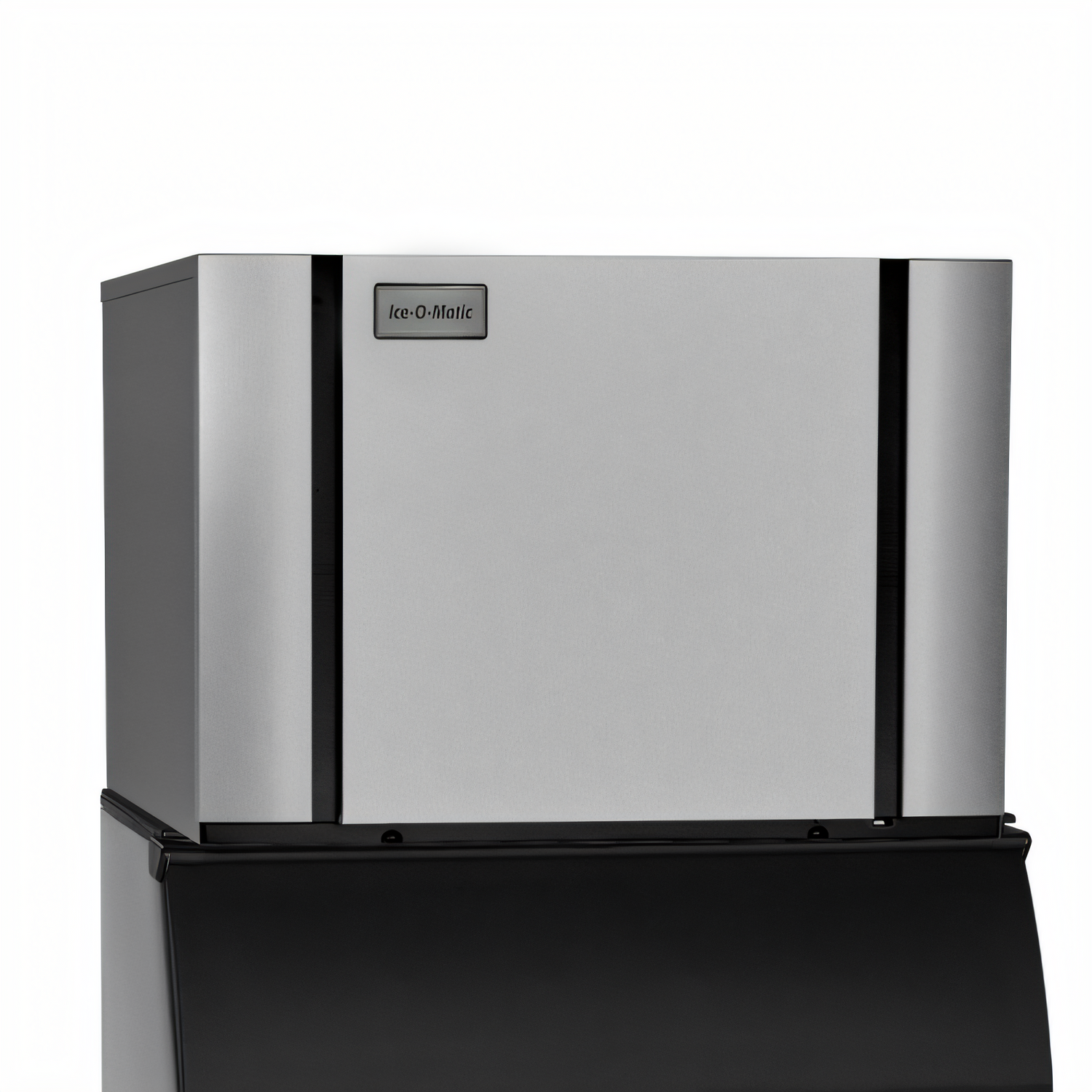

Ice-O-Matic Elevation Series™ CIM2046R / CIM2047R Modular Cube Ice Maker

Engineered for high-volume foodservice and hospitality venues, the Elevation Series delivers almost a ton of crystal-clear ice every 24 hours while slashing energy, water and labor costs. Its remote condenser keeps heat and noise outside, creating a cooler, quieter kitchen.

Key Benefits

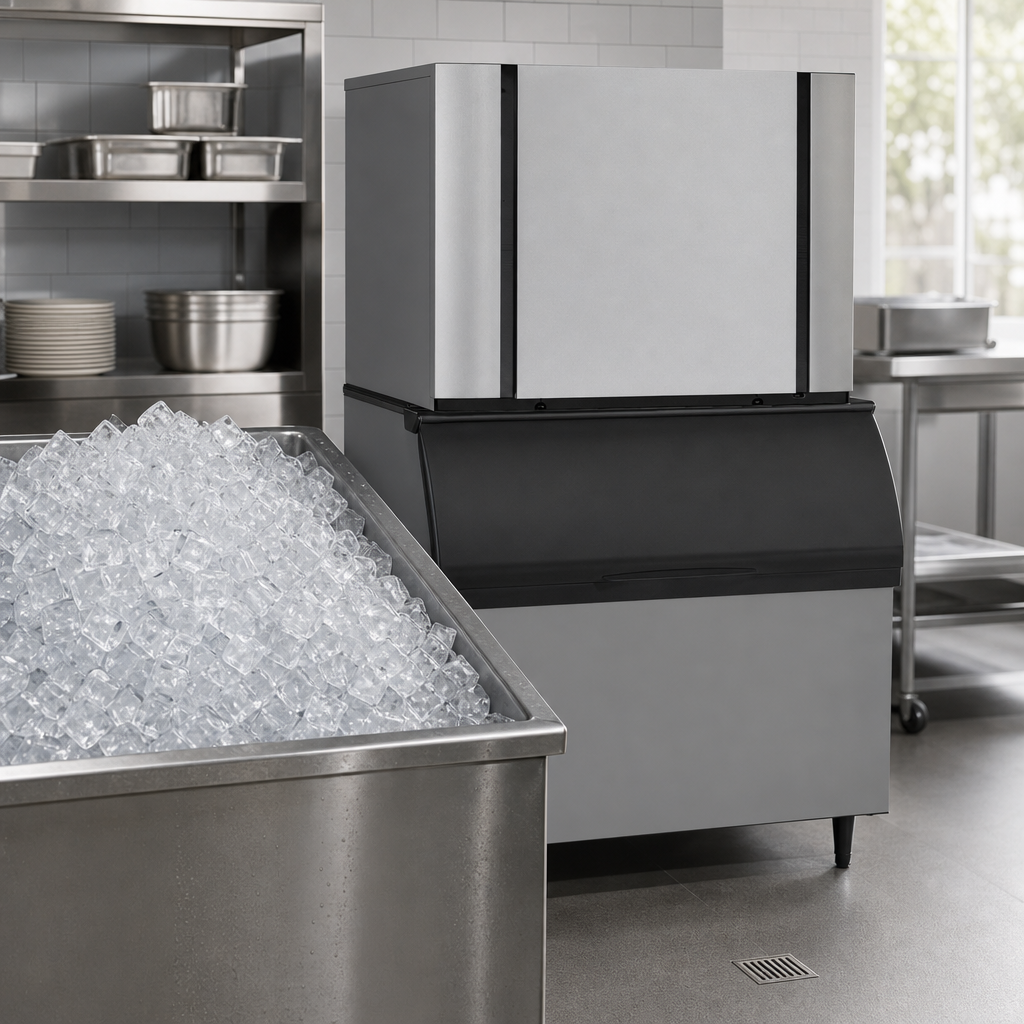

• Produces 1,830 lb (830 kg) per day at 70 °F air / 50 °F water (1,533 lb at 90 °F / 70 °F).

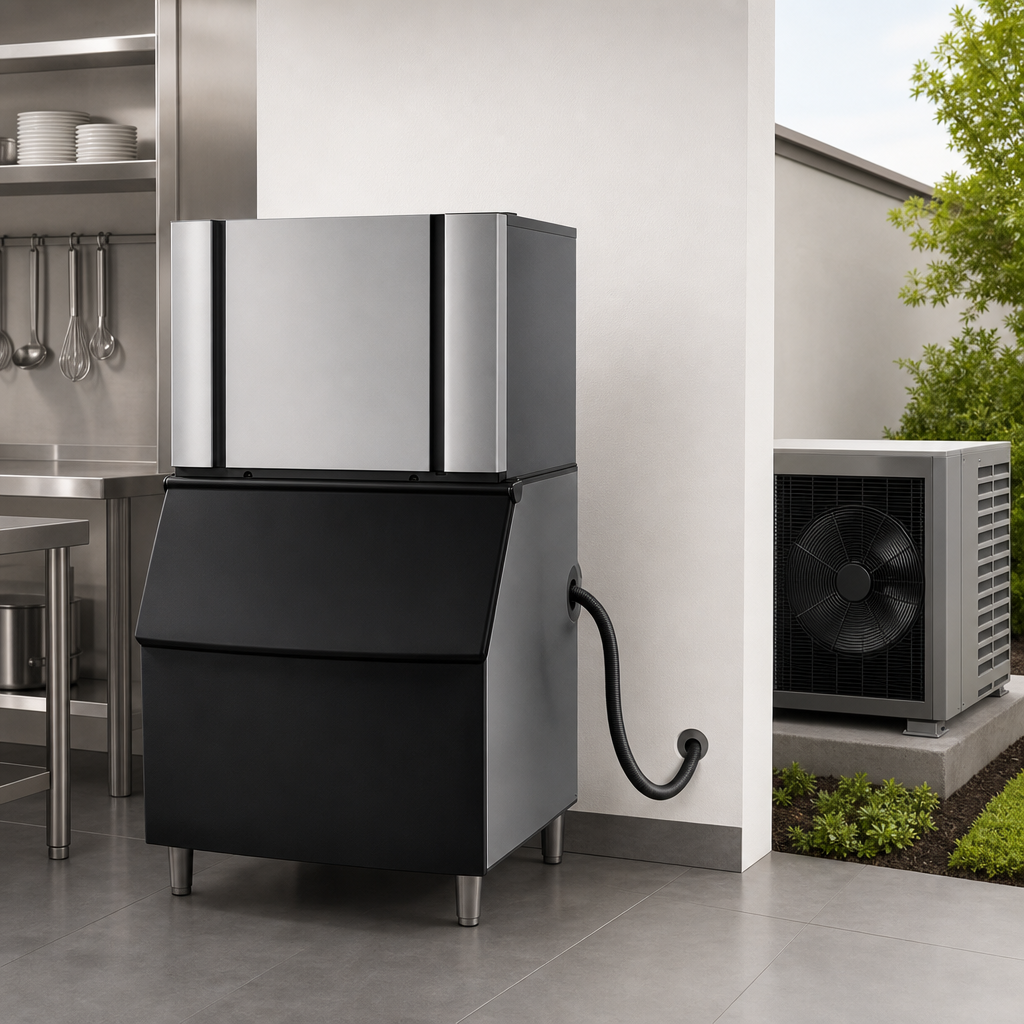

• Remote condenser design (R404A) removes heat from the kitchen for greater comfort and efficiency.
• Ultra-low 26.8″ profile fits under low ceilings and stacked installations.
• PURE ICE® built-in antimicrobial protection—Agion®-treated food zone inhibits bacteria for the life of the machine.
• Tool-free, dishwasher-safe food-zone components snap out in seconds.
• One-touch sanitize & descale cycles reduce preventive-maintenance time.
• LED status display provides instant machine diagnostics and reminders.
• Energy-saving Harvest Assist shortens cycle times and lowers operating cost.
• Electroless nickel-plated evaporator plates resist corrosion and extend service life.
• Corrosion-proof aluminum cabinet with fingerprint-resistant front panels.

Performance at a Glance

Ice Shape

• Full Cube – ⅞″ × ⅞″ × ⅞″ (22 × 22 × 22 mm)
• Slow-melting, crystal-clear cubes perfect for cocktails, soft drinks and bagged ice.

Dimensions & Connections

Compatible Ice Bins

• B700-30 – 680 lb capacity
• B110PS – 854 lb capacity (use KBT23 bin top)
• B1000-48 / B1300-48 – 1,000–1,320 lb capacity
• Other 48″ Ice-O-Matic upright bins—see bin chart for full list.

Certifications

• cULus
• NSF
• CE
• Agion® antimicrobial

Replaces legacy models ICE1806FR and ICE2106FR.

Register the machine with an Ice-O-Matic IFQ2-XL water filter (cartridge change every 6 months) to extend the evaporator warranty to 7 years parts & labor.
