Ice-O-Matic CIM1447HR Elevation Series™ Ice Machines
Description

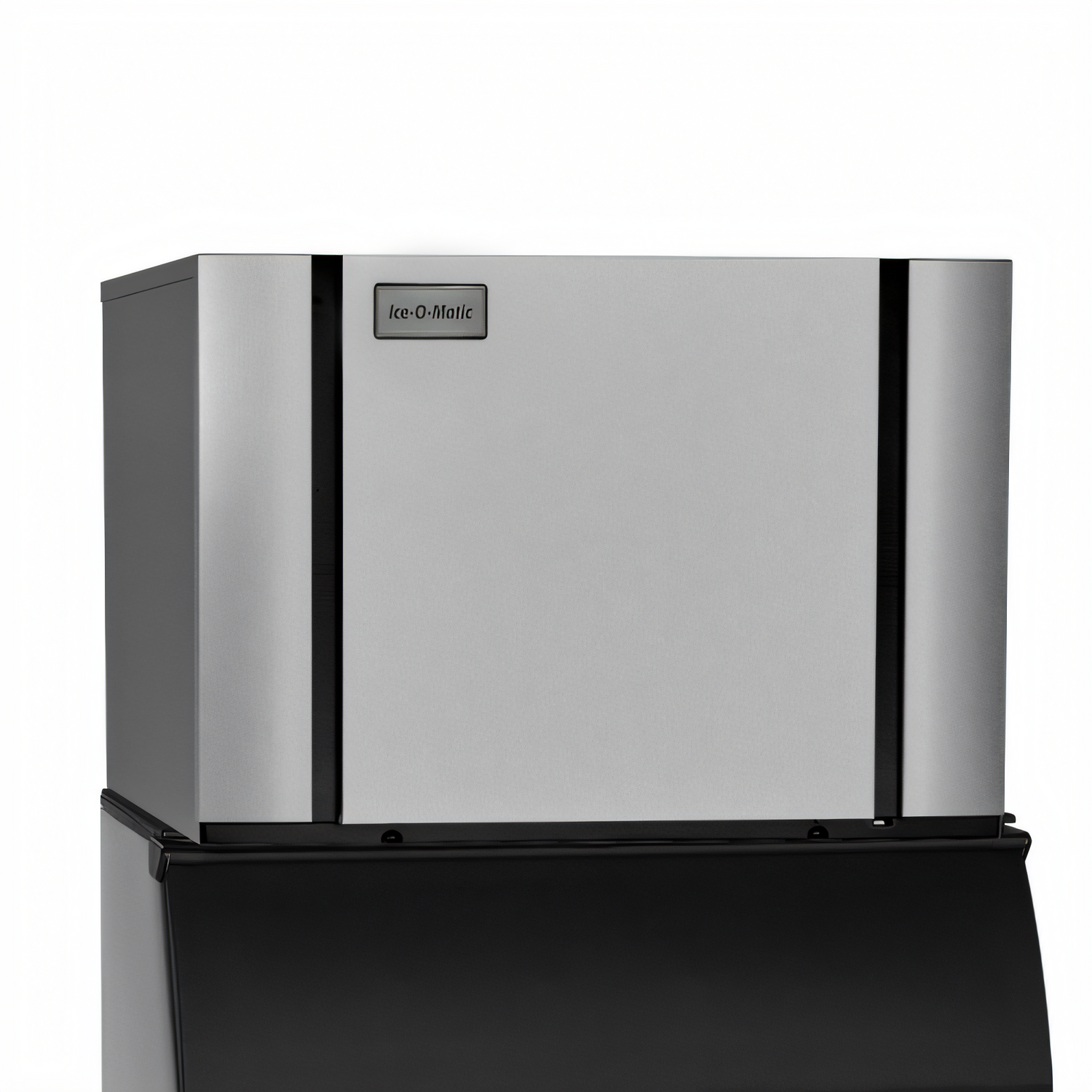

Ice-O-Matic Elevation Series™ Modular Cube Ice Maker
Remote Air-Cooled • Half-Cube • 1,560 lb / 24 hr • 48" WideThe Elevation Series™ CIM1447R replaces the legendary ICE1407HR with more ice, less energy and the industry’s simplest sanitation system. Delivering up to 1,560 lb of PURE ICE® every day, this low-profile 48" ice machine is built for busy restaurants, hotels and institutions that refuse to compromise on food safety or reliability.
Key Advantages
- High-volume output: 1,560 lb (708 kg) of ice per 24 hr at 70 °F air / 50 °F water.
- Dual Exhaust: Top or side discharge lets you tuck the unit into tight spaces without overheating.

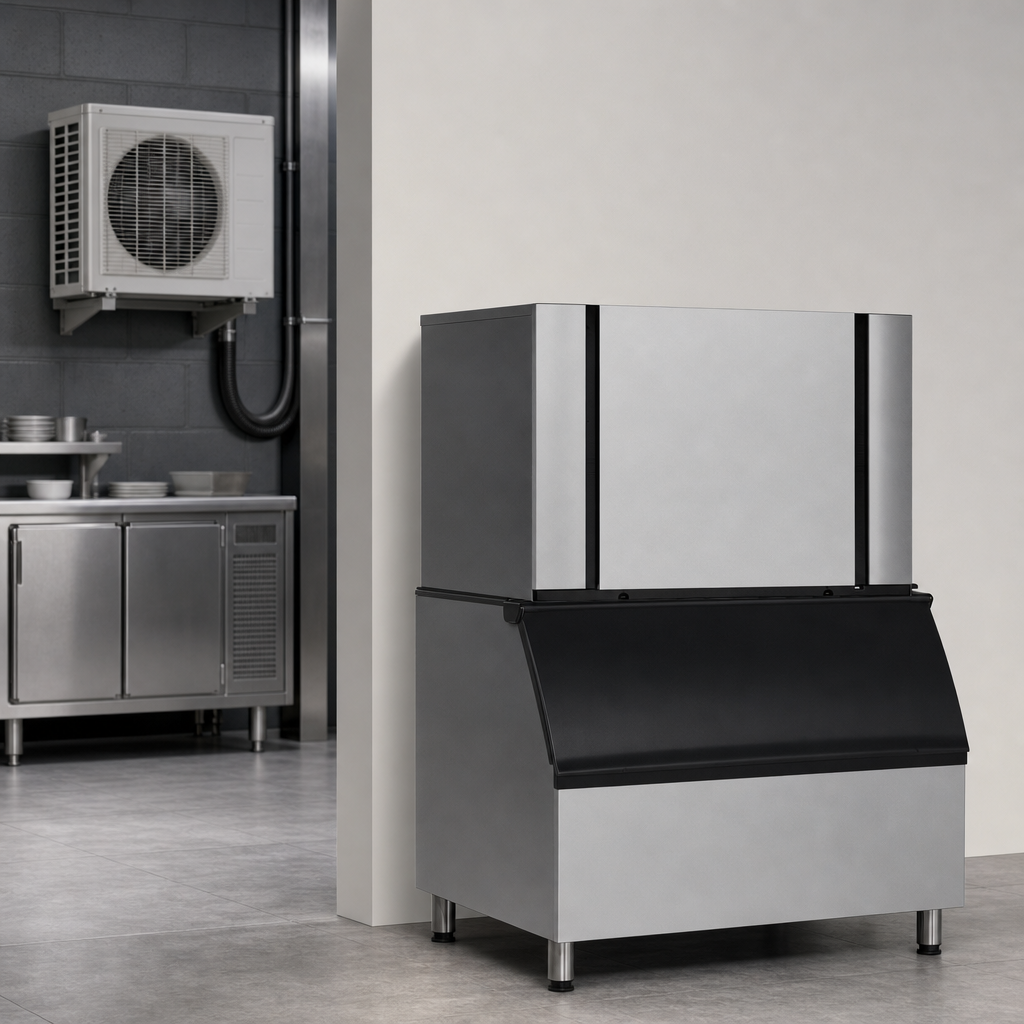

- Remote Air-Cooled: Keeps heat and noise outside the kitchen (RCA-3061 condenser sold separately).
- PURE ICE® antimicrobial protection is molded into the food-zone to inhibit bacteria for the life of the machine.
- One-Touch Sanitize & Descale cycle with dishwasher-safe food-zone components cuts cleaning time in half.
- Harvest Assist technology improves production while reducing energy use.
- Durable stainless-steel cabinet and electroless nickel-plated evaporator plates resist corrosion.
- Intuitive LED status display provides at-a-glance machine diagnostics.
- Low-profile 26.8" (681 mm) height fits beneath ceilings where other 48" machines won’t.
Ice Form

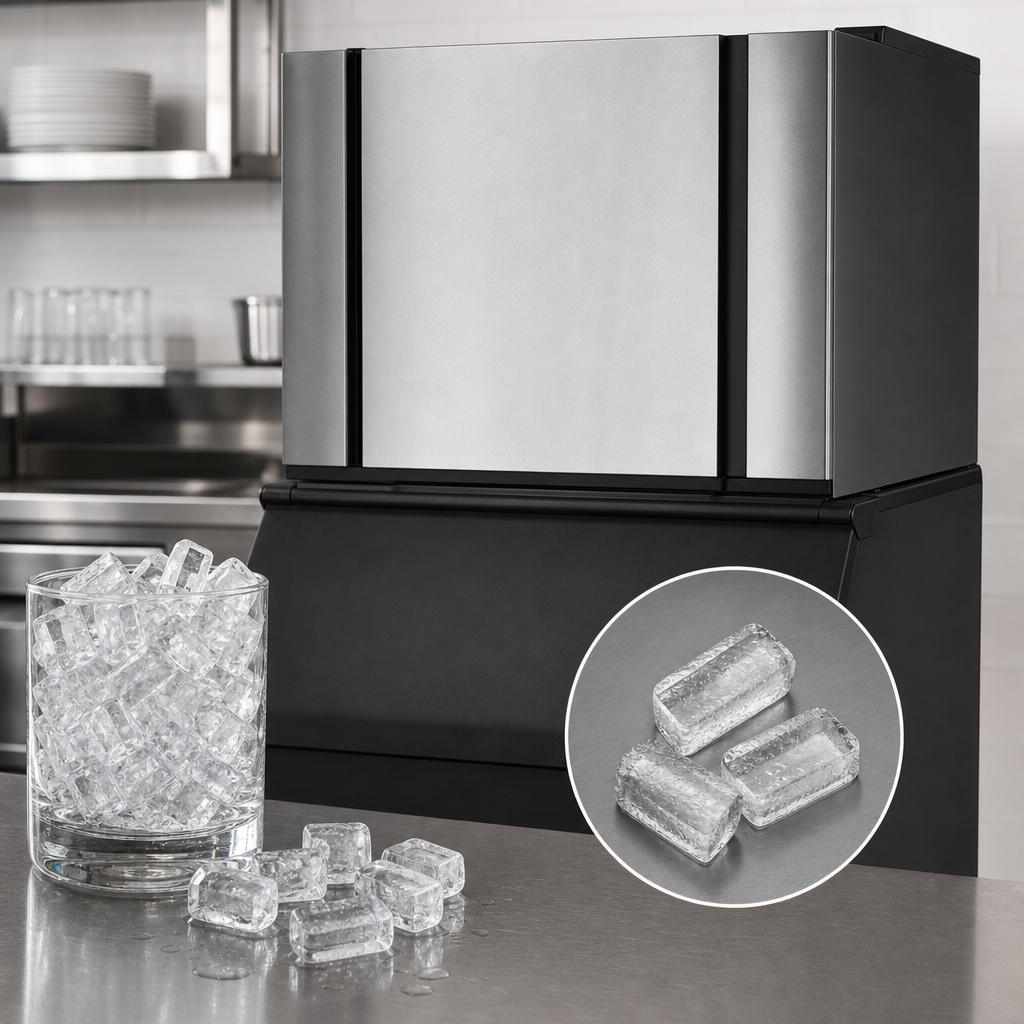

Half Cube – ⅜" × ⅞" × ⅞" (10 × 22 × 22 mm) Ideal for soft drinks, cocktails, ice bagging and rapid cooling applications.
Performance & Specifications
| Model | CIM1447R (Elevation Series) |
|---|---|
| Ice Production (70 °F air / 50 °F water) | 1,560 lb / 24 hr (708 kg) |
| Ice Production (90 °F air / 70 °F water) | 1,340 lb / 24 hr (607 kg) |
| Cooling System | Remote air-cooled – dual top/side exhaust |
| Dimensions (W × D × H) | 48.25" × 24.25" × 26.8" (1,226 × 616 × 660 mm) |
| Electrical | 208-230 V / 60 Hz – 1-phase (19.9 A) or 3-phase (13.6 A) |
| Refrigerant | R-404A |
| Water Connections | 3/8" FPT potable water inlet • 3/4" FPT drain |
| Approx. Shipping Weight | 280–310 lb (127–141 kg) |
| Certifications | cULus • NSF • CE |

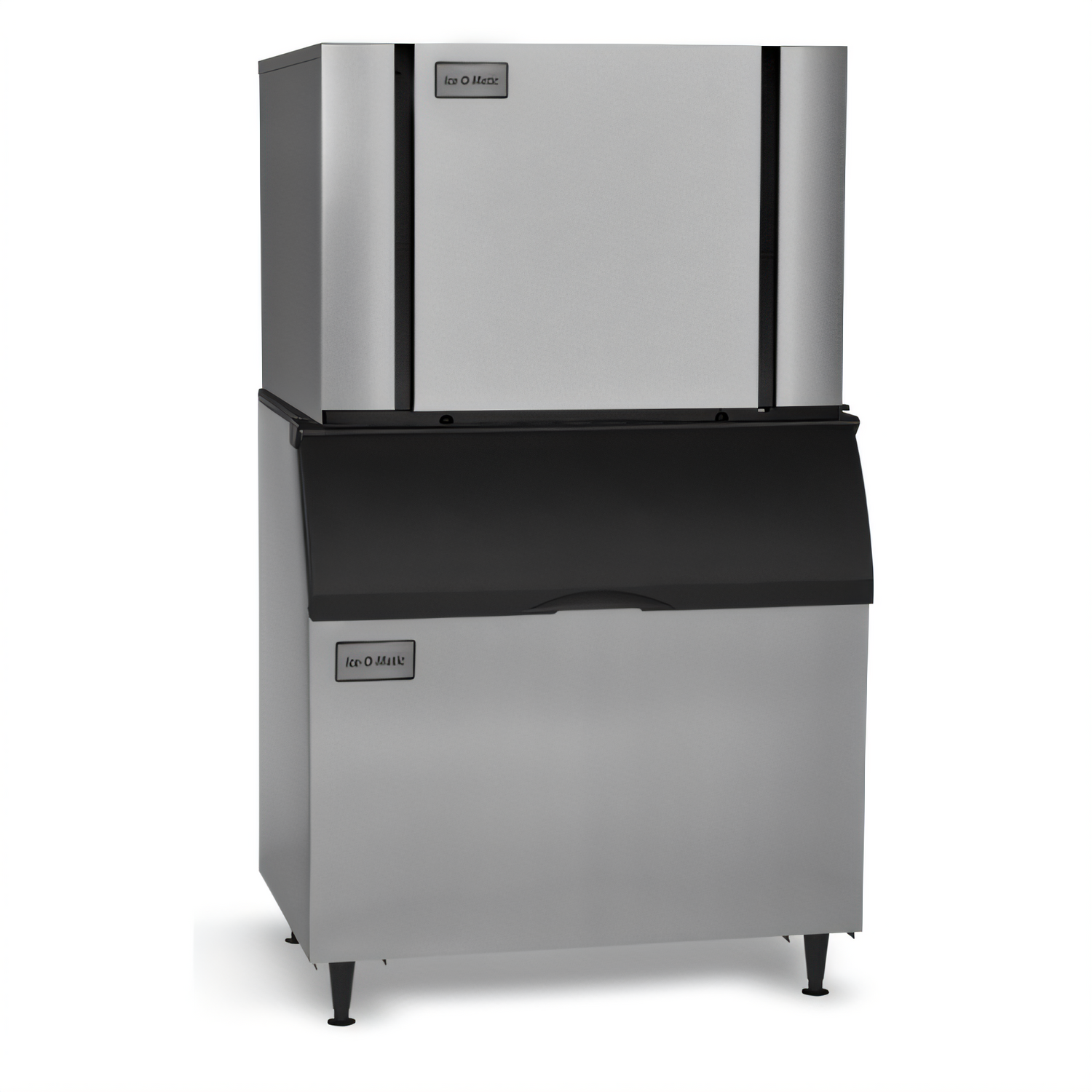

Compatible Ice Storage Bins (sold separately)
- B110PS – 854 lb capacity slope-front bin (no adapter kit required)
- B700-30, B1000-48, B1300-48, B1325-60 or B1600-60 upright bins for expanded storage
Adapter kits may be necessary for some combinations; contact us for guidance.
Industry-Leading Warranty
• 3 years parts & labor on the entire ice maker
• 5 years parts on the compressor & evaporator
• 7 years parts & labor on the evaporator when installed with an Ice-O-Matic water filter and enrolled in the filter program
