Ice-O-Matic CIM1447FR Elevation Series™ Ice Machines
Ice-O-Matic CIM1447FR Elevation Series™ Ice Machines is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Ice-O-Matic CIM1447FR Elevation Series™ Ice Machines
Description

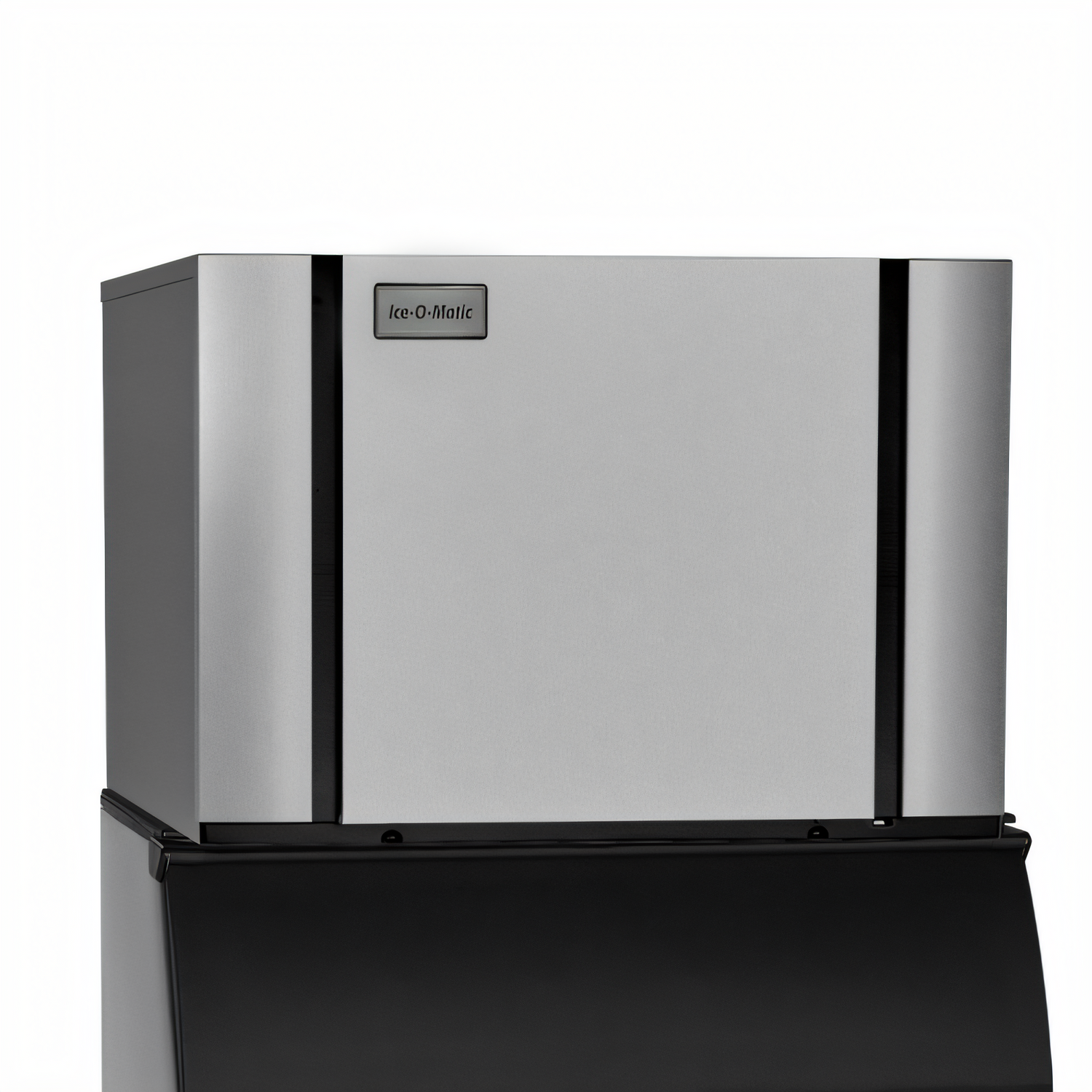

Elevation Series™ Modular Cube Ice Maker
Ice-O-Matic model CIM1447R | Full-Cube RemoteDeliver up to 1,560 lb of pure, crystal-clear full cubes every 24 hours—all in a low-profile 26.8 inch tall chassis that slides easily under ceilings and hoods. Engineered for high-volume restaurants, hotels, convenience stores and banquet facilities, the Elevation Series™ puts sanitation, serviceability and efficiency first so you can focus on your guests, not your ice machine.
Why you’ll love it

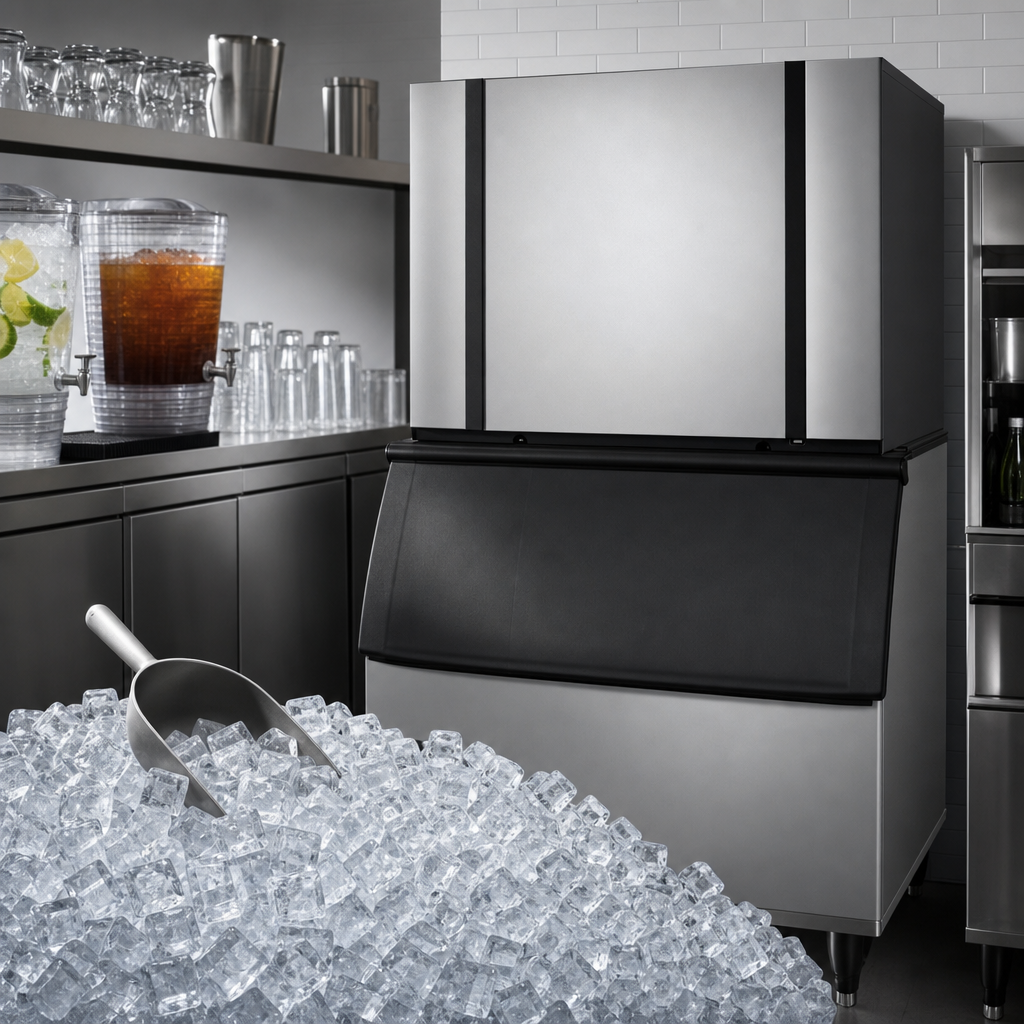

- Massive output – 1,560 lb/day at 70 °F air / 50 °F water (1,340 lb at 90 °F/70 °F).
- Dual-exhaust design – Top or side hot-air discharge offers flexible installation in tight locations.
- Remote air-cooled – Pairs with Ice-O-Matic RCA-3061 remote condenser (sold separately) to move heat and noise outdoors.
- Pure Ice® antimicrobial protection is molded directly into food-zone components to inhibit bacteria for the life of the unit.
- One-touch sanitize & descale cycles plus dishwasher-safe food-zone parts slash cleaning time.
- LED status display gives at-a-glance machine health and maintenance reminders.
- Harvest Assist technology reduces energy use while maintaining maximum production.
- Rugged stainless-steel cabinet with fingerprint-resistant front and nickel-plated evaporator plates for long-term reliability.
- Industry-leading warranty – 3 yr parts & labor, 5 yr parts on evaporator & compressor, 7 yr parts & labor on evaporator with Ice-O-Matic water-filter program (U.S./Canada).
- cULus, NSF & CE listed; refrigerant R-404A.
At-a-glance specifications
| Ice type | Full cube, ⅞" x ⅞" x ⅞" (22 × 22 × 22 mm) |
|---|---|
| Daily production* | 1,560 lb (708 kg) @ 70 °F air / 50 °F water 1,340 lb (608 kg) @ 90 °F / 70 °F |
| Energy use | 4.3 kWh per 100 lb of ice |
| Water use | 15 gal potable water per 100 lb of ice |
| Condenser | Remote air-cooled (RCA-3061 required, not included) |
| Dimensions (W×D×H) | 48.25 in × 24.25 in × 26.8 in (1,226 × 616 × 660 mm) |
| Electrical | 208-230 V / 60 Hz / 3-ph | 19 A MCA | 20 A max breaker |
| Refrigerant | R-404A |
| Certifications | cULus, NSF, CE |
| Replacement for | Ice-O-Matic ICE1407FR |
*Production values are approximate. Actual capacity will vary based on installation conditions.

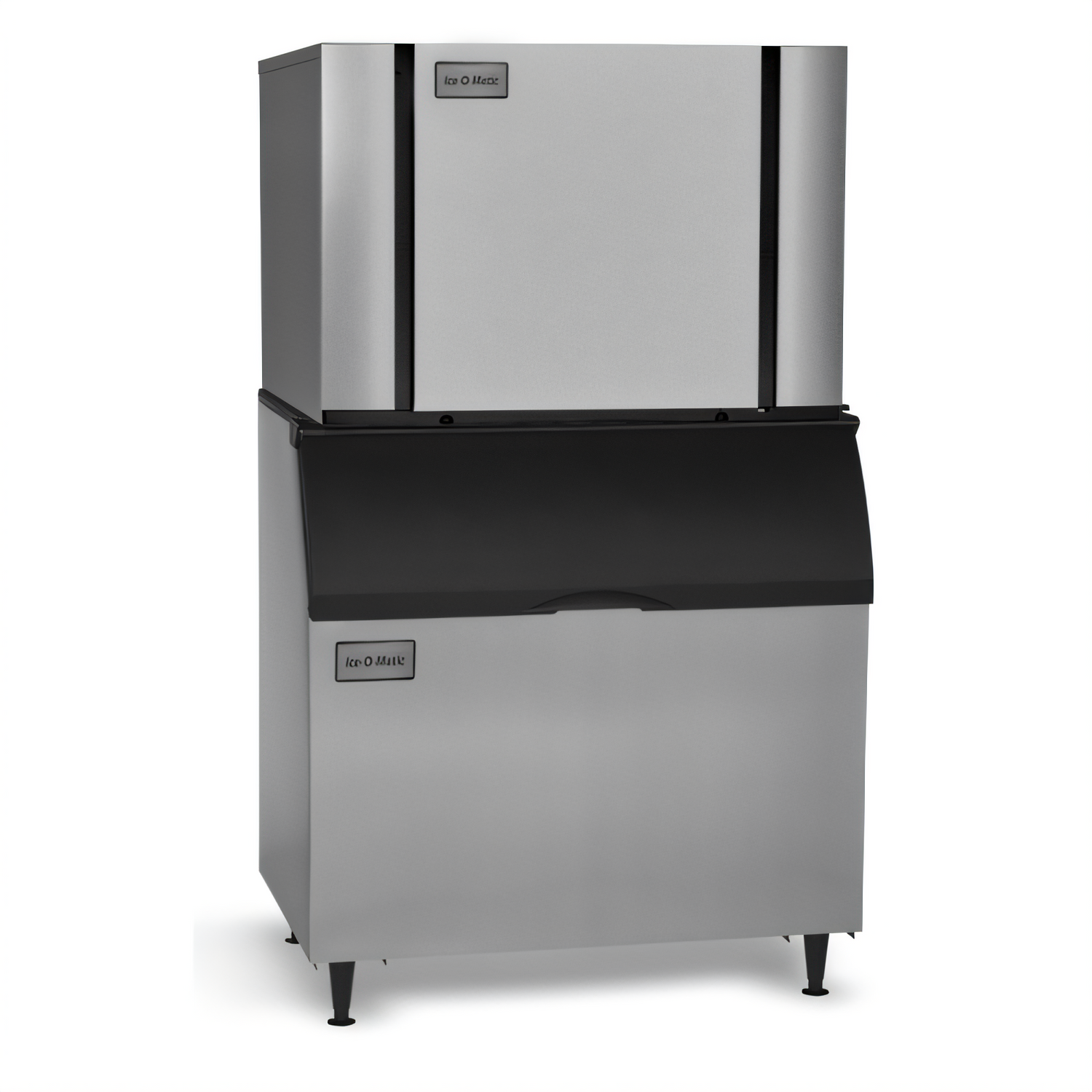

Pair it with the right storage bin
Recommended Ice-O-Matic slope-front bins: B55PS (510 lb), B110PS (854 lb), or any 48-inch wide upright bin (B1000-48, B1300-48, B1325-60, B1600-60). Adapter kits may be required—see bin chart or contact us for details.
Included with your purchase
- Elevation Series CIM1447R ice-maker head
- Factory-installed PURE ICE® antimicrobial protection
- Installation & operation manual
- 3-year parts & labor warranty registration
Need help planning your ice system? Our food-service experts are ready—just click the “Ask a Question” link or call us for fast, friendly support.
