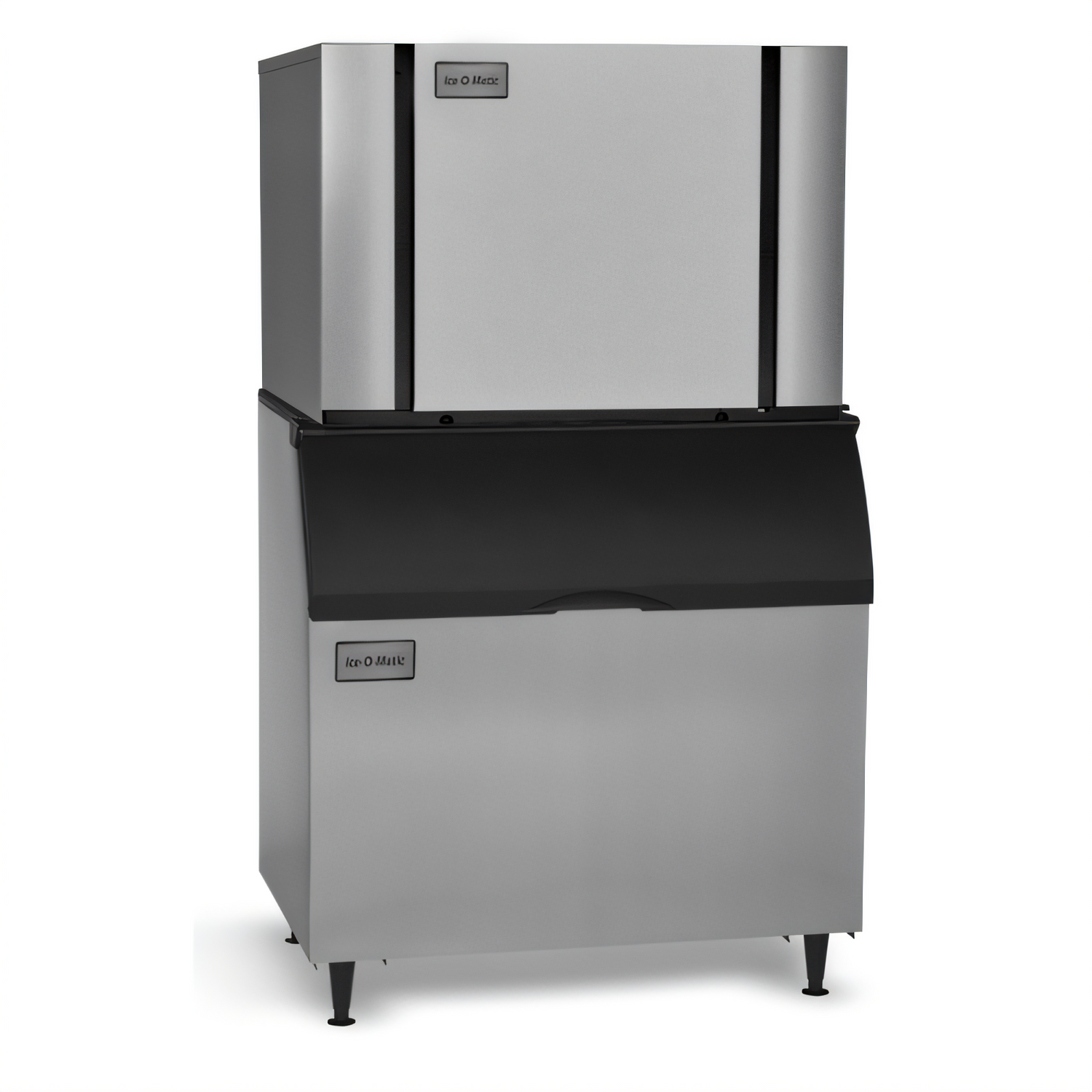

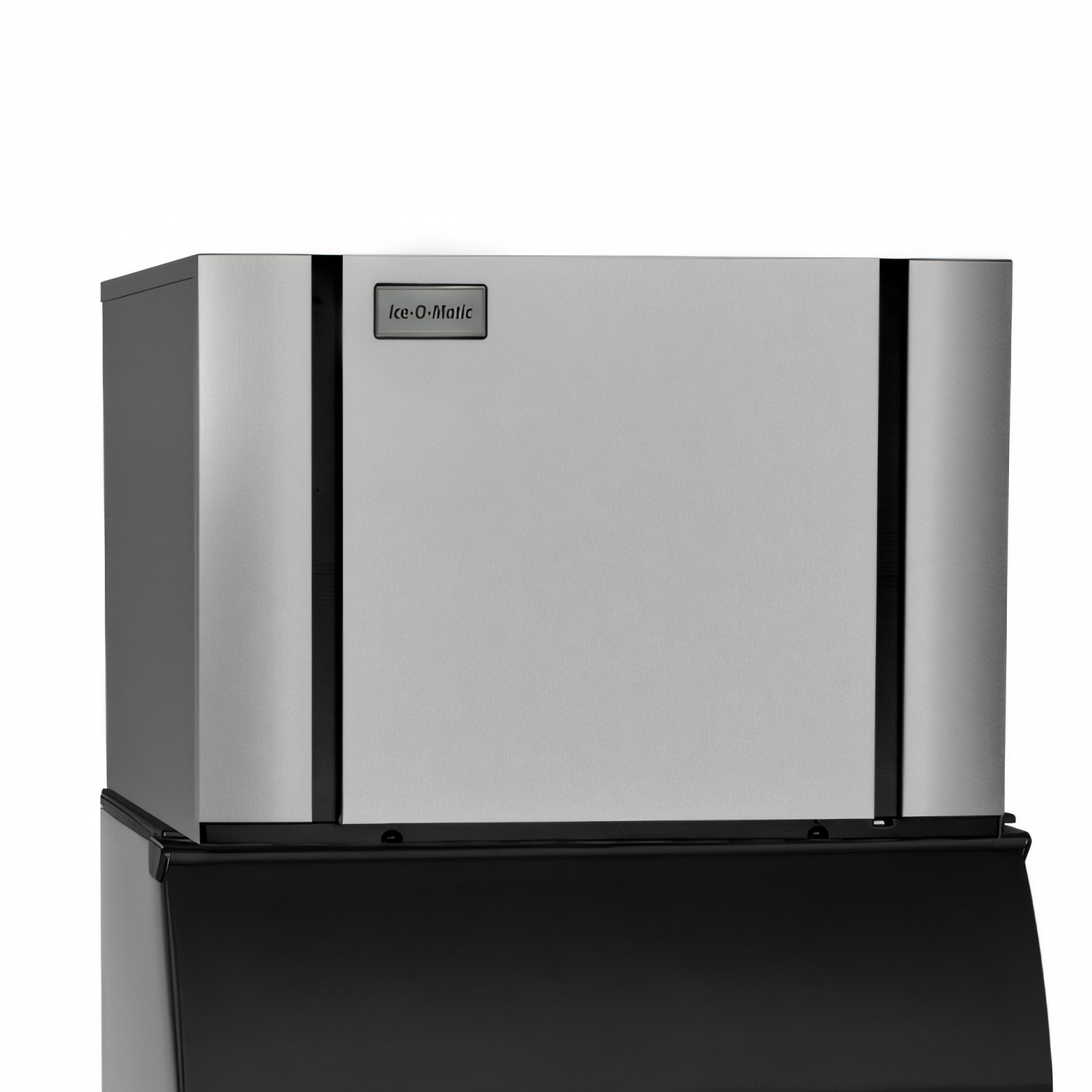

Ice-O-Matic Elevation Series 48-Inch Water-Cooled Modular Half-Size Cube Ice Maker

Self-Contained Refrigeration, Dual Exhaust Top/Side Discharge, Up to 1,560 lb/Day

Built for high-volume service, this modular ice maker delivers dependable half-size cube production with antimicrobial protection, easy-clean controls, and installation-friendly dual exhaust discharge.

  • Produces up to 1,560 lb of half-size cube ice per day under 70°F air / 50°F water conditions.
  • Water-cooled, self-contained refrigeration helps support consistent performance in demanding kitchens and bars.
  • PURE ICE built-in antimicrobial protection helps inhibit bacteria growth on ice maker surfaces.
  • Harvest Assist and electroless nickel-plated evaporator plates are designed to improve efficiency and reliability.
  • LED status display plus one-touch sanitize/descaling controls make daily operation and maintenance easier.
  • Dishwasher-safe food-zone components, stainless steel construction, and fingerprint-proof plastic add durability and convenience.

Overall Dimensions:

27.0"W x 51.0"D x 33.0"H

Product Weight:

311.0 lb

High Ice Production

Produces up to 1,560 lb of ice per day at 70°F air / 50°F water conditions, making it suitable for high-demand operations.

Half-Size Cube Ice

Designed to produce half-size cube ice for fast cooling and broad beverage applications.

Water-Cooled, Self-Contained Design

Water-cooled refrigeration with a self-contained condenser supports steady operation and installation flexibility.

Dual Exhaust Discharge

Top and side air discharge provides more options when planning the installation layout.

PURE ICE Antimicrobial Protection

Built-in antimicrobial protection helps inhibit bacteria growth on ice maker surfaces for the life of the machine.

Harvest Assist Technology

Helps maintain consistent ice production while reducing energy consumption and increasing capacity.

Easy Maintenance Controls

LED status display, one-touch sanitize/descaling controls, and dishwasher-safe food-zone components simplify upkeep.

Durable Construction

Corrosion-resistant stainless steel construction, fingerprint-proof plastic, and electroless nickel-plated evaporator plates are built for long-term reliability.

Type Cube Ice Maker
Style Modular
Ice Type Half Size Cube
Capacity 1,560 lb Per 24 Hours
Refrigeration Type Self-Contained
Condenser Type Water Cooled
Material Stainless Steel
Controls Digital
Min Ampacity 3.9 Amps
Breaker Size 30 Amps
Refrigerant Type R404A
Water Connection Required
Drain Connection Required
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 3/4 Inch FPT
Condenser Water Inlet Size 3/8 Inch FPT
Condenser Water Outlet Size 1/2 Inch FPT
Shipping Width 27 Inches
Shipping Depth 51 Inches
Shipping Height 33 Inches
Shipping Weight 311 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Slope front storage bins PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It produces half-size cube ice.
It produces up to 1,560 lb of ice per day at 70°F air / 50°F water conditions.
Yes. This model uses water-cooled, self-contained refrigeration with a dual exhaust discharge design.
It includes an LED status display, one-touch sanitize/descaling controls, and dishwasher-safe food-zone components.
The documentation lists an optional IFQ2-XL manifold system and IOMQXL replacement filter, plus a Safelce purification system add-on option.
The commercial warranty is 3 years parts and labor on the ice maker, 5 years parts on the evaporator and compressor, and 7 years parts and labor on the evaporator when enrolled in the filter program.
