Ice-O-Matic CIM1446HR Elevation Series™ Ice Machines
Description
Ice-O-Matic Elevation Series™ Modular Cube Ice Maker – CIM1447R
Remote Air-Cooled • Half-Cube • 1,560 lb / 24 hr • 48″ WideEngineered for high-volume food-service, the Elevation Series™ CIM1447R pumps out more than three-quarters of a ton of crystal-clear half-cube ice every day, while a remote condenser (sold separately) keeps heat and noise outside the kitchen.
Why You’ll Love It

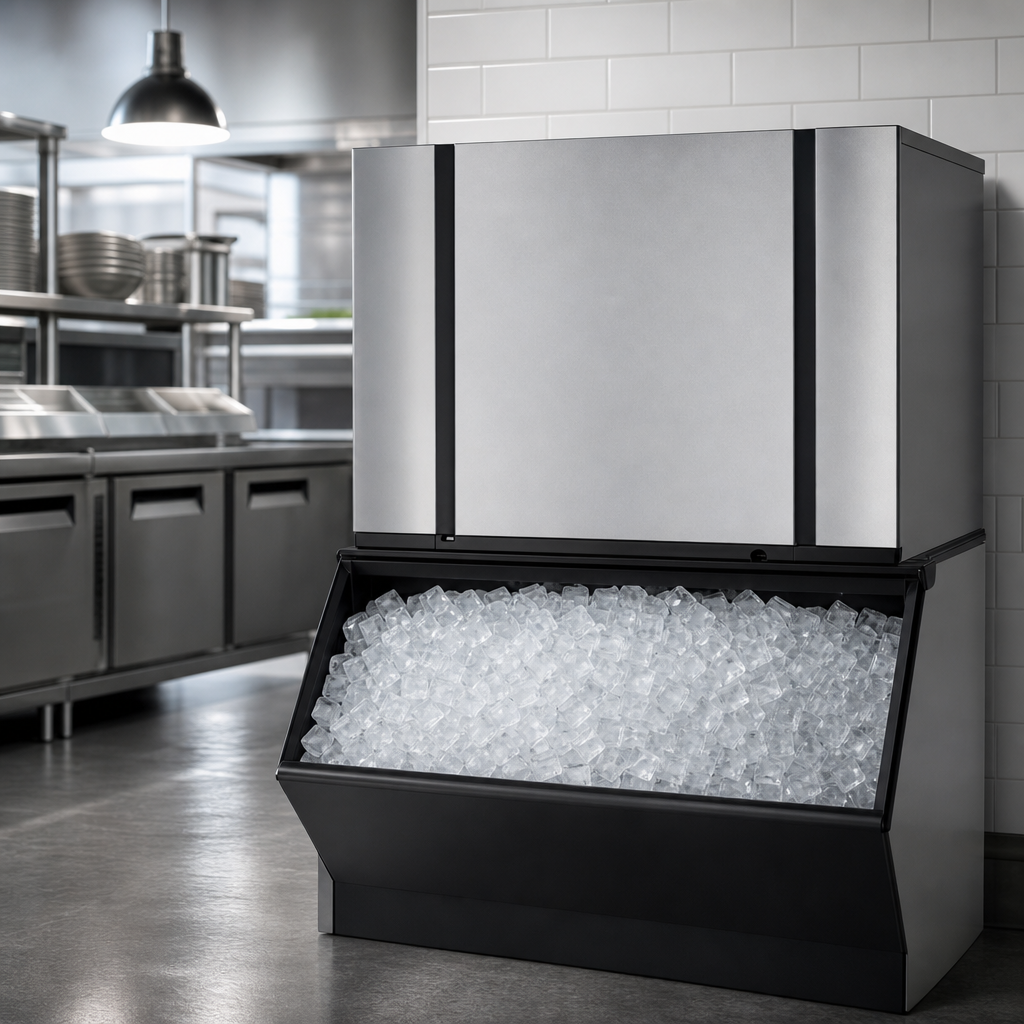

- High-capacity production: up to 1,560 lb (708 kg) per 24 hr at 70 °F air / 50 °F water.
- Remote condenser ready: pairs with Ice-O-Matic RCA-3061 to lower utility costs and improve kitchen comfort.
- Space-saving 26.8″ profile with dual top/side air discharge for unmatched installation flexibility.
- Pure Ice® antimicrobial protection permanently molded into key components to inhibit bacteria growth.
- Snap-out, dishwasher-safe food-zone parts plus one-touch sanitize & descaling for effortless cleaning.
- Harvest Assist shortens every cycle, boosting production while trimming energy use.
- Rugged nickel-plated evaporator plates, stainless-steel cabinet and fingerprint-resistant plastic trim.
- Intuitive LED status lights for instant machine diagnostics.
Performance & Specs

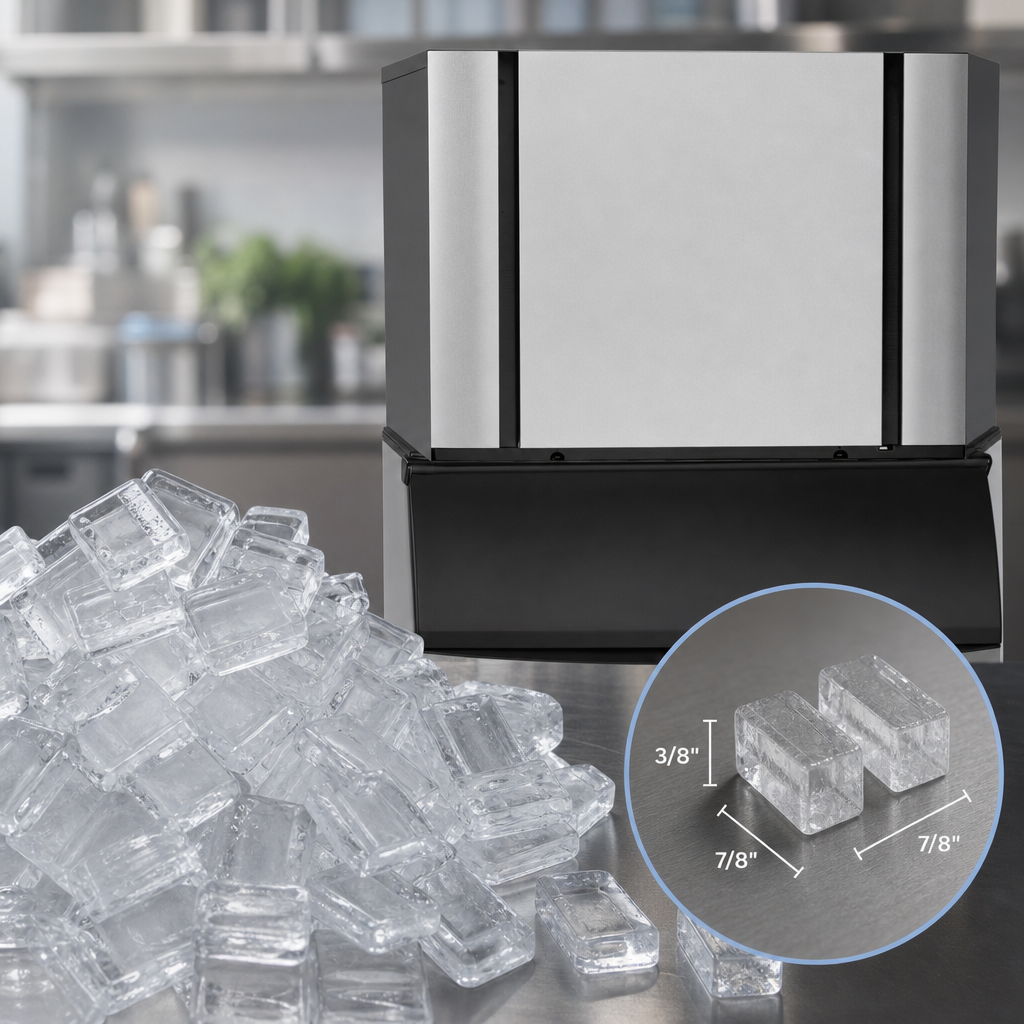

| Ice type | Half Cube – ⅜″ × ⅞″ × ⅞″ (10 × 22 × 22 mm) |
|---|---|
| 24-hr production (70 °F/50 °F) | 1,560 lb / 708 kg |
| 24-hr production (90 °F/70 °F) | 1,340 lb / 608 kg |
| Dimensions (W × D × H) | 48.25″ × 24.25″ × 26.8″ (1,226 × 616 × 660 mm) |
| Electrical | 208-230 V / 60 Hz / 3-Ph • 13.6 A • 20 A breaker |
| Energy use | 4.3 kWh / 100 lb ice |
| Potable water use | 15 gal / 100 lb ice |
| Heat rejection | 21,000 BTU/hr (to remote condenser) |
| Refrigerant | R404A |
| Shipping weight | 280 lb / 127 kg |
| Certifications | cULus • NSF • CE |
Compatible 48″ Ice Storage Bins
- B1000-48 – 1,000 lb capacity
- B1300-48 – 1,320 lb capacity
- B1325-60 – 1,325 lb capacity (remote model recommended)
- B1600-60 – 1,660 lb capacity (remote model recommended)
Warranty
3-year parts & labor on the entire machine, 5-year parts on the evaporator & compressor, and an industry-leading 7-year parts & labor evaporator warranty when installed with a genuine Ice-O-Matic water filter and registered in the filter program (U.S. & Canada).
Popular Options & Accessories
- RCA-3061 remote condenser – required for operation (line-set & grill guard available).
- IFQ2-XL filter manifold + IOMQXL replacement cartridges – improve taste and extend warranty.
- SafeIce™ Purification System – ozone-based add-on destroys viruses, mold and odors.
- Adapter tops for non-Ice-O-Matic bins or beverage dispensers.
