Ice-O-Matic

Ice-O-Matic CIM1446HA Elevation Series™ Ice Machines

SKU: CIM1446HA
$8,554.00
/each
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Ice-O-Matic New Arrivals

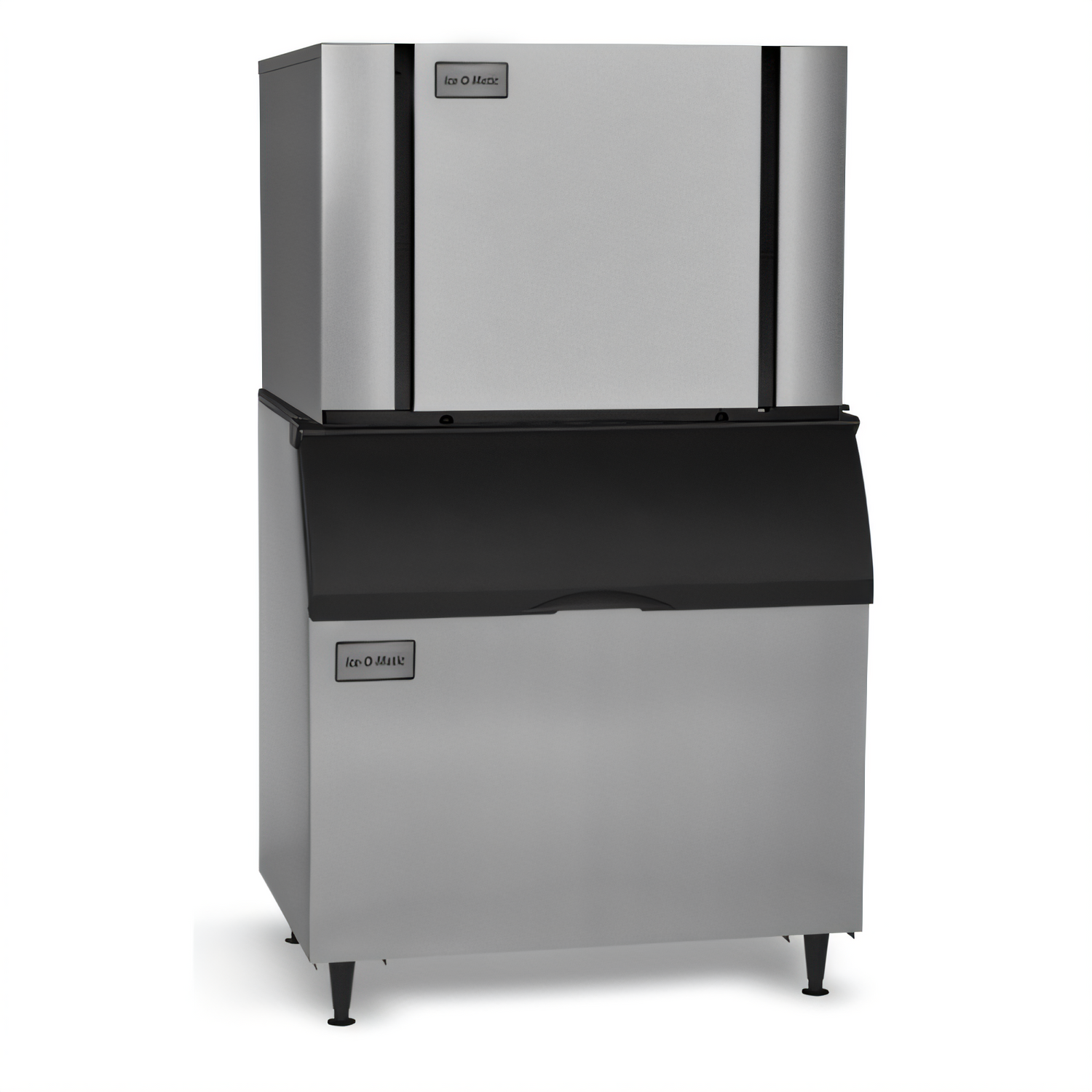

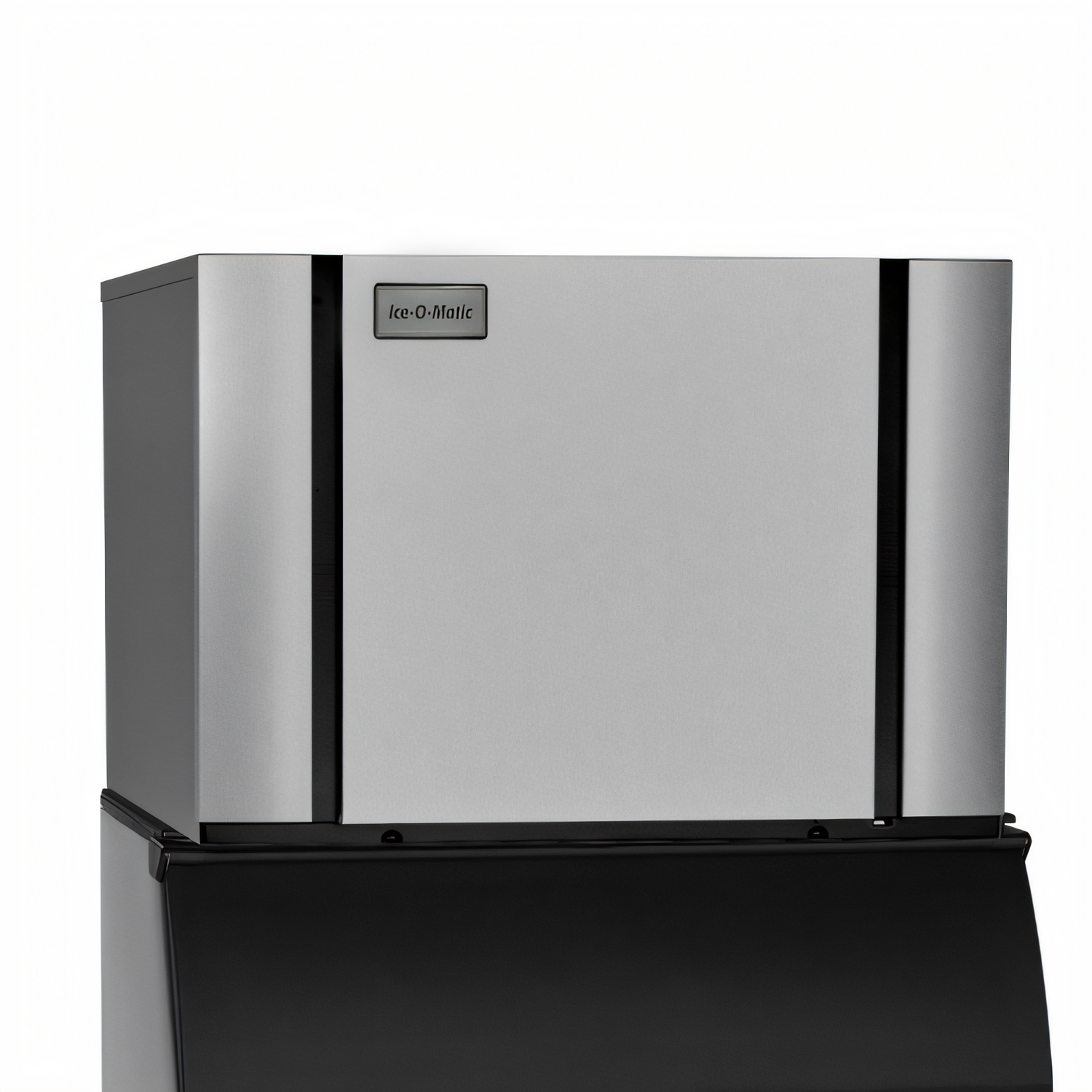

Ice-O-Matic Elevation Series™ CIM1447A Modular Cube Ice Maker

Half Cube • Air-Cooled • 1,560 lb / 24 hr Production

Built for the busiest bars, restaurants and institutions, the 48-inch Elevation Series™ CIM1447A cranks out a mountain of crystal-clear half-cube ice while making everyday maintenance almost effortless.

Why You’ll Love It
  • Produces up to 1,560 lb (771 kg) of ice every 24 hours at 70 °F air / 50 °F water.
  • Dual top or side exhaust lets you position the head tight against walls or ceilings.
  • Patented Pure Ice® antimicrobial protection is built-in for the life of the machine.
  • Harvest Assist shortens freeze cycles, boosting output and lowering energy costs.
  • Tool-free, dishwasher-safe food-zone components snap out in seconds.
  • Intuitive LED status display plus one-touch sanitize & descale programs.
  • Space-saving 26.8"-tall design with corrosion-resistant stainless steel cabinet.
  • Electroless-nickel plated evaporator plates for exceptional durability.
Performance & Utilities
Ice style Half Cube — 3/8" × 7/8" × 7/8"
Daily production 1,560 lb @ 70 °F air / 50 °F water
Hot-weather production 1,210 lb @ 90 °F air / 70 °F water
Condenser Self-contained, air-cooled (R404A)
Voltage 208-230 V / 60 Hz / 1-phase
Minimum circuit ampacity 13.7 A
Max fuse / breaker 20 A
Water inlet 3/8" FPT (potable)
Drain 3/4" FPT
Dimensions & Clearances
Width 48.25" (1,226 mm)
Depth 24.25" (616 mm)
Height 26.8" (681 mm)
Shipping weight ≈ 310 lb (141 kg)
Air clearances 6" (152 mm) top & sides
Pair With These Ice-O-Matic Bins

B55PS • B700-30 • B1000-48 • B110PS • B1300-48 • B1325-60 • B1600-60
(adapter kit may be required—ask your sales rep for details)

Popular Options & Accessories
  • IFQ2-XL water-filter manifold & IOMQXL cartridges—extends evaporator warranty to 7 years.
  • SafeIce™ Purification System—destroys viruses, mold and odors (factory or field install).
  • Bin adapter tops for non-standard bin widths.
Certifications & Warranty
  • cULus, NSF & CE listed.
  • 3-Year parts & labor on the entire ice maker.
  • 5-Year parts on compressor & evaporator.
  • 7-Year parts & labor on evaporator when enrolled in Ice-O-Matic filter program (U.S./Canada).
Installation Note: Air-cooled units require at least 6" (152 mm) of unobstructed clearance for both intake and exhaust. Always install with a potable-water filtration system and in accordance with local codes.

Direct replacement for Ice-O-Matic model ICE1406HA.

Overall Dimensions:

27.0"W x 51.0"D x 33.0"H

Product Weight:

318.0 lb
Manufacturer Ice-O-Matic
Brand name Elevation Series™
Certifications ["NSF", "CE", "cULus"]
Height 33.0in
Width 27.0in
Depth 51.0in
Shipping Weight 318.0lbs
Ice Type half size / half dice cubes
Width (side - side) 40 - 49" wide
Refrigeration self-contained refrigeration
Condenser Type air-cooled
Production per 24 hr 1501 - 1600 lb = 682 - 726 kg
Specifications Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 48" W, approximately 1560 lb production/24 hours at 70°/50° (1210 lb at 90°/70°), half size cube, PURE ICE® built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE (Replaces ICE1406HA)

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Slope front storage bins PDF Download PDF Warranty sheet PDF Download
